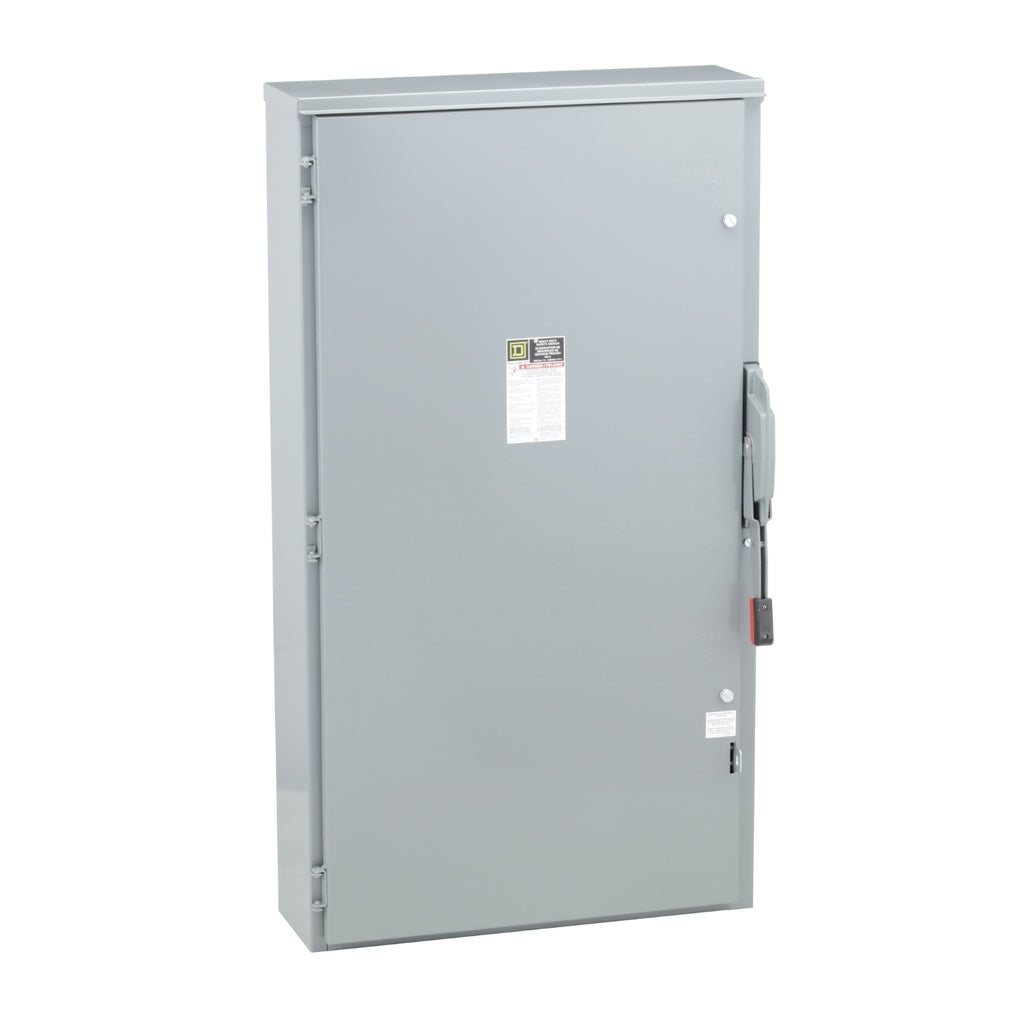

H366NR - Schneider Electric - Square D Safety Switch Heavy Duty Fusible 3 Pole 4 Wire 600VAC/DC 600A Type 3R with Neutral
The Square D(TM) by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 600A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of galvannealed steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Fusible disconnect |
| Factory Installed Neutral | Neutral (factory installed) |
| Number of Poles | 3 |
| Current Rating | 600 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 3R galvannealed steel |
| Standard Motor Power Rating | 150 hp at 480 V AC 50-60 Hz for 3 phase motors 400 hp at 480 V AC 50-60 Hz for 3 phase motors 200 hp at 600 V AC 50-60 Hz for 3 phase motors 500 hp at 600 V AC 50-60 Hz for 3 phase motors 50 hp at 250 V DC 50 hp at 600 V DC |
| Short-circuit current | 10 kA for H or K 200 kA for R or J |
|---|---|
| Fuse type | H or K R or J |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 4-wire (3PH + N) |
| Wire Size | AWG 3/0...500 kcmil copper or aluminium |
| Tightening torque | 375 lbf.in (42.4 N.m) (AWG 3/0...500 kcmil) |
| Depth | 10.13 in (257.30 mm) |
| Width | 27.88 in (708.15 mm) |
| Height | 50.31 in (1277.87 mm) |
| Net Weight | 201.06 lb(US) (91.2 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US10DE100054 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901195825 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.4 in (34.0 cm) |
| Package 1 Width | 28.3 in (72.0 cm) |
| Package 1 Length | 51.0 in (132.0 cm) |
| Package 1 Weight | 201.00002 lb(US) (91.172 kg) |
