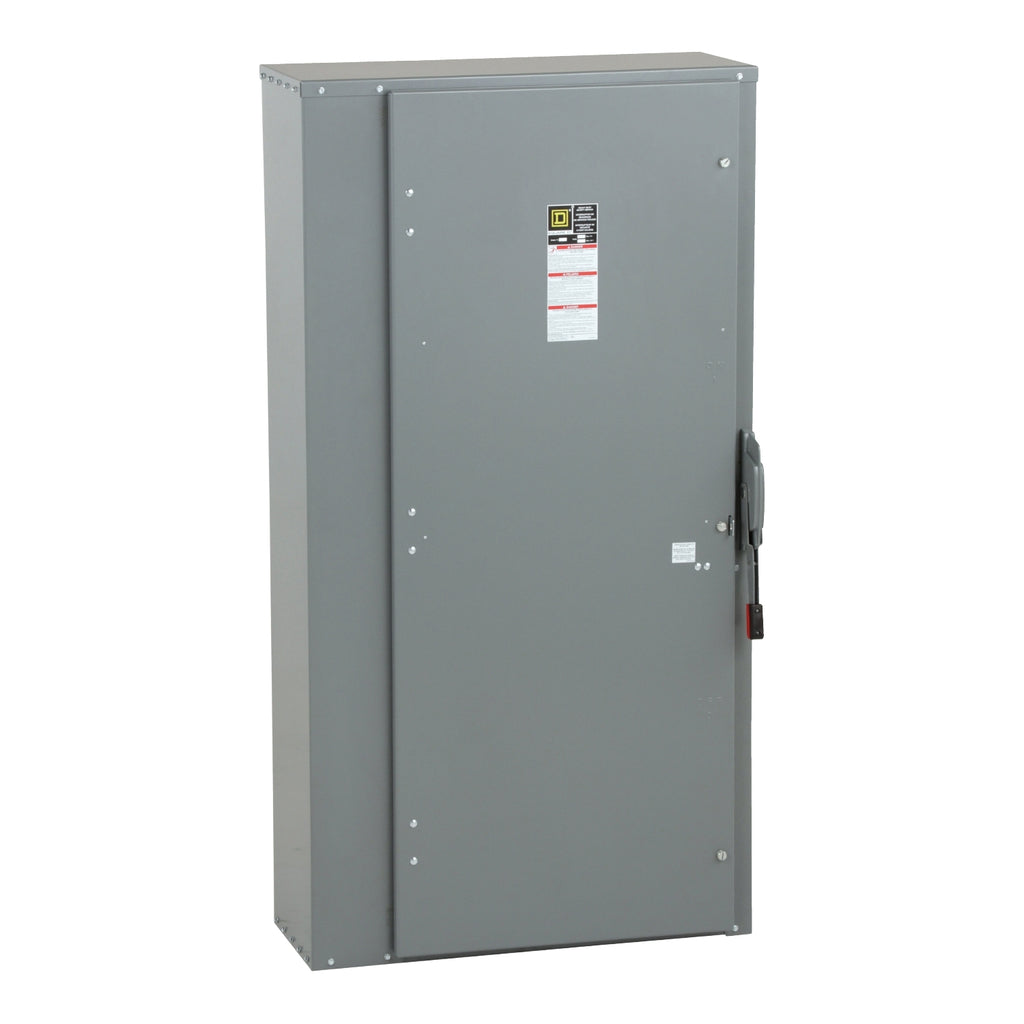

H367N - Schneider Electric - Square D Safety Switch Heavy Duty Fusible 800A 4 Wire 3 Pole 1 Neutral 500HP 600VAC/DC NEMA 1
The Square D(TM) by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 800A with voltage of 600VAC and 600VDC. This switch is rated at 200hp for 1 phase and 500hp for 3 phase with standard fuses. For time delay fuses, this switch is also rated at 250hp for 1 phase and 500hp for 3 phase. For 600VDC, it also is rated at 50hp. This unit is in a Type 1 enclosure includes a factory installed neutral. It is UL listed with the file E2875.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Fusible disconnect |
| Factory Installed Neutral | Neutral (factory installed) |
| Number of Poles | 3 |
| Current Rating | 800 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 1 steel |
| Standard Motor Power Rating | 200 hp at 480 V AC 50-60 Hz for 3 phase motors 500 hp at 480 V AC 50-60 Hz for 3 phase motors 250 hp at 600 V AC 50-60 Hz for 3 phase motors 500 hp at 600 V AC 50-60 Hz for 3 phase motors 50 hp at 600 V DC |
| Short-circuit current | 200 kA maximum for L |
|---|---|
| Fuse type | L |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 4-wire (3PH + N) |
| Wire Size | AWG 3/0...750 kcmil copper or aluminium |
| Tightening torque | 375 lbf.in (42.4 N.m) 0.13...0.6 in (85.01...380 mm) (AWG 3/0...750 kcmil) |
| Depth | 17.75 in (450.85 mm) |
| Width | 36.62 in (930.15 mm) |
| Height | 69.13 in (1755.90 mm) |
| Product Weight | 371.04 lb(US) (168.3 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US10DE100053 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901442417 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 73.800 in (187.452 cm) |
| Package 1 Width | 29.800 in (75.692 cm) |
| Package 1 Length | 38.000 in (96.520 cm) |
| Package weight(Lbs) | 373.0004 lb(US) (169.190 kg) |
