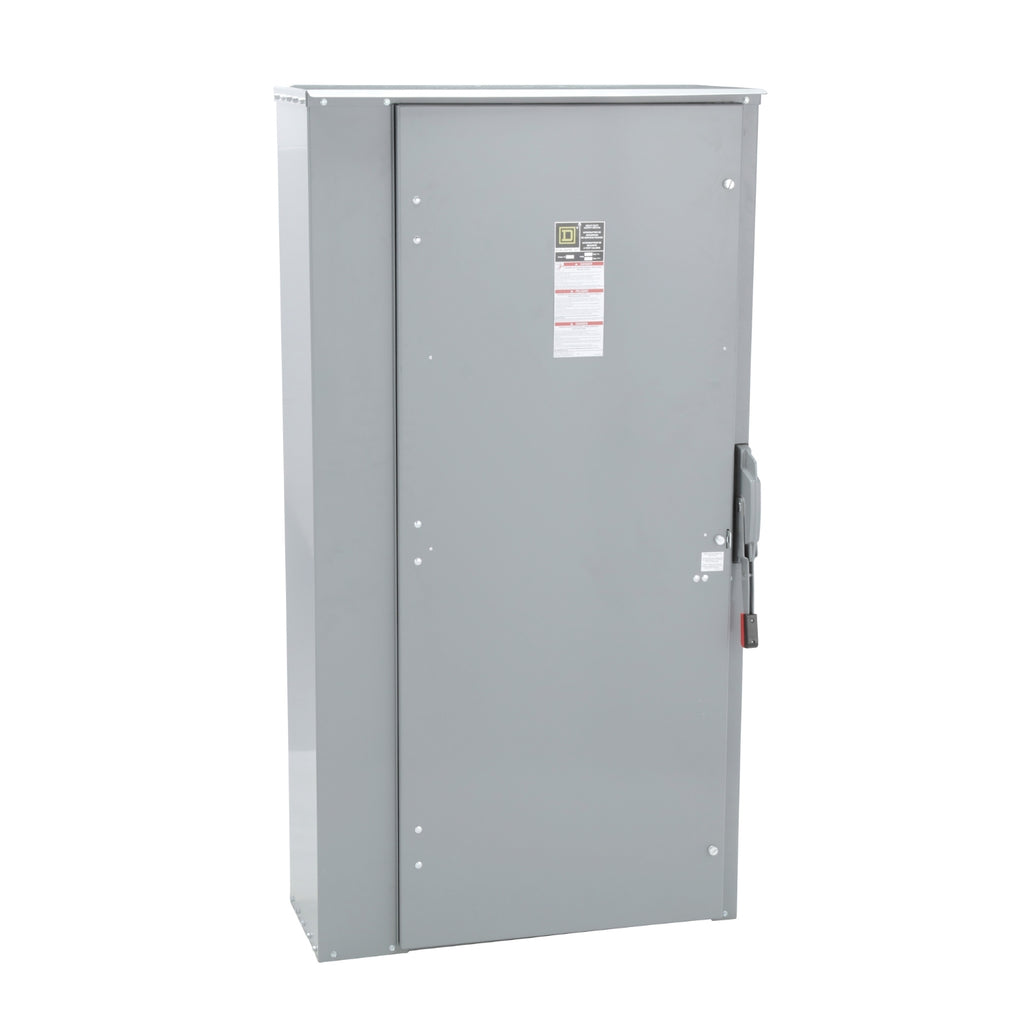

H367NR - Schneider Electric - Square D Safety Switch Heavy Duty Fusible 3 Pole 4 Wire 600VAC/DC 800A Type 3R with Neutral
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 800A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of galvannealed steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Fusible disconnect |
| Factory Installed Neutral | Neutral (factory installed) |
| Number of Poles | 3 |
| Current Rating | 800 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 3R galvannealed steel |
| Standard Motor Power Rating | 200 hp at 480 V AC 50-60 Hz for 3 phase motors 500 hp at 480 V AC 50-60 Hz for 3 phase motors 250 hp at 600 V AC 50-60 Hz for 3 phase motors 500 hp at 600 V AC 50-60 Hz for 3 phase motors 50 hp at 600 V DC |
| Short-circuit current | 200 kA maximum for L |
|---|---|
| Fuse type | L |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 4-wire (3PH + N) |
| Wire Size | AWG 3/0...750 kcmil copper or aluminium |
| Tightening torque | 375 lbf.in (42.4 N.m) 0.13…0.6 in² (85.01…380 mm²) (AWG 3/0...750 kcmil) |
| Depth | 17.75 in (450.85 mm) |
| Width | 36.62 in (930.15 mm) |
| Height | 69.13 in (1755.90 mm) |
| Net Weight | 382.9 lb(US) (173.7 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US10DE100054 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901442431 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 73.800 in (187.452 cm) |
| Package 1 Width | 30.000 in (76.200 cm) |
| Package 1 Length | 38.000 in (96.520 cm) |
| Package 1 Weight | 365.000 lb(US) (165.561 kg) |
