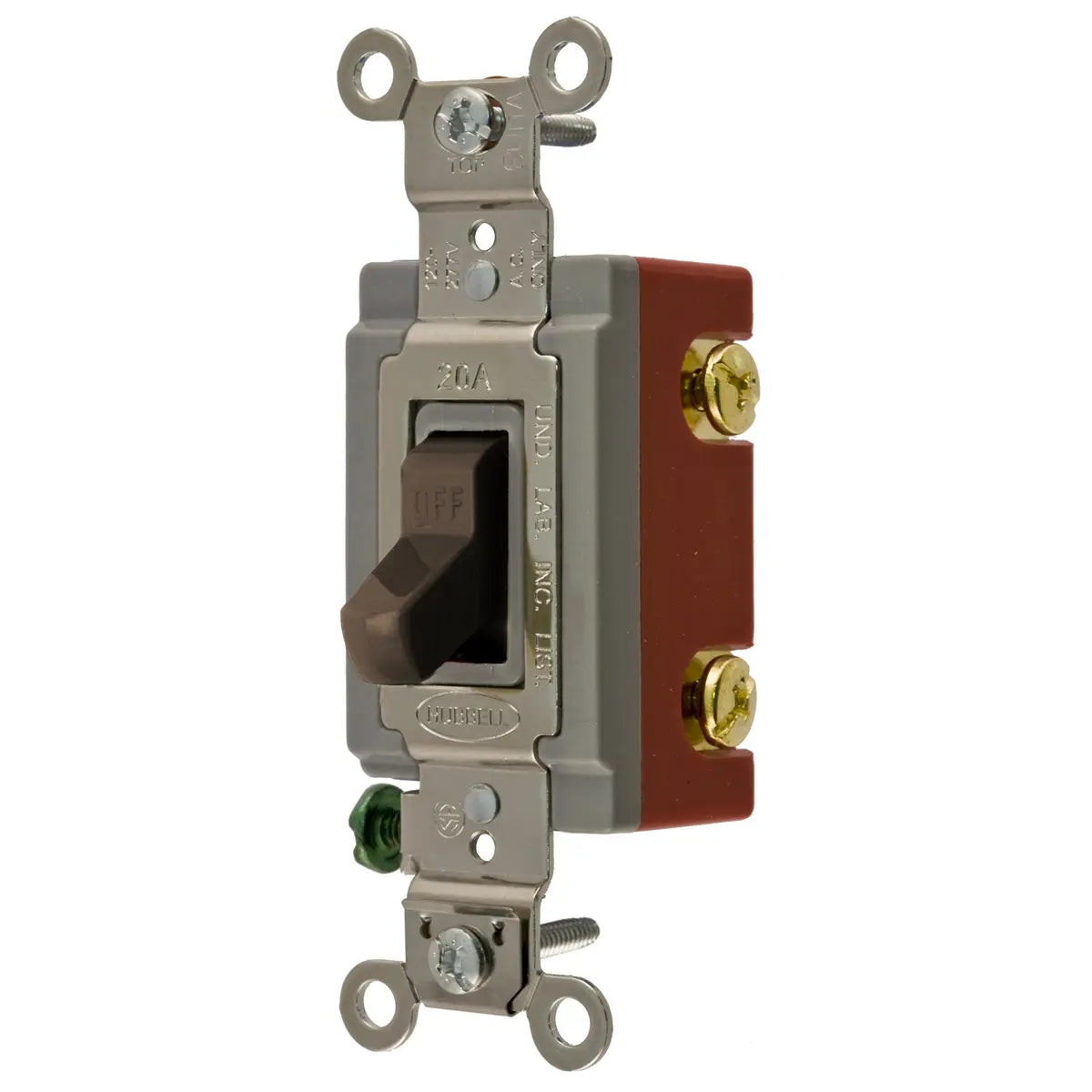

HBL1221 - Hubbell Wiring Device-Kellems - 20A 120/277V AC Single-Pole Back and Side Wired Toggle Switch
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Brown Toggle
- Large brass binding head screws with deep slots
- Abuse-resistant nylon toggle
- Strip gauge for accurate wiring
GENERAL SPECIFICATIONS
| Application |
Back and Side Wired |
| Catalog Number |
HBL1221 |
| Color |
Brown |
| EU RoHS Indicator |
No |
| Number of Poles |
Single Pole |
| Operating Temperature |
Max: 75 degC, Min: -40 degC without impact |
| Performance |
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
- Electrical - Max. Continuous Current - 20A
- Electrical - Max. Working Voltage - 277V AC
- Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
- Electrical - Temperature Rise - 30 degC maximum at rated current
- Environmental - Flammability - UL 94V-2
- Environmental - Operating Temperature - Max. continuous: 75 degC, Min. continuous: -40 degC without impact
- Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
|
| Series |
Extra Heavy Duty |
| Specifications |
- Base Material - Thermoset, Red
- Contacts - Silver Alloy
- Ground Screw - Brass (Green)
- Terminal Screws - Brass
- Toggle Material - Nylon
- Top Material - Thermoset
|
| Style |
Single Pole |
| Type |
Toggle |
| UPC |
783585431321 |
Dimensions
| Length |
4.06 in |
| Width |
1.31 in |
| Height |
1.87 in |
| Weight |
0.2 lb |
| Full Size |
4.06 in x 1.31 in x 1.87 in |
Electrical Ratings
| Amperage Rating |
20 A |
| Current / Amperage |
20 A |
| Current Rating |
20 A |
| Voltage Rating |
120-277 VAC |
| Voltage Rating Description |
120- 277 VAC |
| Dielectric Strength |
Withstands 1500V AC minimum for 1 minute |
| Temperature Rise - Max. |
30 degC maximum at rated current |
| Connectivity |
Back and Side Wired |
Conductor Related
| Wire Size |
#14 AWG to #10 AWG |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
4500 |
PRODUCT DATASHEET
Wiring HBL1221 Specification Sheet
