HBL1221IL - Hubbell Wiring Device-Kellems - 20A 120/277V AC Illuminated Single-Pole Back and Side Wired Toggle Switch
Roll over image to zoom in Click on image to zoom
HBL1221IL - Hubbell Wiring Device-Kellems - 20A 120/277V AC Illuminated Single-Pole Back and Side Wired Toggle Switch

HBL1221IL - Hubbell Wiring Device-Kellems - 20A 120/277V AC Illuminated Single-Pole Back and Side Wired Toggle Switch

HubbellSKU: HUBHBL1221IL
Price:
$53.99
Stock:
Sold out

Description

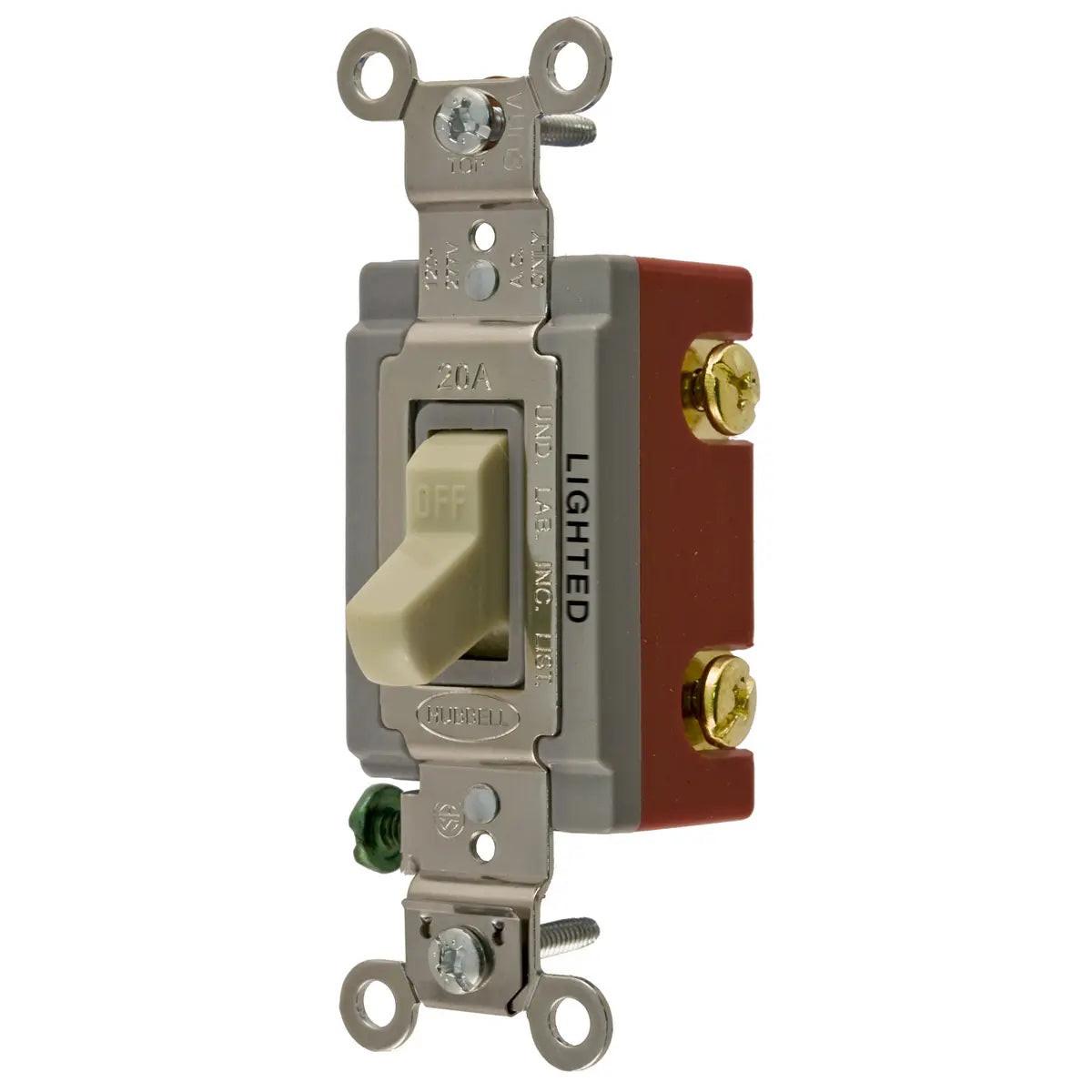

HBL1221IL - Hubbell Wiring Device-Kellems - 20A 120/277V AC Illuminated Single-Pole Back and Side Wired Toggle Switch

Switches and Lighting Controls, Industrial Grade, Illuminated Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Ivory Toggle

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring

Illuminated Toggle

GENERAL SPECIFICATIONS

Application Back and Side Wired
Catalog Number HBL1221IL
Color Ivory
EU RoHS Indicator No
Indicator Light On with Load Off
Item Type Single Pole Illuminated Toggle Switch
Number of Poles Single Pole
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Series Extra Heavy Duty
Specifications
  • Base Material - Thermoset, Red
  • Contacts - Silver Alloy
  • Ground Screw - Brass (Green)
  • Terminal Screws - Brass
  • Toggle Material - Nylon
  • Top Material - Thermoset
Style Single Pole
Type Toggle
UPC 783585431406


Dimensions

Dimensions 4.06 in x 1.31 in x 1.86 in
Height 1.86 in
Length 4.06 in
Width 1.31 in
Weight 0.2 lb



Electrical Ratings

Amperage Rating 20 A
Connectivity Back and Side Wired
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 1500V AC minimum for 1 minute
Temperature Rise – Max. 30°C maximum at rated current
Voltage Rating 120–277 VAC
Voltage Rating Description 120–277 VAC



Conductor Related

Number Of Poles Single Pole
 Wire Size #14 AWG to #10 AWG



Operational

 Indicator Light On with Load Off
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire onl



Logistics

Carton Quantity 10
Pallet Quantity 4500



PRODUCT DATASHEET

Wiring HBL1221IL Specification Sheet
