HBL1221PLC - Hubbell Wiring Device-Kellems - 20A 120/277V AC Single-Pole Back and Side Wired Pilot Light Clear Toggle Switch
Roll over image to zoom in Click on image to zoom

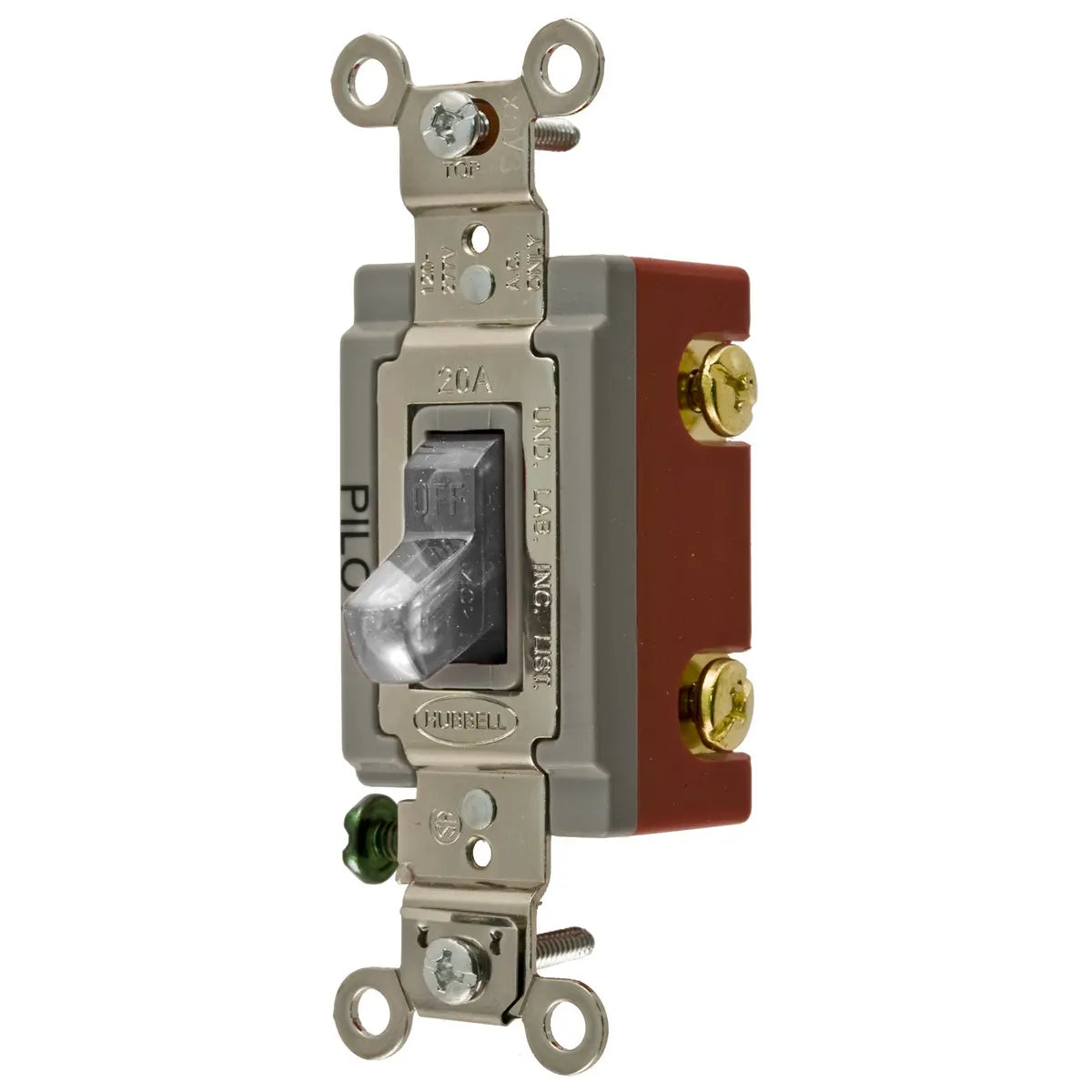

HBL1221PLC - Hubbell Wiring Device-Kellems - 20A 120/277V AC Single-Pole Back and Side Wired Pilot Light Clear Toggle Switch

HBL1221PLC - Hubbell Wiring Device-Kellems - 20A 120/277V AC Single-Pole Back and Side Wired Pilot Light Clear Toggle Switch

HubbellSKU: HUBHBL1221PLC
Price:
$71.39
Stock:
Sold out

Description

HBL1221PLC - Hubbell Wiring Device-Kellems - 20A 120/277V AC Single-Pole Back and Side Wired Pilot Light Clear Toggle Switch

Switches and Lighting Controls, Industrial Grade, Pilot Light Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Clear Toggle

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring

Pilot Light

GENERAL SPECIFICATIONS

Application Back and Side Wired
Catalog Number HBL1221PLC
Color Clear
EU RoHS Indicator No
Indicator Light On with Load Off
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Series Extra Heavy Duty
Specifications
  • Base Material - Thermoset, Red
  • Contacts - Silver Alloy
  • Ground Screw - Brass (Green)
  • Terminal Screws - Brass
  • Toggle Material - Nylon
  • Top Material - Thermoset
Style Single Pole
Type Toggle
UPC 783585431406


Dimensions

Dimensions 4.06 in x 1.31 in x 1.86 in
Height 1.86 in
Length 4.06 in
Width 1.31 in
Weight 0.2 lb



Electrical Ratings

Amperage Rating 20 A
Connectivity Back and Side Wired
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 1500V AC minimum for 1 minute
Temperature Rise – Max. 30°C maximum at rated current
Voltage Rating 120–277 VAC
Voltage Rating Description 120–277 VAC



Conductor Related

Number Of Poles Single Pole
 Wire Size #14 AWG to #10 AWG



Operational

 Indicator Light On with Load On
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only


Logistics

Carton Quantity 10



PRODUCT DATASHEET

Wiring HBL1221PLC Specification Sheet
