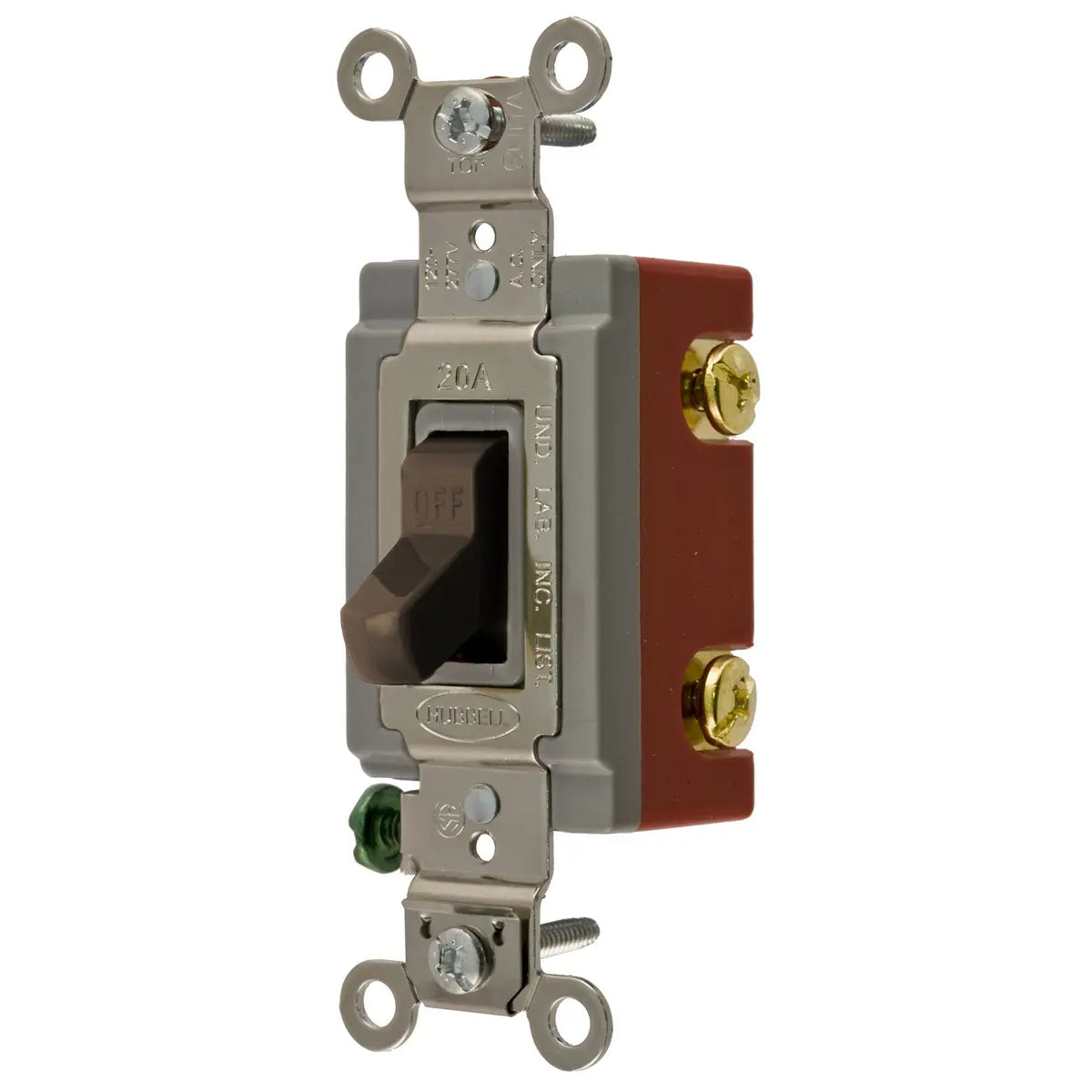

HBL1222 - Hubbell Wiring Device-Kellems - 20A 120/277V AC Double-Pole Back and Side Wired Toggle Switch
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, Brown Toggle
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
GENERAL SPECIFICATIONS
| Application |
Back and Side Wired |
| Catalog Number |
HBL1222 |
| Color |
Brown |
| EU RoHS Indicator |
No |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
|
Performance
|
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute |
| Electrical - Max. Continuous Current - 20A |
| Electrical - Max. Working Voltage - 277V AC |
| Electrical - Overload - Minimum 4.8 times rated current for 100 cycles |
| Electrical - Temperature Rise - 30 degC maximum at rated current |
| Environmental - Flammability - UL 94V-2 |
| Environmental - Operating Temperature - Max. continuous: 75 degC, Min. continuous: -40 degC without impact |
| Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Series |
Extra Heavy Duty |
|
Specifications
|
Base Material - Thermoset, Red |
| Contacts - Silver Alloy |
| Ground Screw - Brass (Green) |
| Terminal Screws - Brass |
| Toggle Material - Nylon |
| Top Material - Thermoset |
| Style |
Double Pole |
| Type |
Toggle |
| UPC |
783585431604 |
Dimensions
| Dimensions |
4.06 in x 1.31 in x 1.87 in |
| Height |
1.87 in |
| Length |
4.06 in |
| Weight |
0.2 lb |
| Width |
1.31 in |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Back and Side Wired |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 1500V AC minimum for 1 minute |
| Temperature Rise - Max. |
30 degC maximum at rated current |
| Voltage Rating |
120-277 VAC |
| Voltage Rating Description |
120-277 VAC |
Conductor Related
| Number Of Poles |
Double Pole |
| Wire Size |
#14 AWG to #10 AWG |
Operational
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
|
Performance
|
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute |
| Electrical - Max. Continuous Current - 20A |
| Electrical - Max. Working Voltage - 277V AC |
| Electrical - Overload - Minimum 4.8 times rated current for 100 cycles |
| Electrical - Temperature Rise - 30 degC maximum at rated current |
| Environmental - Flammability - UL 94V-2 |
| Environmental - Operating Temperature - Max. continuous: 75 degC, Min. continuous: -40 degC without impact |
| Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
3600 |
