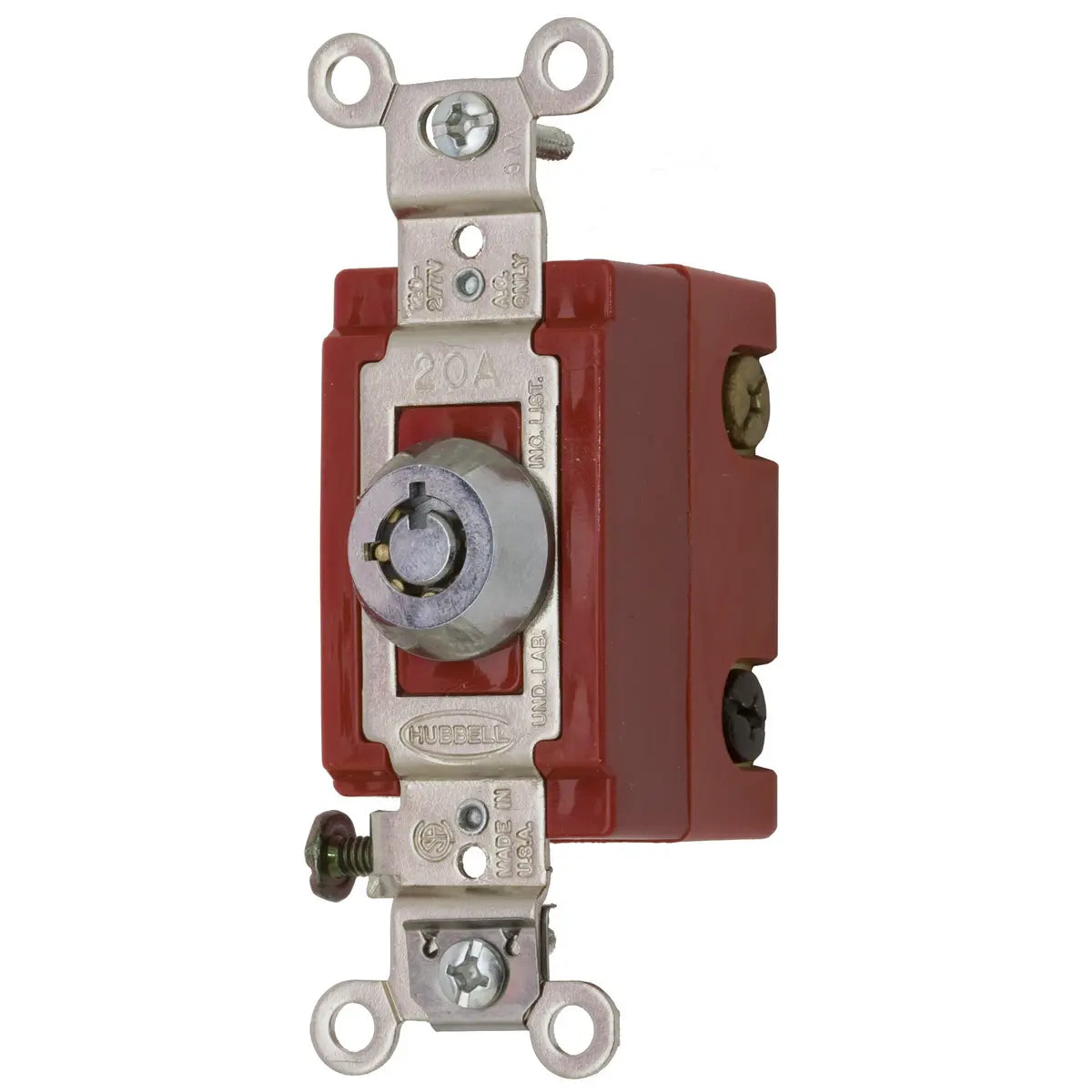

HBL1223RKL - Hubbell Wiring Device-Kellems - 20A 120/277V AC 3-Way Back and Side Wired Barrel-Key Locking Toggle Switch
Switches and Lighting Controls, Industrial Grade, Barrel Key Locking Switch, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Chrome
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
GENERAL SPECIFICATIONS
| Action |
SPDT |
| Application |
Back and Side Wired |
| Catalog Number |
HBL1223RKL |
| Color |
Chrome |
| EU RoHS Indicator |
No |
| Number of Poles |
Single Pole |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
- Electrical - Max. Continuous Current - 20A
- Electrical - Max. Working Voltage - 277V AC
- Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
- Electrical - Temperature Rise - 30 degC maximum at rated current
- Environmental - Flammability - UL 94V-2
- Environmental - Operating Temperature - Max. continuous: 75 degC, Min. continuous: -40 degC without impact
- Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
|
| Series |
Extra Heavy Duty |
| Specifications |
- Base Material - Thermoset, Red
- Contacts - Silver Alloy
- Ground Screw - Brass (Green)
- Key Guide - Chrome
- Terminal Screws - Brass
- Top Material - Thermoset
|
| Style |
Three Way |
| Type |
Locking |
| UPC |
783585431994 |
Dimensions
| Dimensions |
4.06 in x 1.25 in x 2.02 in |
| Height |
2.02 in |
| Length |
4.06 in |
| Width |
1.25 in |
| Weight |
0.2 lb |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Back and Side Wired |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 1500V AC minimum for 1 minute |
| Temperature Rise - Max. |
30 degC maximum at rated current |
| Voltage Rating |
120-277 VAC |
| Voltage Rating Description |
120-277 VAC |
Conductor Related
| Wire Size |
#14 AWG to #10 AWG |
Logistics
PRODUCT DATASHEET
Wiring HBL1223RKL Specification Sheet
