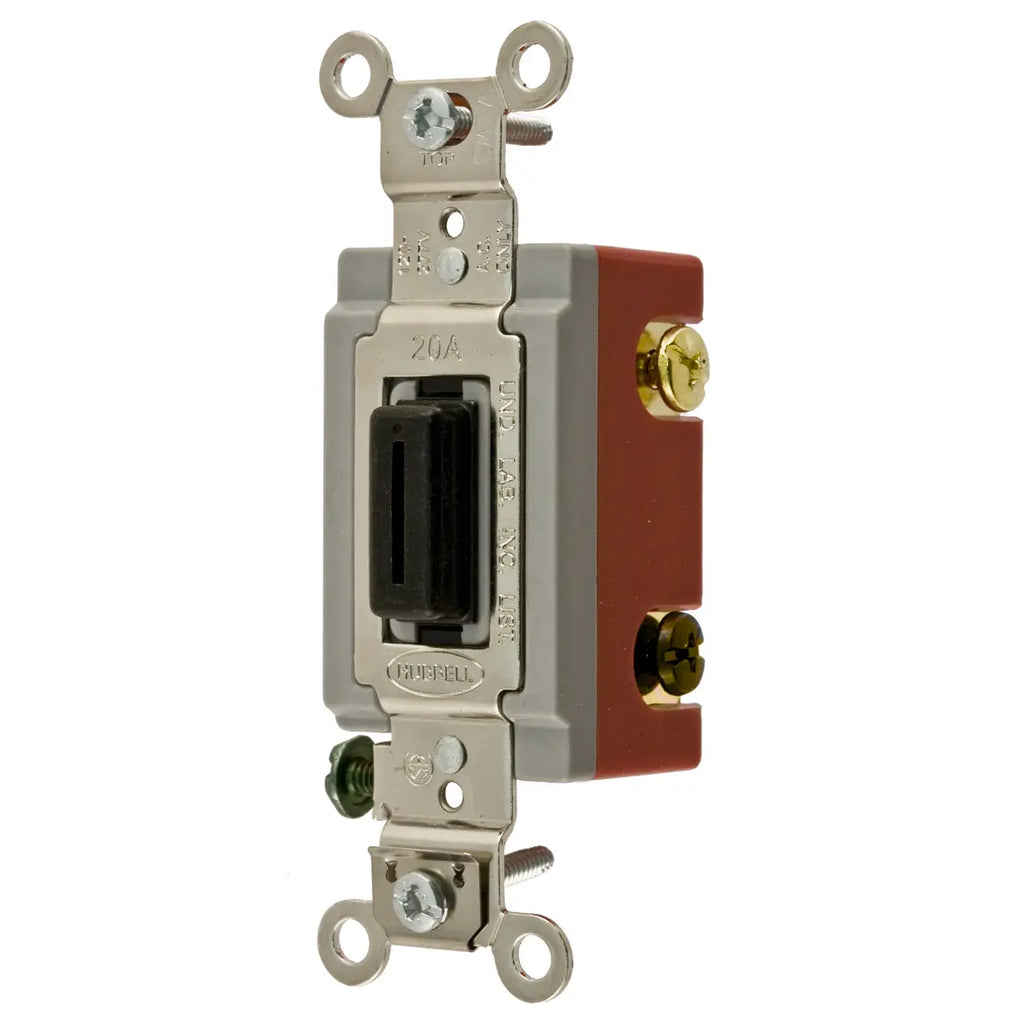

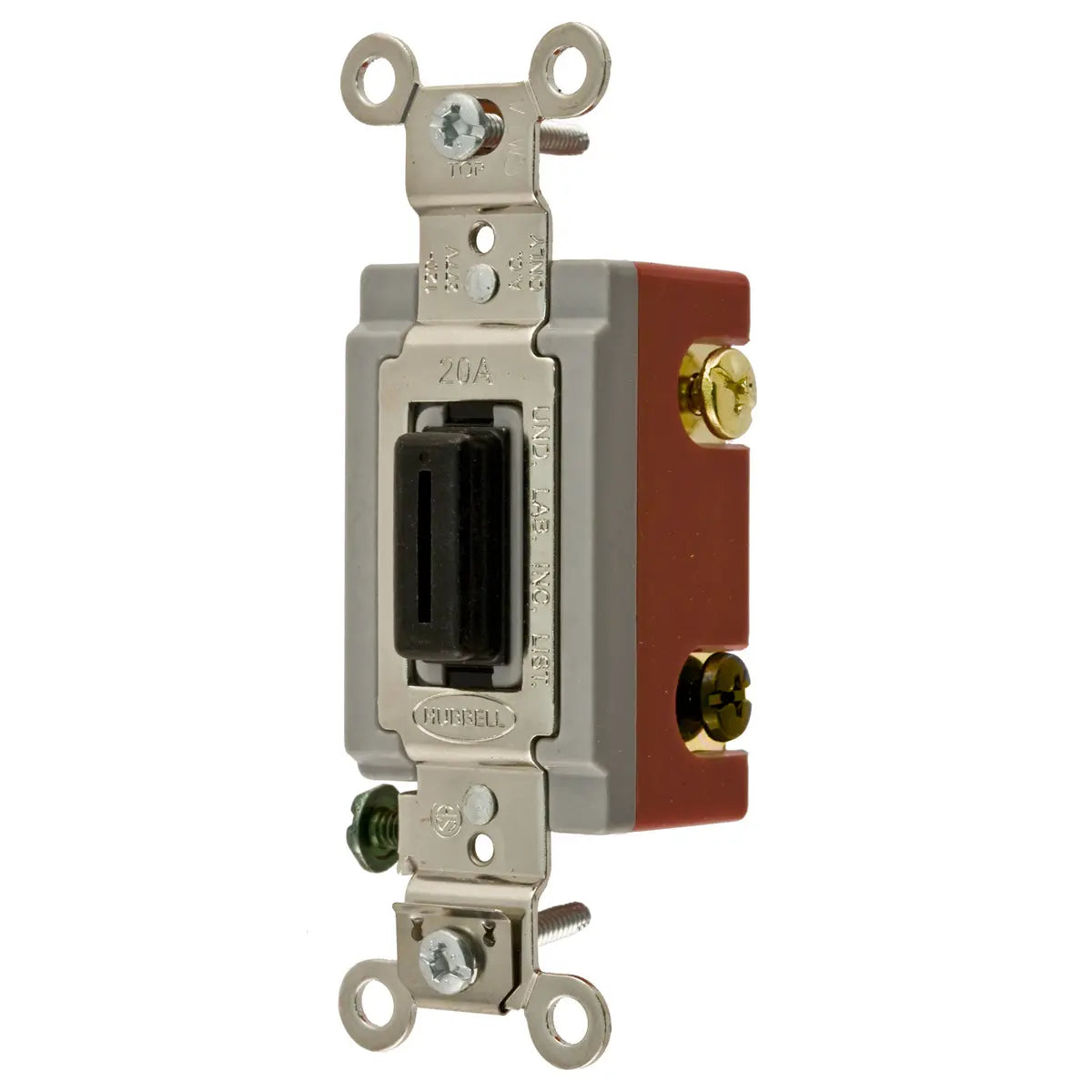

HBL1224L - Hubbell Wiring Device-Kellems - 20A 120/277V AC 4-Way Back and Side Wired Locking Toggle Switch
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Black Key Guide
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
GENERAL SPECIFICATIONS
| Action |
DPDT |
| Application |
Back and Side Wired |
| Catalog Number |
HBL1224L |
| Color |
Black |
| EU RoHS Indicator |
No |
| Number of Poles |
Double Pole |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
- Electrical - Max. Continuous Current - 20A
- Electrical - Max. Working Voltage - 277V AC
- Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
- Electrical - Temperature Rise - 30 degC maximum at rated current
- Environmental - Flammability - UL 94V-2
- Environmental - Operating Temperature - Max. continuous: 75 degC, Min. continuous: -40 degC without impact
- Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
|
| Series |
Extra Heavy Duty |
| Specifications |
- Base Material - Thermoset, Red
- Contacts - Silver Alloy
- Ground Screw - Brass (Green)
- Key Guide - Metallic, Black
- Terminal Screws - Brass
- Top Material - Thermoset
|
| Style |
Four Way |
| Type |
Locking |
| UPC |
783585432106 |
Dimensions
| Overall Dimensions |
4.06 in x 1.31 in x 1.13 in |
| Height |
1.13 in |
| Length |
4.06 in |
| Width |
1.31 in |
| Weight |
0.2 lb |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Back and Side Wired |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 1500V AC minimum for 1 minute |
| Temperature Rise - Max. |
30 degC maximum at rated current |
| Voltage Rating |
120-277 VAC |
| Voltage Rating Description |
120-277 VAC |
Conductor Related
| Number Of Poles |
Double Pole |
| Wire Size |
#14 AWG to #10 AWG |
Operational
| Action
|
DPDT |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
- Electrical - Max. Continuous Current - 20A
- Electrical - Max. Working Voltage - 277V AC
- Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
- Electrical - Temperature Rise - 30 degC maximum at rated current
- Environmental - Flammability - UL 94V-2
- Environmental - Operating Temperature - Max. continuous: 75 degC, Min. continuous: -40 degC without impact
- Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
|
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
5000 |
PRODUCT DATASHEET
Wiring HBL1224L Specification Sheet
