HBL1283 - Hubbell Wiring Device-Kellems - 20A 120/277V AC 3-Way PressSwitch Screw Terminals
Roll over image to zoom in Click on image to zoom
HBL1283 - Hubbell Wiring Device-Kellems - 20A 120/277V AC 3-Way PressSwitch Screw Terminals

HBL1283 - Hubbell Wiring Device-Kellems - 20A 120/277V AC 3-Way PressSwitch Screw Terminals

HubbellSKU: HUBHBL1283
Price:
$47.98
Stock:
Sold out

Description

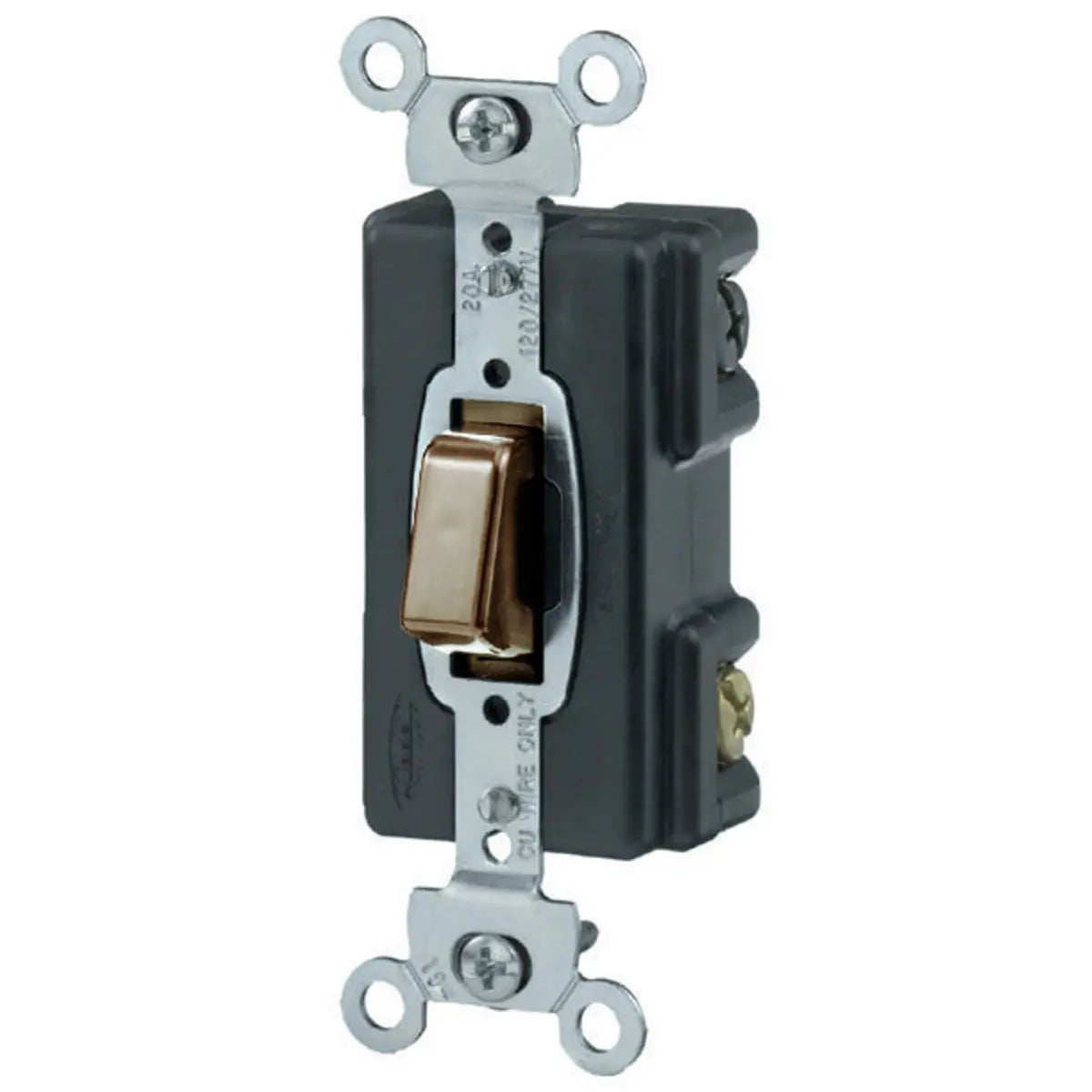

HBL1283 - Hubbell Wiring Device-Kellems - 20A 120/277V AC 3-Way PressSwitch Screw Terminals

Switches and Lighting Controls, Industrial Grade, PresSwitch, General Purpose AC, Three Way, 20A 120/277V AC, Screw Terminals, Brown

  • Large brass binding head screws with deep slots
  • Thread cleaning captive mounting screw
  • Strip gauge for accurate wiring

GENERAL SPECIFICATIONS

 Action SPDT
Catalog Number HBL1283
Color Brown
EU RoHS Indicator Yes
Item Type Three Way Toggle Switch
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Series General Purpose
Specifications
  • Base Material - Thermoset
  • Contacts - Silver Alloy
  • Ground Screw - Brass (Green)
  • Terminal Screws - Brass
  • Toggle Material - Nylon
  • Top Material - Thermoset
Style Three Way
UPC 783585016870



Dimensions

Dimensions 3.28 in x 1.5 in x 1.45 in
Height 1.45 in
Length 3.28 in
Weight 0.2 lb
Width 1.5 in



Electrical Ratings

Amperage Rating 20 A
Connectivity Side Wired Only
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 1500V AC minimum for 1 minute
Temperature Rise – Max. 30°C maximum at rated current
Voltage Rating 120-277 VAC
Voltage Rating Description 120-277 VAC



Conductor Related

Number Of Poles Single Pole
 Wire Size #14 AWG to #10 AWG



Operational

 Action SPDT
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only


Logistics

 Carton Quantity 10



PRODUCT DATASHEET

Wiring HBL1283 Specification Sheet
