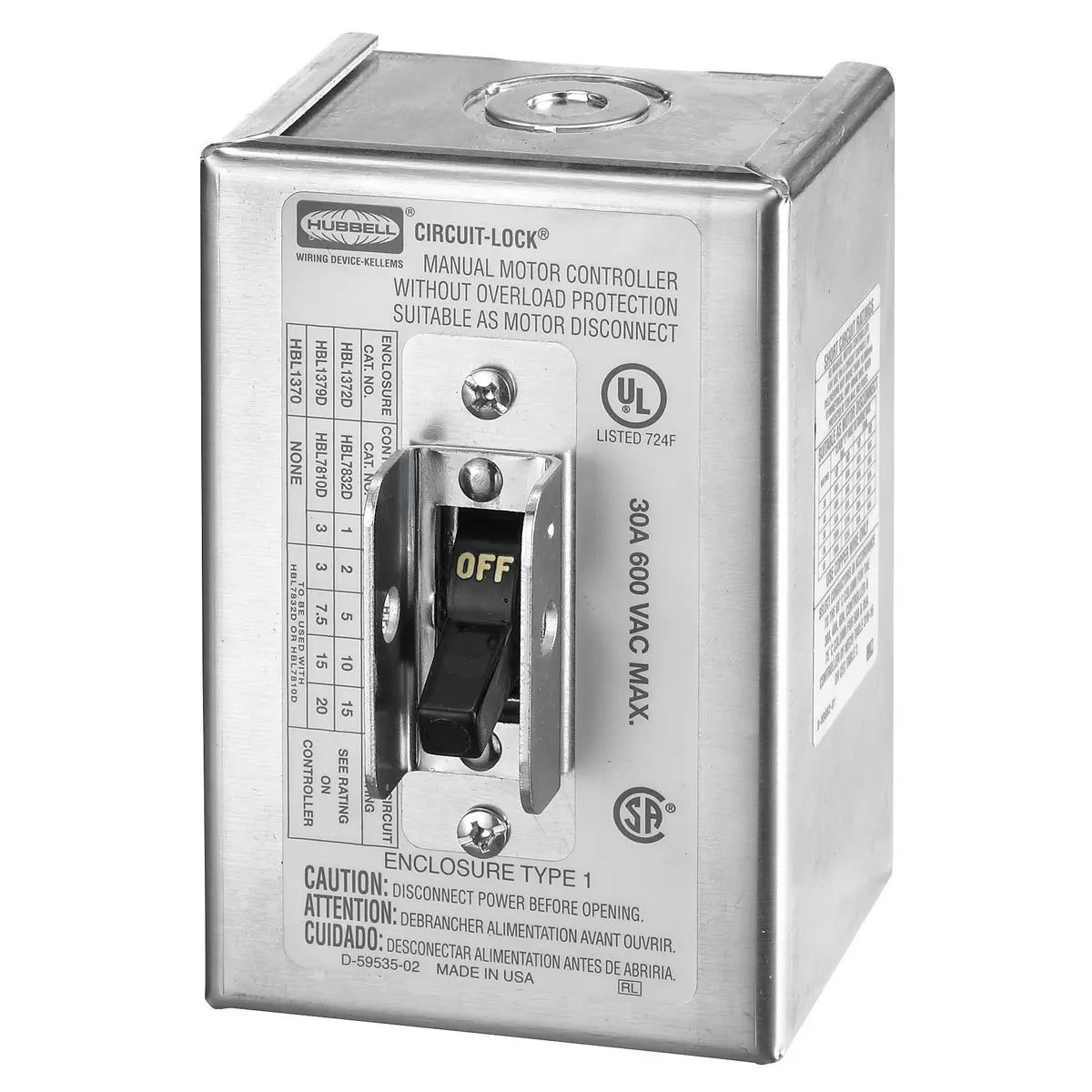

HBL1372 - Hubbell Wiring Device-Kellems - 30A 600V 2-Pole Surface Mount Box Terminal
Circuit-Lock(R) NEMA 1 Enclosure Toggle Switch Disconnect, 2-Pole, 30A 600V AC, Aluminum
- All aluminum cover and base
- Base is pre-drilled for rear surface mounting
- Wiring conduit knockouts
- 1/2" and 3/4" NPT
- Top, bottom or back wire entry points
- Surface mount control
- Switch can be locked in the OFF position as a method of compliance with OSHA lockout/tagout
GENERAL SPECIFICATIONS
| Application |
Standard Toggle |
| Catalog Number |
HBL1372 |
| Color |
Aluminum |
| Enclosure Type |
NEMA 1 |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
20 |
| Load Capacity |
Inductive |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Cycles |
10,000 Cycles Minimum |
| Performance |
- Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute
- Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability - UL94HB/VO
- Environmental - Operating Temperature - Max. 75 degC,Min. -40 degC continuous w/o impact
- Mechanical - Mechanical Life - Min. 10,000 minimum cycles
- Mechanical - Switch Rating - 25 inch pounds
- Mechanical - Terminal Accommodations - #10 AWG Max
- Mechanical - Terminal Torque - 20 inch pounds
- Mechanical - Wire Type - Solid and stranded copper wire only
|
| Series |
Non-Fused |
| Specifications |
Enclosure Material - Aluminum |
| Style |
Standard Duty |
| Type |
Disconnect Switches |
| UPC |
783585680897 |
Dimensions
| Dimensions |
4.52 in x 3.2 in x 3.15 in |
| Display Size |
Standard Sized Product |
| Height |
3.15in |
| Length |
4.52in |
| Weight |
1.05 lb |
| Width |
3.2 in |
Electrical Ratings
| Amperage Rating |
30 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
30 A |
| Current Rating |
30 A |
| Dielectric Strength |
2,200V AC minimum for 1 minute |
| Phase |
Single Phase |
| Wattage |
18000 W |
Logistics
PRODUCT DATASHEET
Wiring HBL1372 Specification Sheet
