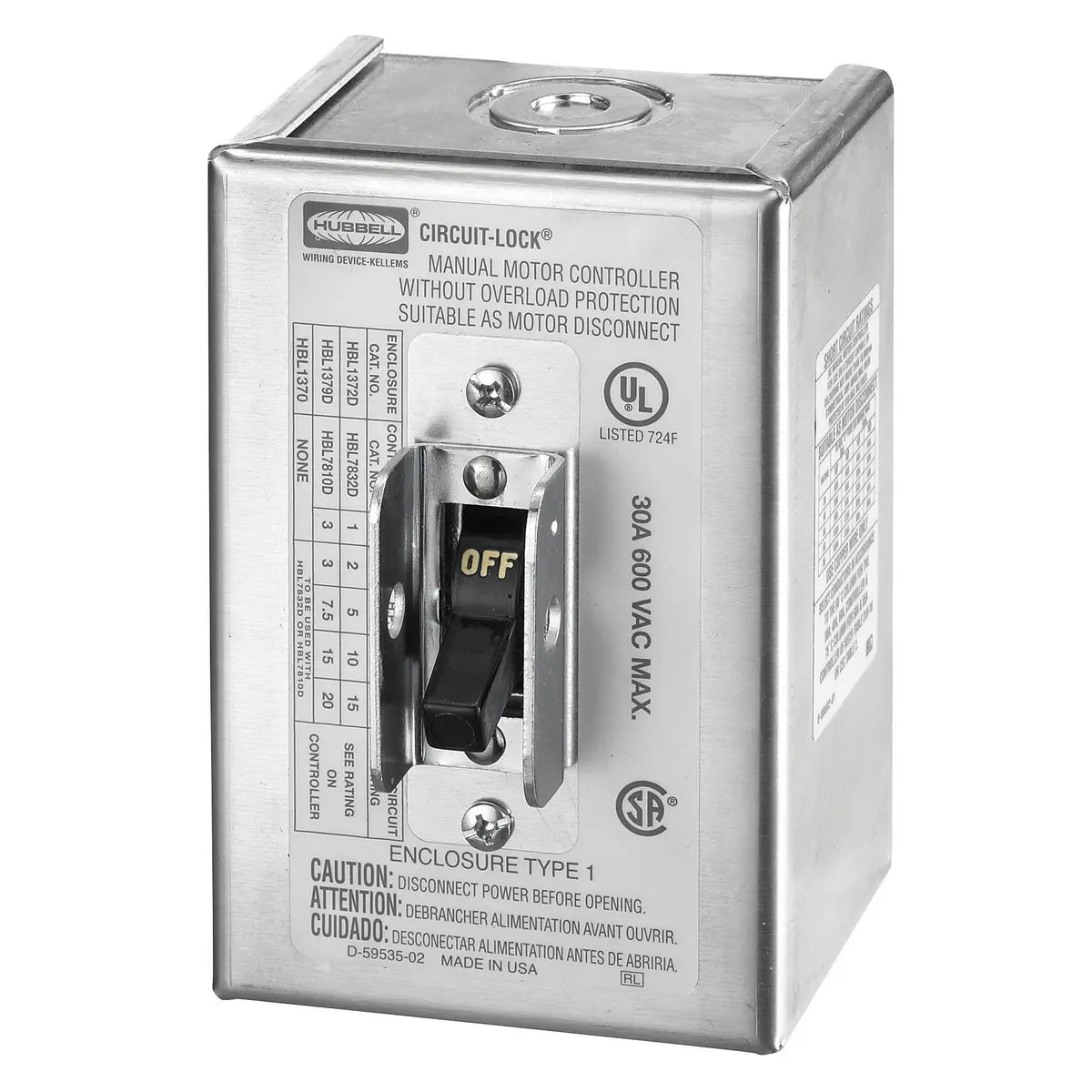

HBL1379D - Hubbell Wiring Device-Kellems - 30A 600V AC 3-Pole Motor Disconnect Toggle Switch
Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Three Pole, 30A 600V AC
Standard Product
GENERAL SPECIFICATIONS
|
Application
|
Standard Toggle
|
|
Catalog Number
|
HBL1379D
|
|
EU RoHS Indicator
|
Yes
|
|
Load Capacity
|
Inductive
|
|
Material - Mounting Hardware
|
Screw Mounting
|
|
Operating Cycles
|
10,000 Cycles Minimum
|
|
Operating Temperature
|
Maximum continuous 75°C and minimum -40°C without impact
|
|
Specifications
|
Enclosure Material - Aluminum
|
|
Style
|
Standard Duty
|
|
Type
|
Disconnect Switches
|
|
UPC
|
783585202617
|
Dimensions
| Dimensions | 4.52 in x 3.2 in x 3.15 in |
| Display Size | Standard Sized Product |
| Height | 3.15 in |
| Length | 4.52 in |
| Weight | 1.05 lb |
| Width | 3.2 in |
Electrical Ratings
| Amperage Rating | 30 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 30 A |
| Current Rating | 30 A |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Temperature Rise – Max. | 2,200V AC minimum for 1 minute |
| Phase | Three Phase |
| Wattage | 1800 W |
Force Related
|
Load Capacity
|
Inductive
|
Operational
|
Operating Cycles
|
10,000 Cycles Minimum
|
|
Operating Temperature
|
Maximum continuous 75°C and minimum -40°C without Impact
|
Logistics
| Carton Quantity | 10 |
