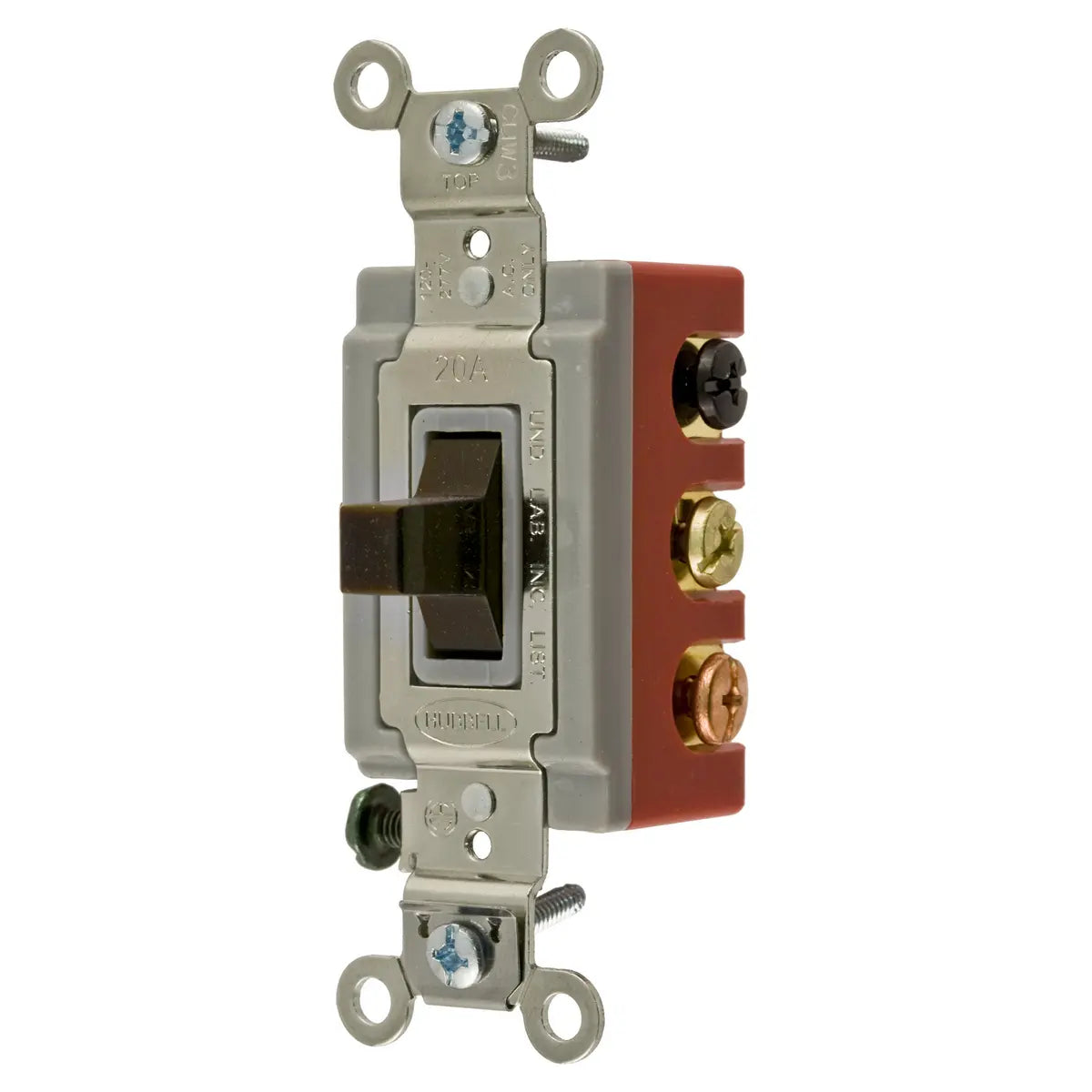

HBL1386 - Hubbell Wiring Device-Kellems - 20A 120/277V AC Double Throw Double Toggle Switch

Extra Heavy Duty Industrial Grade Double Pole Double Throw Toggle Switch, 20A 120/277V AC, Brown

Enhance your industrial settings with the Extra Heavy Duty Industrial Grade Double Pole Double Throw Toggle Switch. Designed for general purpose AC applications, it features a double pole double throw center off mechanism, supports 20A, 120/277V AC, and accommodates both back and side wiring. The durable brown toggle ensures visibility and reliability in demanding environments, making it ideal for controlling power with added safety.

  • Durable nylon toggle resistant to wear and tear
  • Large brass screws with deep slots for secure fastening
  • Wiring strip gauge for precise installation

Experience reliable and robust performance with the Hubbell Extra Heavy-Duty Industrial Grade Toggle Switch. Featuring a double pole, double throw center-off mechanism, this switch is ideal for applications requiring precise power management and enhanced safety.

GENERAL SPECIFICATIONS

 Action DPDT
Application
Back and Side Wired
Catalog Number
HBL1386
Color
Brown
EU RoHS Indicator
No
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Series
Extra Heavy Duty
Specifications
  • Base Material - Thermoset, Green
  • Contacts - Silver Alloy
  • Ground Screw - Brass (Green)
  • Terminal Screws - Brass
  • Toggle Material - Nylon
  • Top Material - Thermoset
Style
Double Pole Double Throw
Type
Toggle



Dimensions

Dimensions 4.06 in x 1.31 in x 1.89 in
Height 1.89 in
Length 4.06 in
Weight 0.25 lb
Width 1.31 in



Electrical Ratings

Amperage Rating 20 A
Connectivity Back and Side Wired
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 1500V AC minimum for 1 minute
Temperature Rise – Max. 30°C maximum at rated current
Voltage Rating 120-277 VAC
Voltage Rating Description 120-277 VAC



Conductor Related

Number Of Poles Double Pole
 Wire Size #14 AWG to #10 AWG



Operational

 Action DPDT
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only

Logistics

 Carton Quantity 10
Pallet Quantity 4500



PRODUCT DATASHEET

Wiring HBL1386 Specification Sheet
