Description

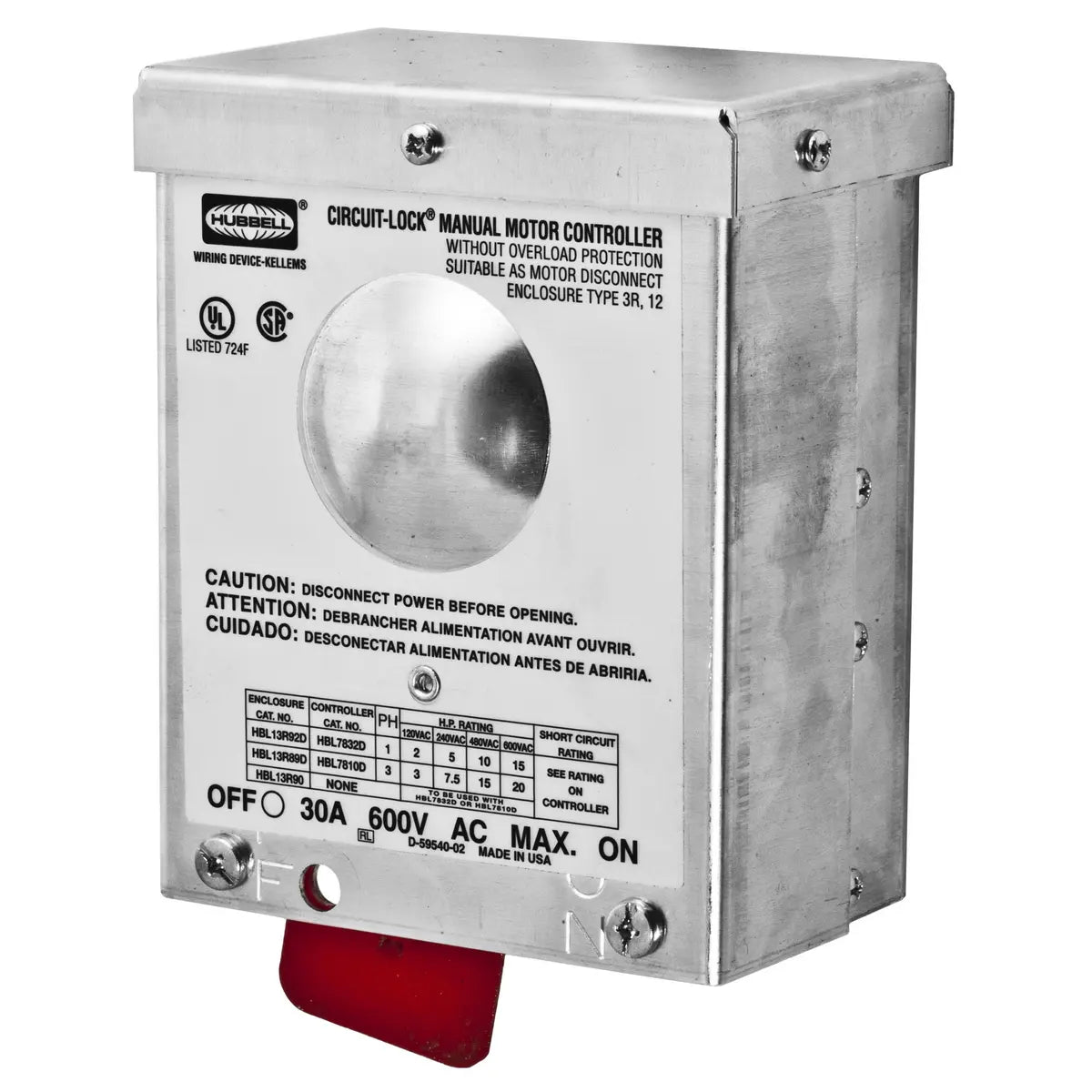

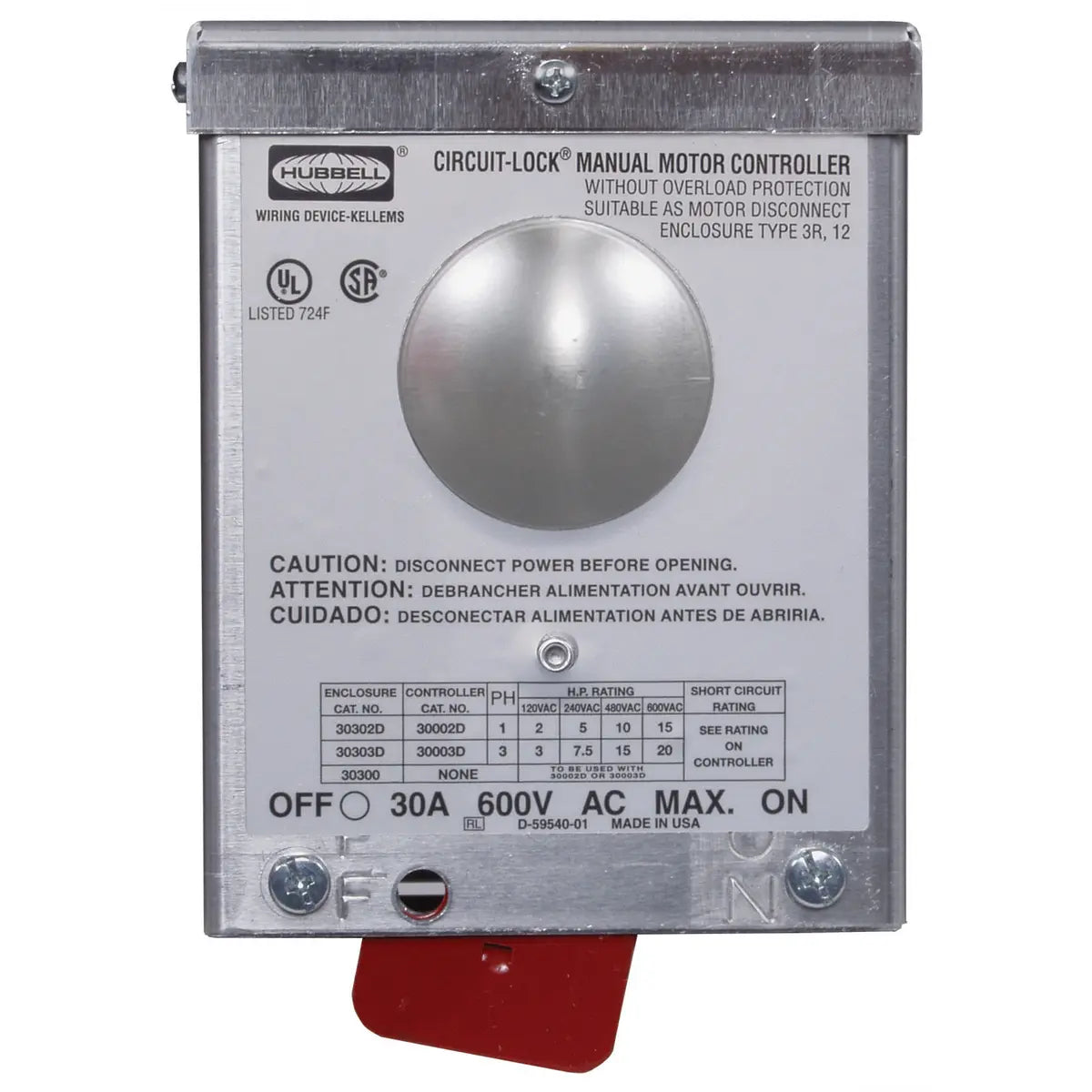

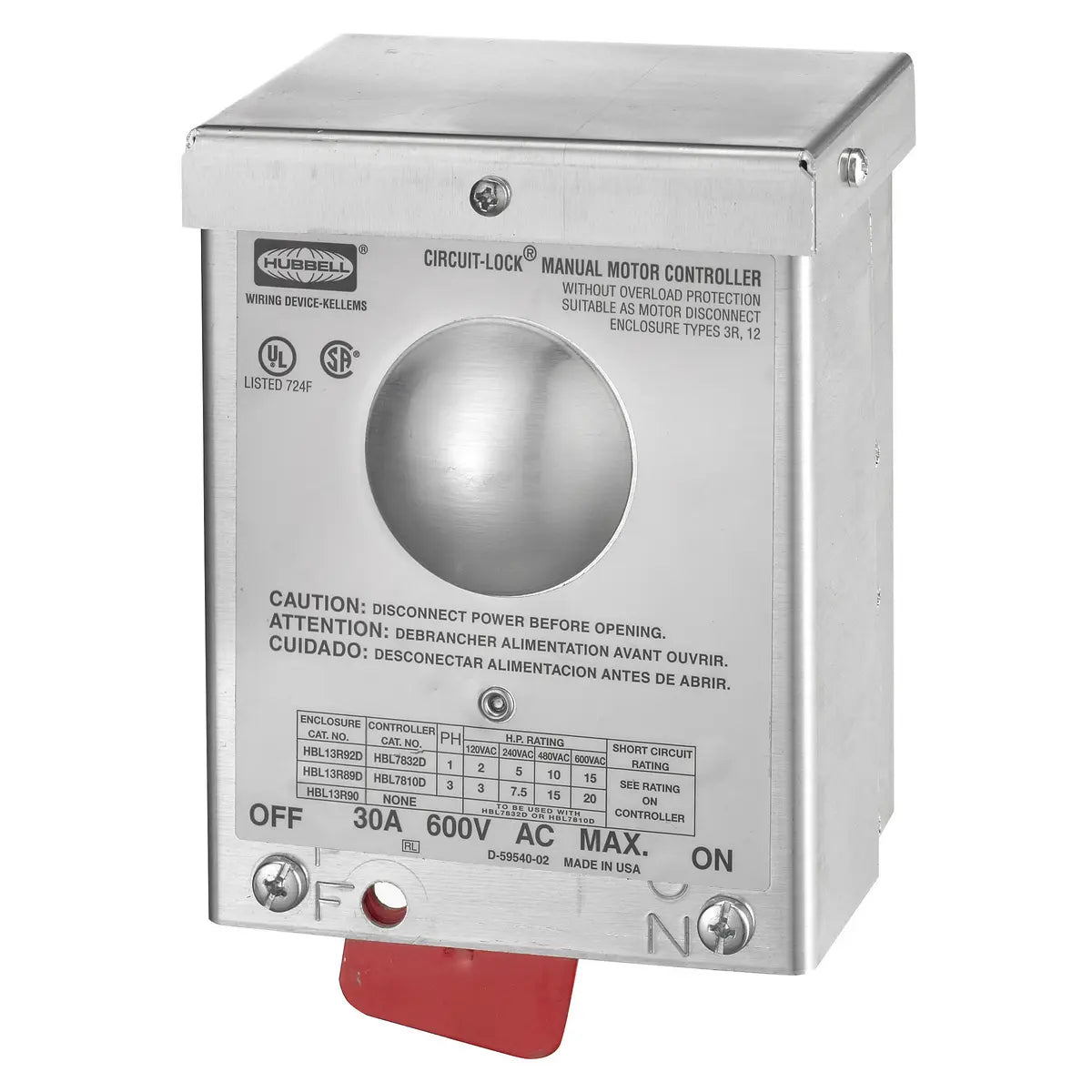

HBL13R89D - Hubbell Wiring Device-Kellems - 30A 600V AC 3-Pole Motor Disconnect Toggle Switch
Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Aluminum, NEMA 3R Enclosure with Switch
- Optional Side Guard for close wall applications
- Clamping plate for secure back or side wiring
- Thermoset body provides resistance to electrical arc tracking
Standard Product
GENERAL SPECIFICATIONS
|
Application
|
Red Slide
|
|
Catalog Number
|
HBL13R89D
|
|
Color
|
Aluminum
|
|
EU ROHS Indicator
|
No
|
|
Load Capacity
|
Inductive
|
|
Material - Mounting Hardware
|
Screw Mounting
|
|
Operating Cycles
|
10,000 Cycles Minimum
|
|
Operating Temperature
|
Maximum continuous 75°C and minimum -40°C without Impact
|
|
Specifications
|
Enclosure Material - Aluminum
|
|
Style
|
Standard Duty
|
|
Type
|
Disconnect Switches
|
|
UPC
|
783585202686
|
Dimensions
| Dimensions | 5.52 in x 4.4 in x 3.3 in |
| Display Size | Standard Sized Product |
| Height | 3.3 in |
| Length | 5.52 in |
| Weight | 1.55 lb |
| Width | 4.4 in |
Electrical Ratings
| Amperage Rating | 30 A |
| Connectivity | Pressure Terminal Screws |
| Current Rating | 30 A |
| Dielectric Strength | 2,200V AC minimum for 1 minute |
| Phase | Single Phase |
| Wattage | 18000 W |
Force Related
| Load Capacity | Inductive |
Operational
|
Horsepower
|
Maximum
|
|
Operating Cycles
|
10,000 Cycles Minimum
|
|
Operating Temperature
|
Maximum continuous 75°C and minimum -40°C without Impact
|
Logistics
| Carton Quantity | 4 |
