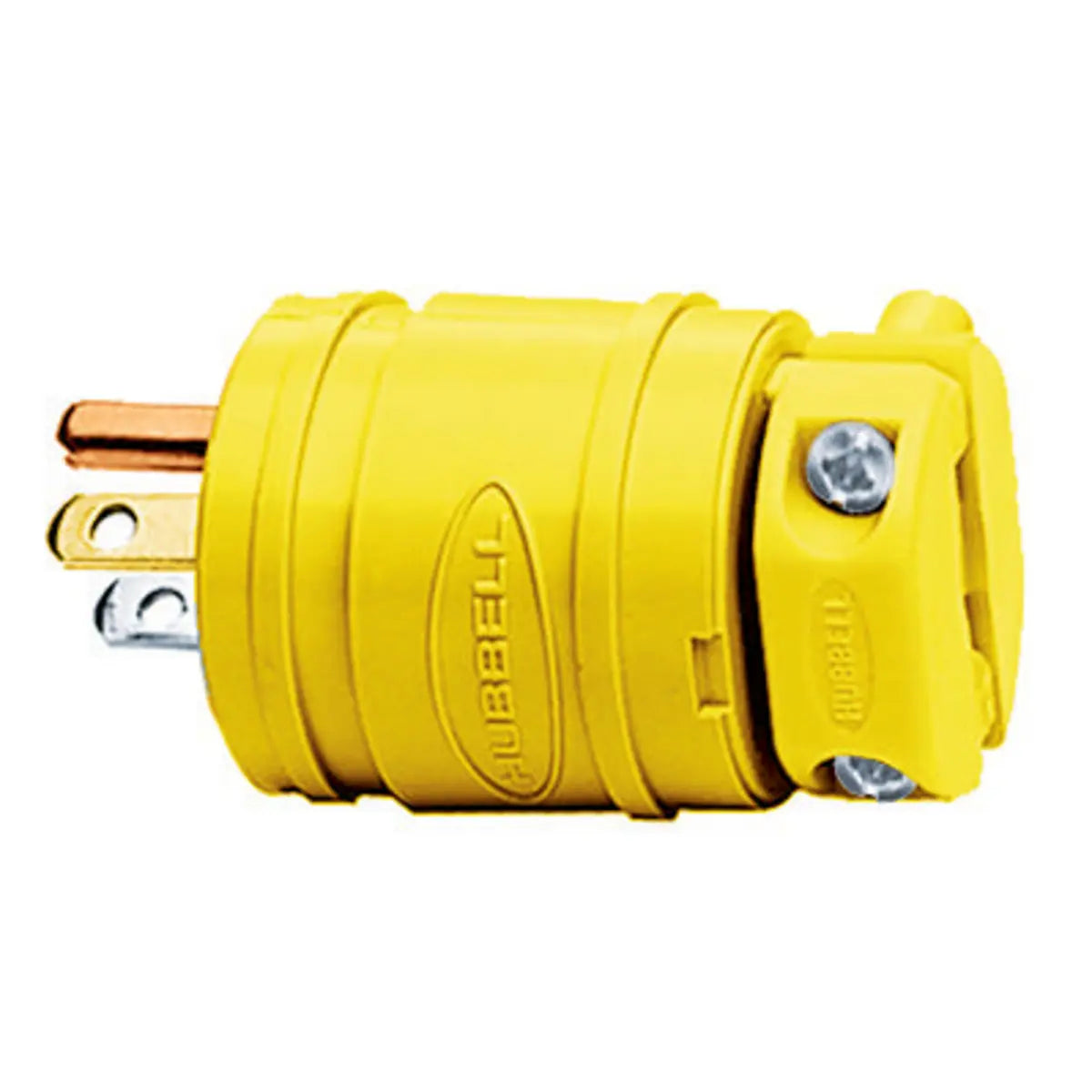

HBL1447 - Hubbell Wiring Device-Kellems - 15A 125V Straight 2-Pole 3-Wire Grounding Elasto-Grip Male Plug Dust-Tight
Straight Blade Devices, Male Plug, Elasto-Grip Dust Tight, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 125V, 5-15P, Yellow, Single Pack.
- Thermoplastic elastomer housing
- Dust and moisture seal around cord
Weatherproof Boot
GENERAL SPECIFICATIONS
| General Application |
Industrial/Commercial Grade |
| Catalog Number |
HBL1447 |
| Color |
Yellow |
| EU RoHS Indicator |
Contact Manufacturer |
| Horsepower Maximum |
2 |
| Item Type |
Insulgrip Plug |
| Material |
Polycarbonate |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without impact |
| Performance |
- Electrical: Current Interrupting: Certified for current interrupting at full rated current Dielectric Voltage Withstands 2,000V minimum
-
Mechanical Product Identification Ratings are a permanent part of the device Terminal Accommodation #18-#12 AWG.Stranded copper wire only.Terminal Identification: Terminals identified in accordance with UL 498 and CSA
- Environmental Flammability: UL 94 V-2, IP Suitability: IP20
- Operating Temperatures Maximum continuous 75 degC minimum -40 degC (w/o impact)
|
| Series |
Elastogrip |
| Specifications |
- Assembly Screws - Plated steel
- Blade Holder - Nylon
- Blades - .060" (1.5) Brass
- Housing - PVC
- Terminal Clamp - Nickel plated steel
- Terminal Retainer - Clear Polycarbonate
- Terminal Screws - #8-32 Brass, multiple drive
|
| Style |
Standard |
| Type |
Plug |
| UPC |
783585013015 |
Dimensions
| Dimensions |
2.19 in x 1.55 in x 2.19 in |
| Display Size |
Standard Sized Product |
| Height |
2.19in |
| Length |
2.19in |
| Weight |
0.15 lb |
| Width |
1.55 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 V |
ConductorRelated
| Number Of Poles |
2-Pole |
| Number Of Wires |
3 - Wire |
| Wire Size |
#18 AWG to #12 AWG |
Operational
| Horsepower - Maximum
|
2 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical:Current Interrupting: Certified for current interrupting at full rated current,Dielectric Voltage: Withstands 2,000V minimum
- Mechanical: Product Identification Ratings are a permanent part of the deviceTerminal Accommodation #18-#12 AWG. Stranded copper wire only.Terminal Identification: Terminals identified in accordance with UL 498 and CSA
- Environmental:Flammability: UL 94 V-2,IP Suitability: IP20
- Operating Temperatures Maximum continuous 75 degC
- minimum -40 degC (w/o impact)
|
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
4050 |
