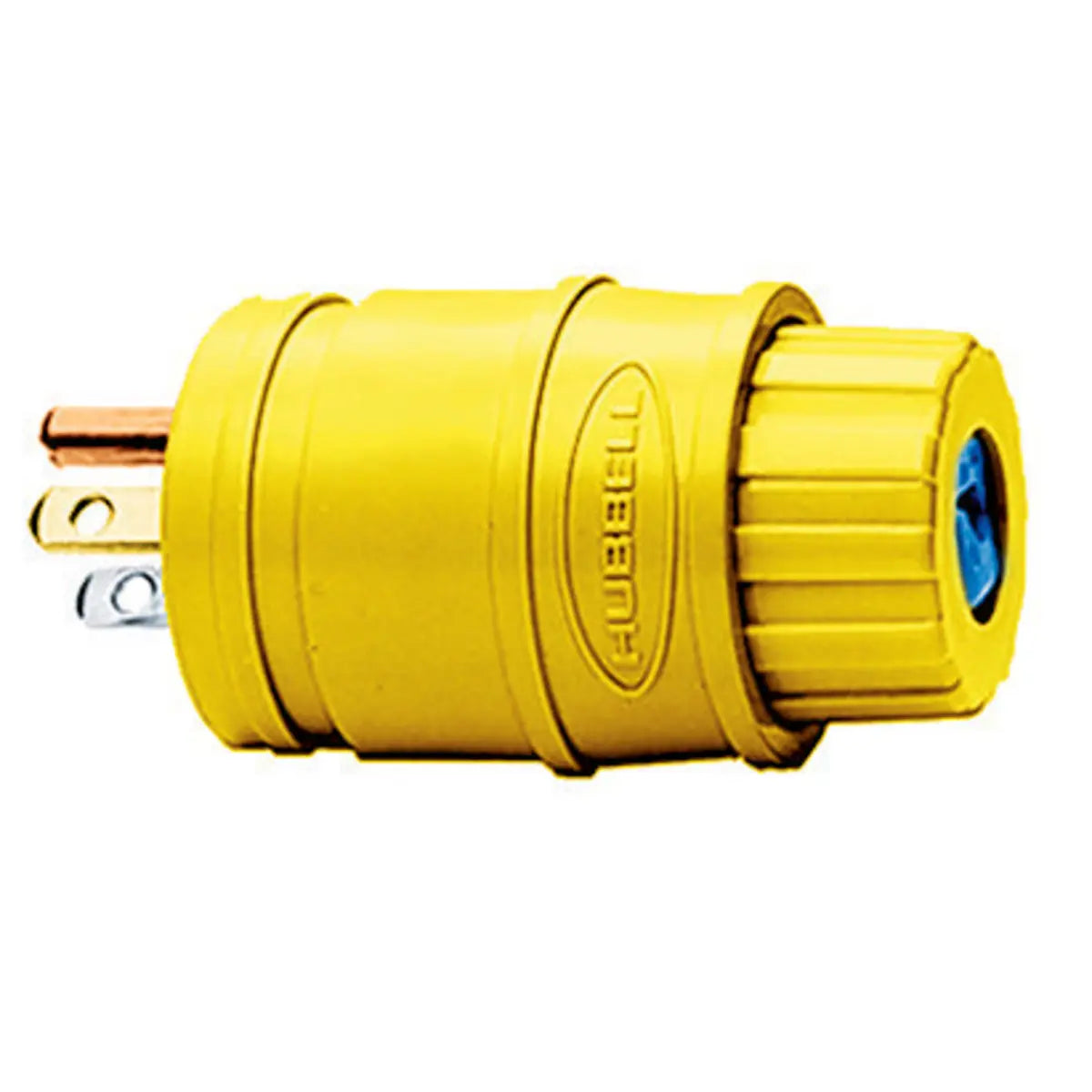

HBL14W47 - Hubbell Wiring Device-Kellems - 15A 125V Straight 2-Pole 3-Wire Grounding Elasto-Grip Male Plug Water-Tight
Straight Blade Devices, Male Plug, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Yellow, Single Pack.
- Thermoplastic elastomer housing
- Integral weatherproofing shroud seals connection between plug and connector
- Nylon compression nut keeps water and dust from getting into the body around the cord
GENERAL SPECIFICATIONS
| Application
|
Industrial/Commercial Grade |
| Catalog Number |
HBL14W47 |
| Color |
Yellow |
| EU RoHS Indicator |
Contact Manufacturer |
| Horsepower - Maximum |
0.5 |
| Item Type |
Insulgrip Plug |
| Material |
Polycarbonate |
| OEM Brand Name |
OEM Brand Name |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical:Current Interrupting Certified for current interrupting at full rated current
- Dielectric Voltage: Withstands 2,000V minimum
- Mechanical:Product Identification: Ratings are a permanent part of the device
- Terminal Accommodation:#18-#12 AWG. Stranded copper wire only.
- Terminal Identification: Terminals identified in accordance with UL 498 and CSA
- Environmental:Flammability: UL 94 V-2
- IP Suitability: IP55
- Operating Temperatures: Maximum continuous 75°C
- minimum -40°C (w/o impact)
|
| Series |
Elastogrip |
| Specifications |
- Assembly Screws - Plated steel
- Blade Holder - Nylon
- Blades - .060" (1.5) Brass
- Housing - PVC
- Terminal Clamp - Nickel plated steel
- Terminal Retainer - Clear Polycarbonate
- Terminal Screws - #8-32 Brass , multiple drive
|
| Style |
Standard |
| Type |
Plug |
| UPC |
783585013008 |
Dimensions
| Dimensions |
2.65 in x 1.55 in x 2.65 in |
| Height |
2.65 in |
| Length |
2.65 in |
| Weight |
0.2 lb |
| Width |
1.55 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 V |
| Voltage Rating Description |
125 V |
Conductor Related
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #12 AWG |
Operational
| Horsepower - Maximum
|
0.5 |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical:Current Interrupting Certified for current interrupting at full rated current
- Dielectric Voltage: Withstands 2,000V minimum
- Mechanical:Product Identification: Ratings are a permanent part of the device
- Terminal Accommodation:#18-#12 AWG. Stranded copper wire only.
- Terminal Identification: Terminals identified in accordance with UL 498 and CSA
- Environmental:Flammability: UL 94 V-2
- IP Suitability: IP55
- Operating Temperatures: Maximum continuous 75°C
- minimum -40°C (w/o impact)
|
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
4050 |
