HBL1556L - Hubbell Wiring Device-Kellems - 15A 120/277V AC SPDT Center Off Momentary Locking Toggle Switch Terminal Screw
Roll over image to zoom in Click on image to zoom

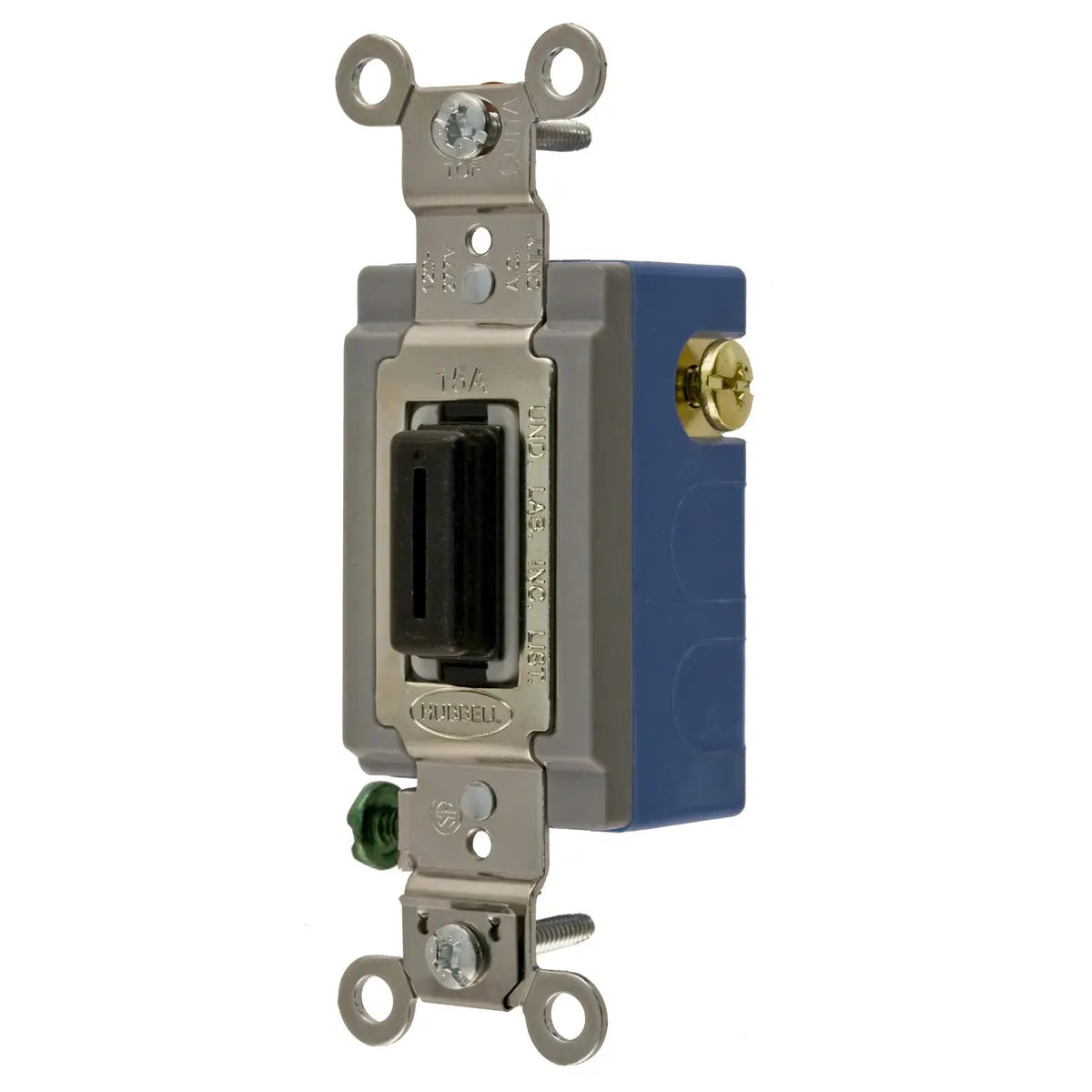

HBL1556L - Hubbell Wiring Device-Kellems - 15A 120/277V AC SPDT Center Off Momentary Locking Toggle Switch Terminal Screw

HBL1556L - Hubbell Wiring Device-Kellems - 15A 120/277V AC SPDT Center Off Momentary Locking Toggle Switch Terminal Screw

HubbellSKU: HUBHBL1556L
Price:
$93.44
Stock:
Sold out

Description

HBL1556L - Hubbell Wiring Device-Kellems - 15A 120/277V AC SPDT Center Off Momentary Locking Toggle Switch Terminal Screw

Switches and Lighting Controls, Industrial Grade, Locking Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off , 15A 120/277V AC, Terminal Screws Black Key Guide

  • Large brass binding head screws with deep slots
  • Lock circuits On or Off
  • Strip gauge for accurate wiring

GENERAL SPECIFICATIONS

 Action SPDT
Application Back and Side Wired
Catalog Number HBL1556L
Color Black
Contact Configuration Momentary
EU RoHS Indicator No
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 15A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Series Extra Heavy Duty
Specifications
  • Base Material - Thermoset, Blue
  • Contacts - Silver Alloy
  • Ground Screw - Brass (Green)
  • Key Guide - Metallic, Black
  • Terminal Screws - Brass
  • Top Material - Thermoset
Style Single Pole Double Throw
Type Locking
UPC 783585432809



Dimensions

Dimensions 4.06 in x 1.31 in x 1.89 in
Height 1.89 in
Length 4.06 in
Weight 0.2 lb
Width 1.31 in



Electrical Ratings

Amperage Rating 15 A
Connectivity Back and Side Wired
Current / Amperage Rating 15 A
Current Rating 15 A
Dielectric Strength Withstands 1500V AC minimum for 1 minute
Temperature Rise – Max. 30°C maximum at rated current
Voltage Rating 120-277 VAC
Voltage Rating Description 120-277 VAC



Conductor Related

Number Of Poles Single Pole
 Wire Size #14 AWG to #10 AWG



Operational

 Action SPDT
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 15A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only

Logistics

 Carton Quantity 10



PRODUCT DATASHEET

Wiring HBL1556L Specification Sheet
