HBL1557 - Hubbell Wiring Device‑Kellems - 20A 120/277V AC SPDT Center Off Momentary Toggle Switch Terminal Screw
Roll over image to zoom in Click on image to zoom
HBL1557 - Hubbell Wiring Device‑Kellems - 20A 120/277V AC SPDT Center Off Momentary Toggle Switch Terminal Screw

HBL1557 - Hubbell Wiring Device‑Kellems - 20A 120/277V AC SPDT Center Off Momentary Toggle Switch Terminal Screw

HubbellSKU: HUBHBL1557
Price:
$36.72
Stock:
Sold out

Description

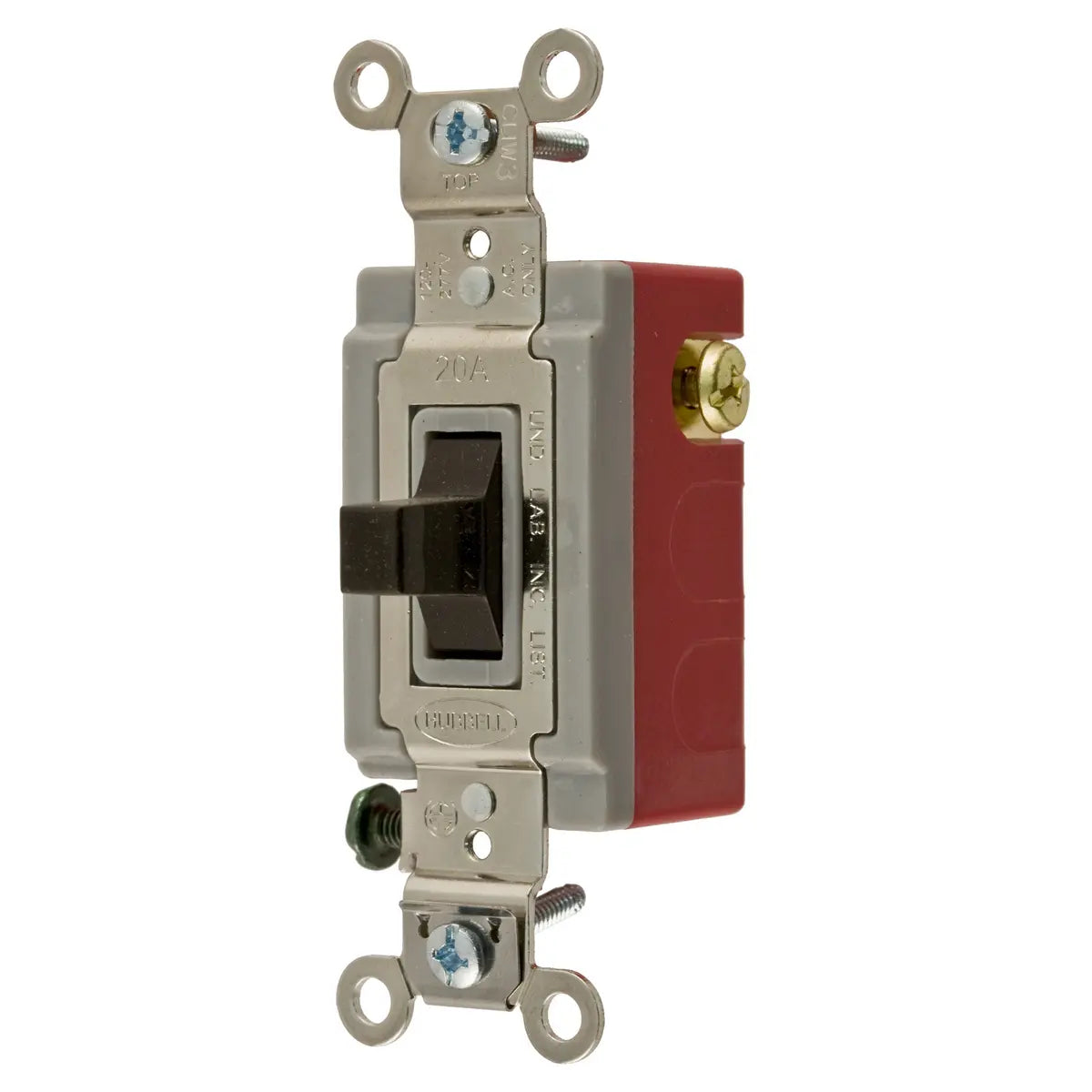

HBL1557 - Hubbell Wiring Device‑Kellems - 20A 120/277V AC SPDT Center Off Momentary Toggle Switch Terminal Screw

Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 20A 120/277V AC, Terminal Screws, Brown Toggle

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring

GENERAL SPECIFICATIONS

 Action SPDT
Application Back and Side Wired
Catalog Number HBL1557
Color Brown
Contact Configuration Momentary
EU RoHS Indicator No
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Series Extra Heavy Duty
Specifications
  • Base Material - Thermoset, Red
  • Contacts - Silver Alloy
  • Ground Screw - Brass (Green)
  • Terminal Screws - Brass
  • Toggle Material - Nylon
  • Top Material - Thermoset
Style Single Pole Double Throw
Type Toggle
UPC 783585432823



Dimensions

Dimensions 4.06 in x 1.31 in x 1.89 in
Height 1.89 in
Length 4.06 in
Weight 0.2 lb
Width 1.31 in



Electrical Ratings

Amperage Rating 20 A
Connectivity Back and Side Wired
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 1500V AC minimum for 1 minute
Temperature Rise – Max. 30°C maximum at rated current
Voltage Rating 120-277 VAC
Voltage Rating Description 120-277 VAC



Conductor Related

Number Of Poles Single Pole
 Wire Size #14 AWG to #10 AWG



Operational

 Action SPDT
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only

Logistics

 Carton Quantity 10
Pallet Quantity 4500



PRODUCT DATASHEET

Wiring HBL1557 Specification Sheet
