Description

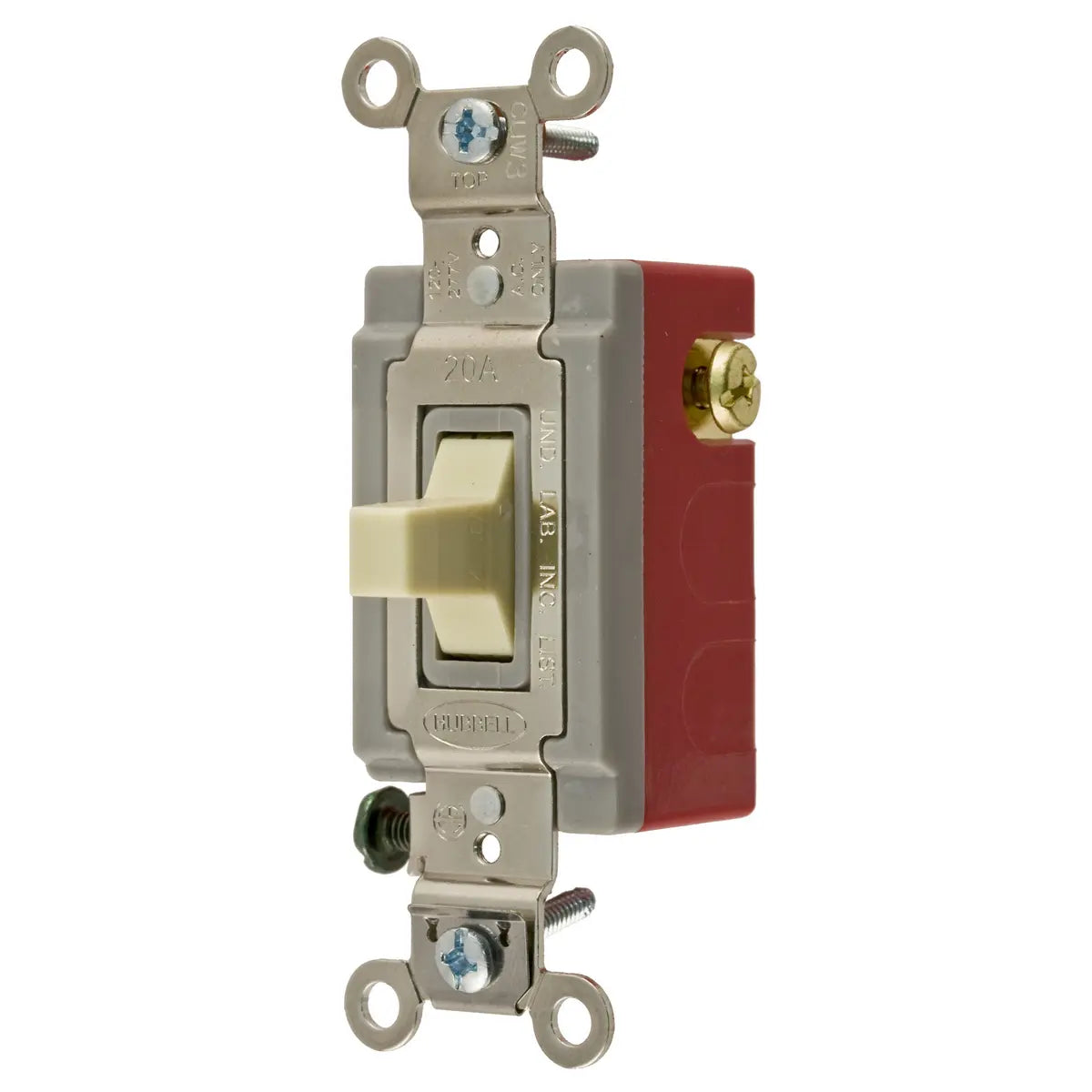

HBL1557I - Hubbell Wiring Device-Kellems - 20A 120/277V AC Single Pole Double Throw Center Off Toggle Switch
Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 20A 120/277V AC, Terminal Screws, Ivory Toggle
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
GENERAL SPECIFICATIONS
| Action | SPDT |
| Application | Back and Side Wired |
| Catalog Number | HBL1557I |
| Color | Ivory |
| Contact Configuration | Momentary |
| EU RoHS Indicator | No |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Series | Extra Heavy Duty |
| Specifications |
|
| Style | Single Pole Double Throw |
| Type | Toggle |
| UPC | 783585432861 |
Dimensions
| Dimensions | 4.06 in x 1.31 in x 1.89 in |
| Height | 1.89 in |
| Length | 4.06 in |
| Weight | 0.2 lb |
| Width | 1.31 in |
Electrical Classifications
| Amperage Rating | 20 A |
| Connectivity | Back and Side Wired |
| Current / Amperage Rating | 20 A |
| Current Rating | 20 A |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Temperature Rise - Max | 30°C maximum at rated current |
| Voltage Rating | 120-277 VAC |
| Voltage Rating Description | 120-277 VAC |
Driver Related
| Number Of Poles |
Single Pole |
| Wire Size | #14 AWG to #10 AWG |
Operational
| Action | SPDT |
|
Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 3600 |
