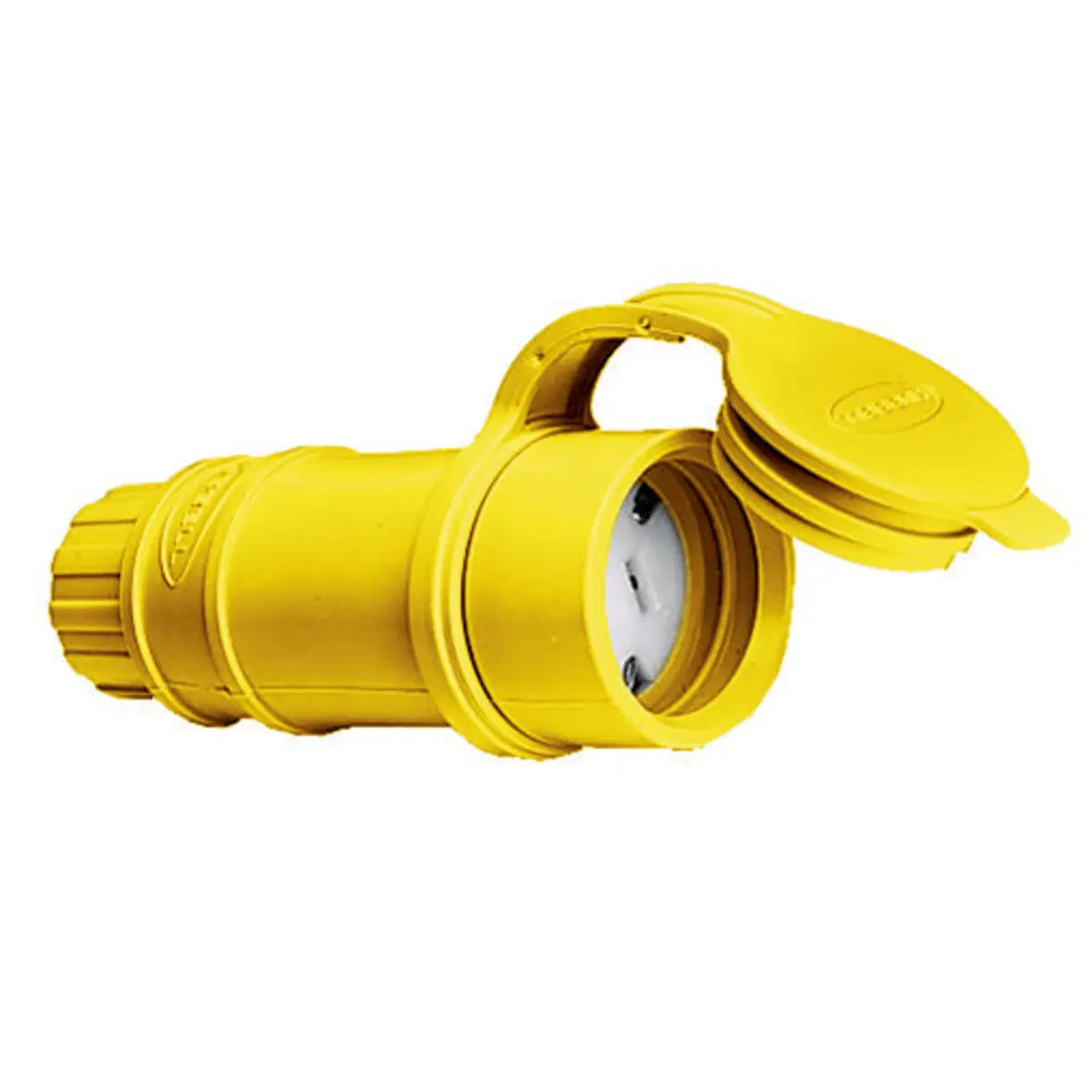

HBL15W47 - Hubbell Wiring Device-Kellems - 15A 125V Straight Blade Elasto-Grip Watertight Female Connector Body
Roll over image to zoom in Click on image to zoom
HBL15W47 - Hubbell Wiring Device-Kellems - 15A 125V Straight Blade Elasto-Grip Watertight Female Connector Body

HBL15W47 - Hubbell Wiring Device-Kellems - 15A 125V Straight Blade Elasto-Grip Watertight Female Connector Body

HubbellSKU: HUBHBL15W47
Price:
$29.43
Stock:
Sold out

Description

HBL15W47 - Hubbell Wiring Device-Kellems - 15A 125V Straight Blade Elasto-Grip Watertight Female Connector Body

Straight Blade Devices, Female Connector Body, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 125V, 15A 5-15R, Yellow, Single Pack.

  • Thermoplastic elastomer housing
  • Integral weatherproofing shroud seals connection between plug and connector
  • Nylon compression nut keeps water and dust from getting into the body around the cord

GENERAL SPECIFICATIONS

Application Industrial/Commercial
Catalog Number HBL15W47
Cord Range 0.250"-0.655" (6.4-16.6)
Environmental Conditions Watertight
EU RoHS Indicator No
Horsepower - Maximum 0.5
Insulation Insulated Body
Item Type Elastogrip
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance



  • Electrical: Current Interrupting: Certified for current interrupting at full rated current
  • Dielectric Voltage: Withstands 2,000V minimum
  • Mechanical: Product Identification:Terminal Accommodation: #18-#12 AWG. Stranded copper wire only. Terminal Identification: Terminals identified in accordance with UL 498 and CSA
  • Environmental: Flammability UL 94 HB or better
  • IP Suitability: IP55
  • Operating Temperatures: Maximum continuous 75°C
  • minimum -40°C (w/o impact)
Series Elastogrip
Specifications
  • Assembly Screws - Plated steel
  • Contact Holder - Nylon
  • Contacts - .040" (1.0) Brass
  • Housing - Thermoplastic Elastomer
  • Terminal Clamp - Nickel plated steel
  • Terminal Retainer - Clear Polycarbonate
  • Terminal Screws - #8-32 Brass , multiple drive
Style Standard
Temperature Rating Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type Connector Body
UPC 783585013022



Dimensions

Dimensions 4.03 in x 1.76 in x 4.03 in
Display Size Standard
Height 4.03 in
Length 4.03 in
Weight 0.35 lb
Width 1.76 in



Electrical Classifications


Amperage Rating 15 A
Connectivity Screw Terminals
Current / Amperage Rating 15 A
Current Rating 15 A
Dielectric Strength Withstands 2000V minimum
Phase Single Phase
Voltage Rating 125 VAC
Voltage Rating Description 125 V



Driver Related

Conductor Range #18 AWG to #12 AWG

Number Of Poles

2-Pole
Number Of Wires 3-Wire
 Wire Size #18 AWG to #12 AWG



Operational

Horsepower - Maximum

 0.5

Operating Temperature

Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical: Current Interrupting: Certified for current interrupting at full rated current
  • Dielectric Voltage: Withstands 2,000V minimum
  • Mechanical: Product Identification:Terminal Accommodation: #18-#12 AWG. Stranded copper wire only. Terminal Identification: Terminals identified in accordance with UL 498 and CSA
  • Environmental: Flammability UL 94 HB or better
  • IP Suitability: IP55
  • Operating Temperatures: Maximum continuous 75°C
  • minimum -40°C (w/o impact)

Temperature Rating

Max Continuous- 75 Degrees C, Minimum- -40 Without Impact



Logistics

Carton Quantity 10
Pallet Quantity 1200



PRODUCT DATASHEET

Wiring HBL15W47 Specification Sheet
