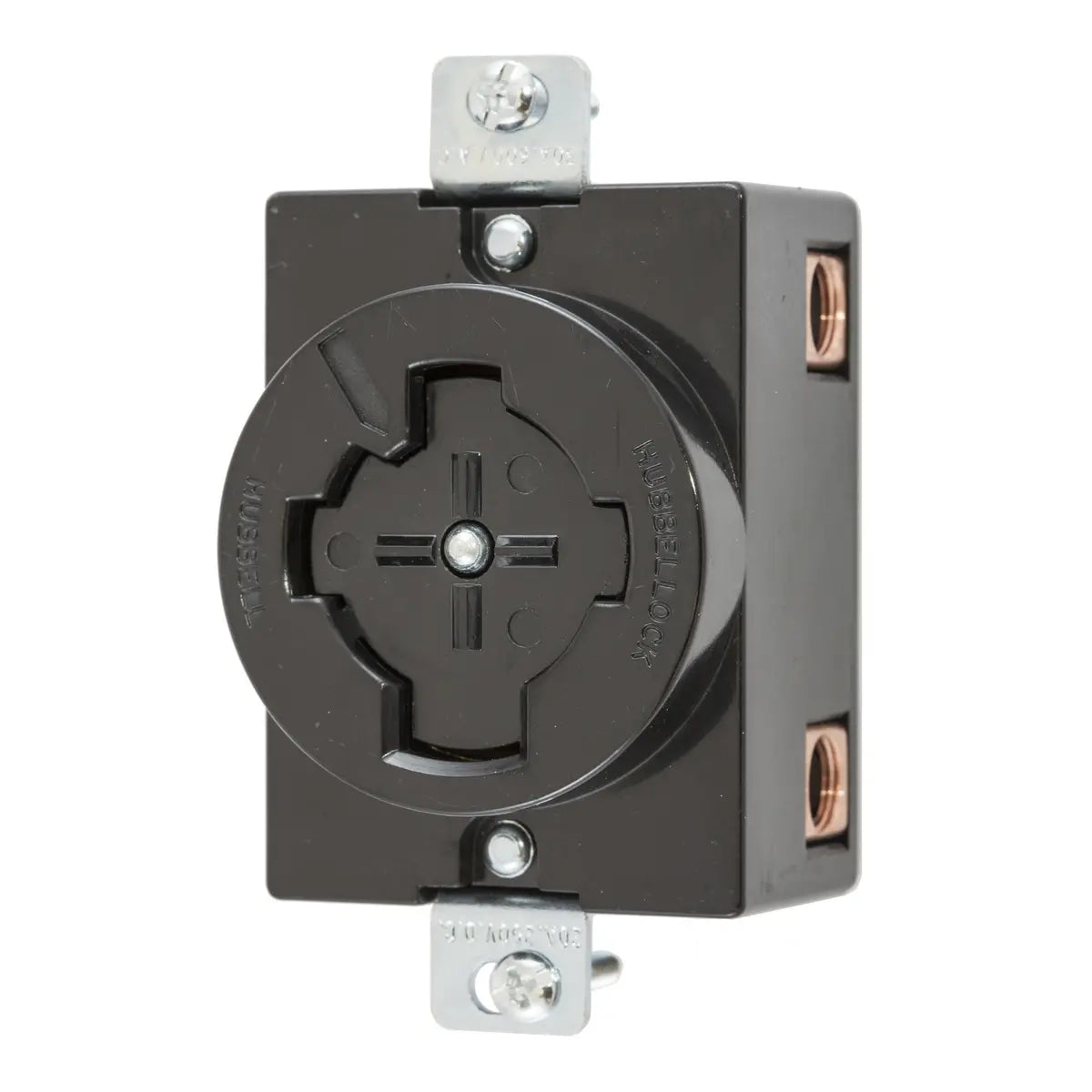

HBL20403 - Hubbell Wiring Device-Kellems - 600V AC/250V DC 3-Pole 4-Wire Non-NEMA Hubbellock Locking Receptacle
The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing to a longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications.
- Spring loaded safety shutter contains arcing when mating or un-matting devices under load
- Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
- Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
- Thermoset molded housing provides maximum heat resistance
GENERAL SPECIFICATIONS
| Catalog Number |
HBL20403 |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
No |
| Item Type |
20A/30A Hubbellock(R) Grounding Receptacle |
| Material |
Thermoplastic |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - 2,000V minimum
- Environmental - Flammability - UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors
- Environmental - Moisture Resistance - IP30 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Bridge - Zinc plated steel
- Contacts - Bronze
- Device Color - Black
- Housing - Thermoset
- Shutter - Thermoset
- Terminal Screws - Zinc plated steel
|
| Type |
Receptacle |
| UPC |
783585017280 |
Dimensions
| Dimensions |
3.28 in x 1.94 in x 1.75 in |
| Display Size |
Standard Sized Product |
| Height |
1.75 in |
| Length |
3.28 in |
| Weight |
0.55 lb |
| Width |
1.94 in |
Electrical Classifications
| Amperage Rating |
20/30 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
20/30 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
250 VDC/600 VAC |
| Voltage Rating Description |
250 VDC/600 VAC |
Driver Related
Number Of Poles |
3-Pole |
| Number of Wires |
4-Wire |
| Wire Size
|
#10 AWG to #6 AWG |
Operational
Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - 2,000V minimum
- Environmental - Flammability - UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors
- Environmental - Moisture Resistance - IP30 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accomodation - #10 AWG - #6 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Logistics
|
Carton Quantity
|
20 |
| Pallet Quantity |
2720 |
PRODUCT DATASHEET
Wiring HBL20403 Specification Sheet
