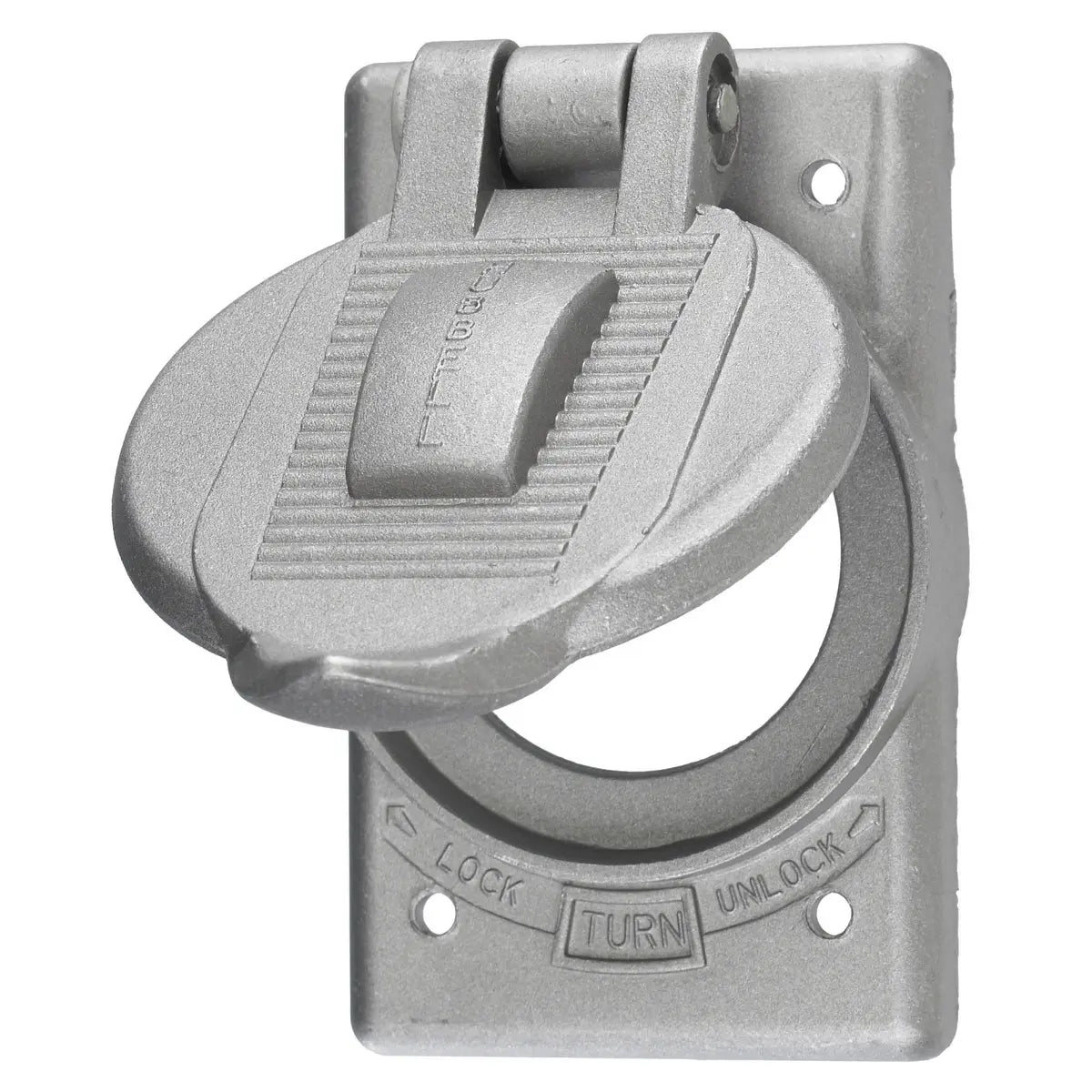

HBL20405 - Hubbell Wiring Device-Kellems - Cast Aluminum Lift Cover Plate for Weatherproofing Covers
Cast aluminum, wet location only when cover'closed' and damp locations, lift cover plate
- wet location only when cover "closed" and damp locations
- lift cover plate
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL20405 |
| EU RoHS Indicator |
Yes |
| Material |
Aluminum, Cast |
| Material - Mounting Hardware |
Vertical FS/FD Mount- Mounting Screws |
| Number of Gang(s) |
1-Gang |
| Number Of Outlets |
1-Device |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Specifications |
- Gasket - Neoprene
- Material - Aluminum
- Retaining Ring - Stainless steel
- Rivet - Aluminum
- Spring - Stainless steel
|
| Style |
For 30A, 4 Wire Hubbellock Receptacles |
| Type |
Covers |
| UPC |
783585808956 |
Dimensions
| Dimensions |
4.37 in x 2.84 in x 1.16 in |
| Display Size |
1-Gang |
| Height |
1.16 in |
| Length |
4.37 in |
| Weight |
0.4 lb |
| Width |
2.84 in |
Configuration
| Number of Gang(s)
|
1-Gang |
| Number Of Outlets |
1-Device |
Logistics
|
Carton Quantity
|
10 |
| Pallet Quantity |
2800 |
PRODUCT DATASHEET
Wiring HBL20405 Specification Sheet
