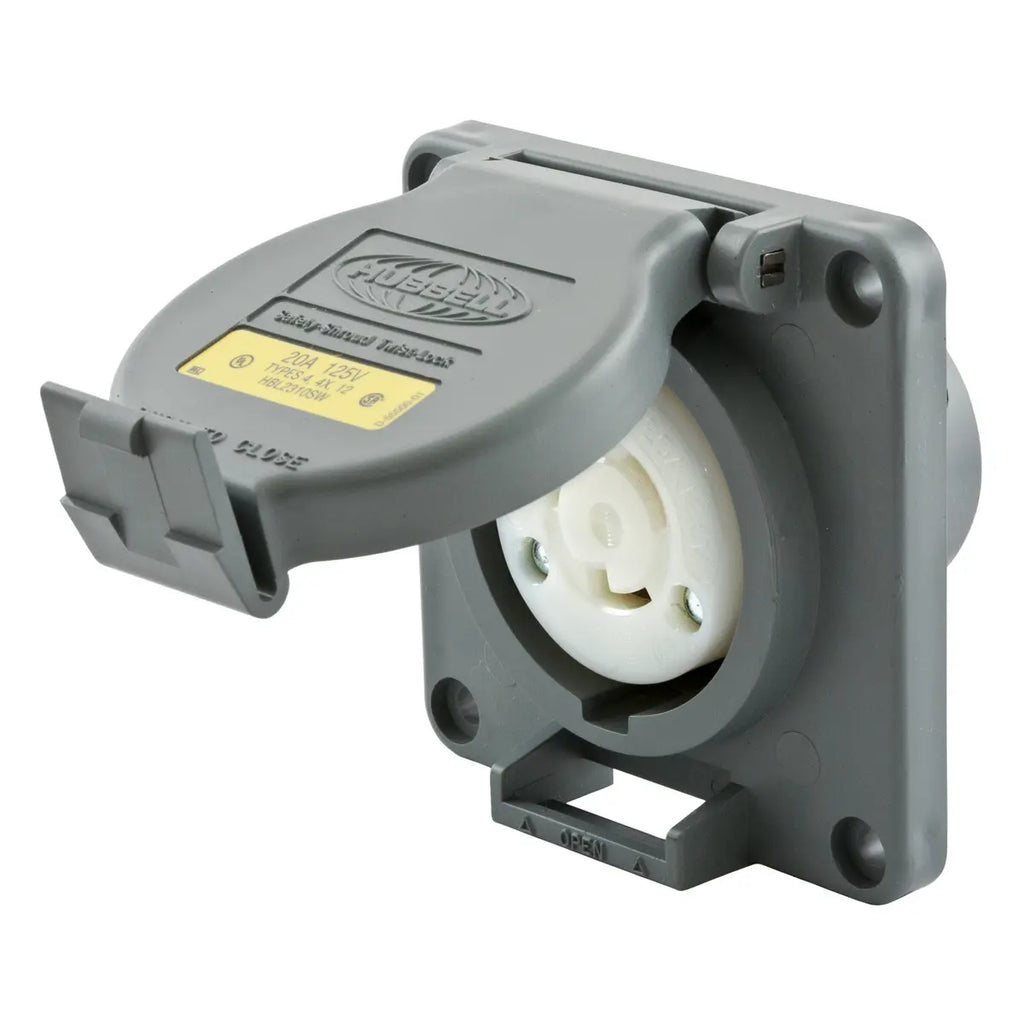

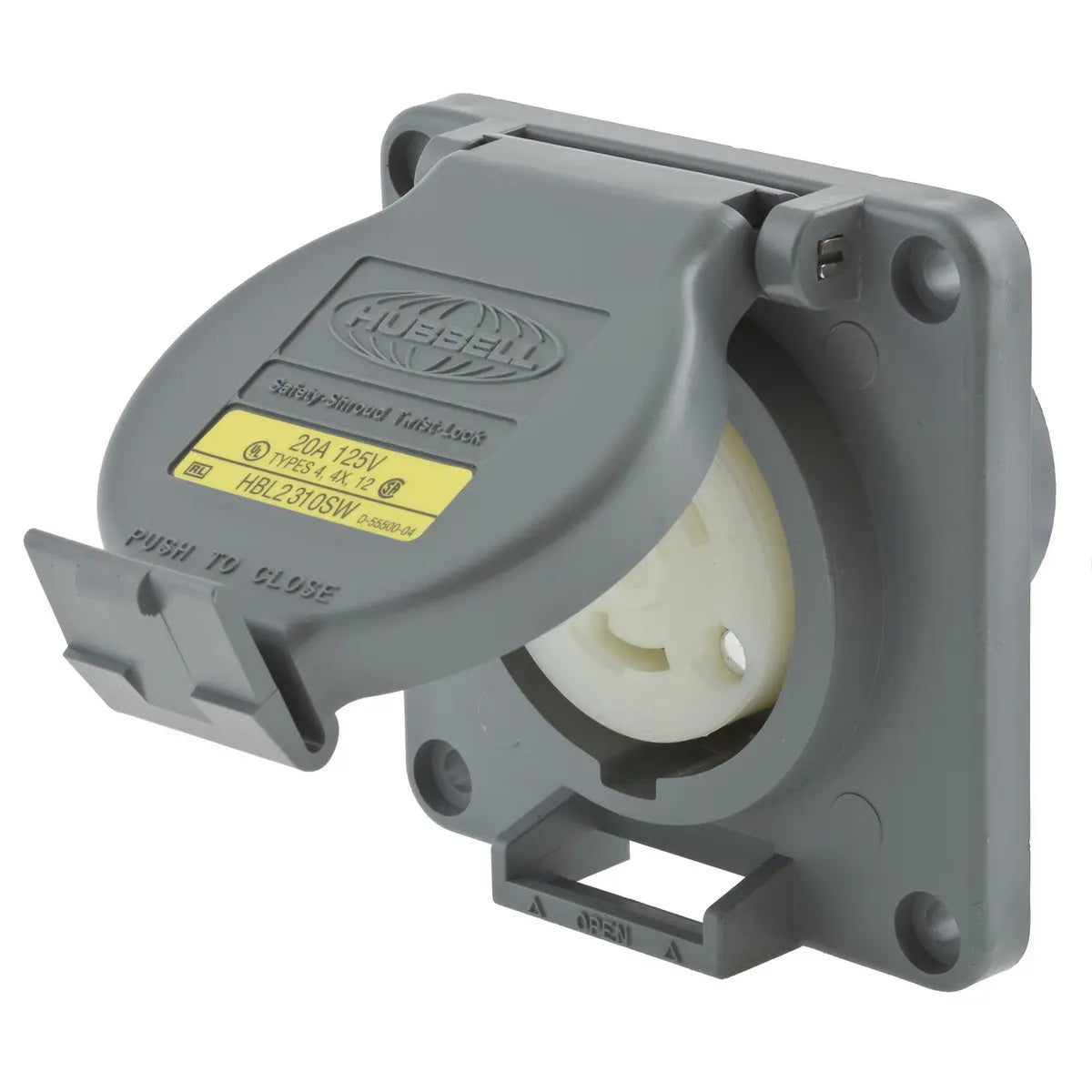

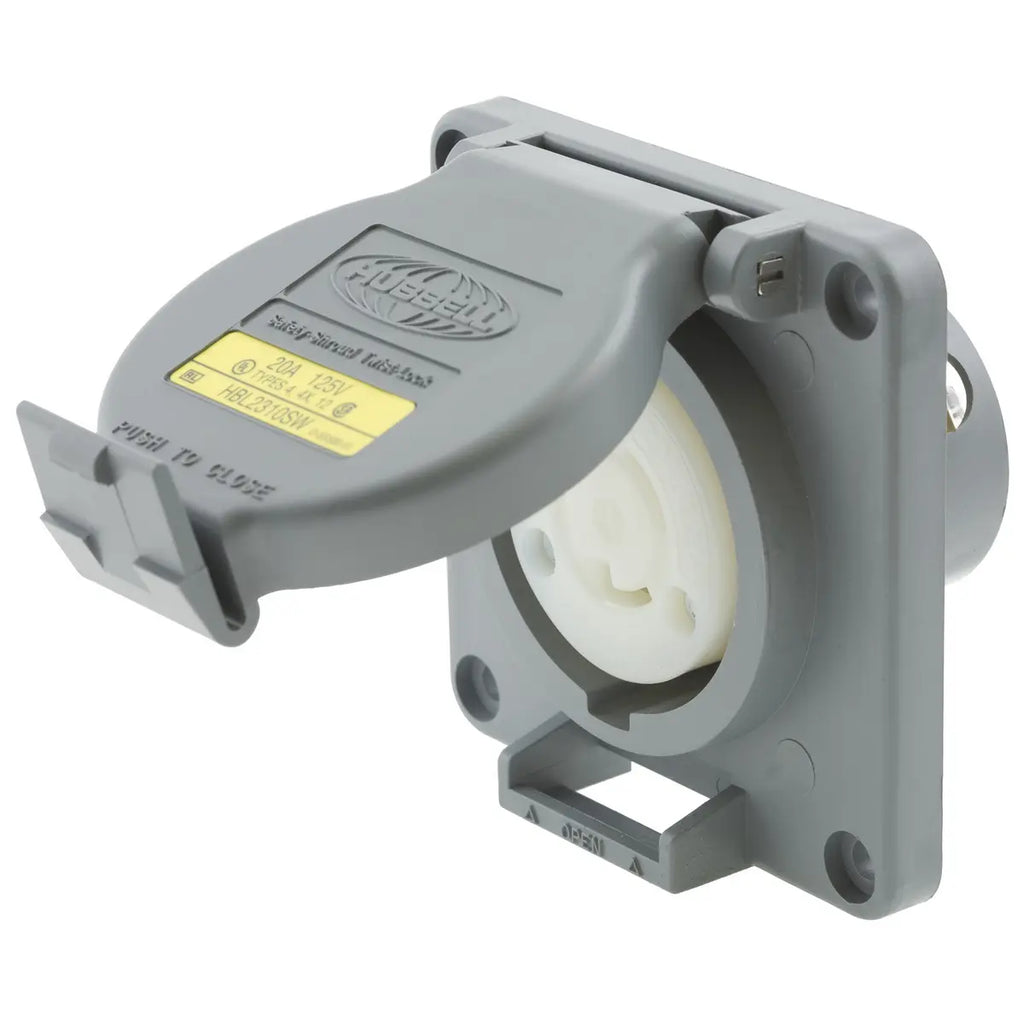

HBL2310SW - Hubbell Wiring Device-Kellems - Twist-Lock 20A 125V 2P 3W Watertight Safety Shroud Receptacle L5-20R Screw Terminal

HBL2310SW - Hubbell Wiring Device-Kellems - Twist-Lock 20A 125V 2P 3W Watertight Safety Shroud Receptacle L5-20R Screw Terminal

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, PBT housing and flange, Gray.

• UL type 4X environmental seal while in use and when closed
• High impact, thermoplastic housing for heavy-duty industrial environments
• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use

GENERAL SPECIFICATIONS

Catalog Number	HBL2310SW
Environmental Conditions	Watertight
EU RoHS Indicator	Yes
Horsepower - Maximum	1
Item Type	20A Watertight Safety-Shroud® Receptacle
Material	Thermoplastic
Material - Mounting Hardware	Screw Mounting
OEM Brand Name	Hubbell Wiring Device-Kellems
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Performance	Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications	Body Contact Carrier - Natural (white) nylon Contacts - Brass Drive Screws - Steel, zinc plated Housing / Cover - Gray RPT Lift-Cover Spring & Pin - Stainless Steel Terminal Retainer - Clear polycarbonate
Type	Device
UPC	783585231006



Dimensions

Dimensions	3.75 in x 3.75 in x 2.69 in
Display Size	Standard Sized Product
Height	2.69 in
Length	3.75 in
Weight	0.55 lb
Width	3.75 in

Electrical Ratings

Amperage Rating	20 A
Connectivity	Screw Terminals
Current / Amperage Rating	20 A
Current Rating	20 A
Dielectric Strength	Withstands 2,000V minimum
Phase	Single Phase
Voltage Rating	125 V
Voltage Rating Description	125 VAC

Conductor Related

Number Of Poles	2-Pole
Number Of Wires	3-Wire
Wire Size	#16 AWG to #8 AWG

Operational

Horsepower - Maximum	1
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Performance	Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Logistics

Carton Quantity	5
Pallet Quantity	950
