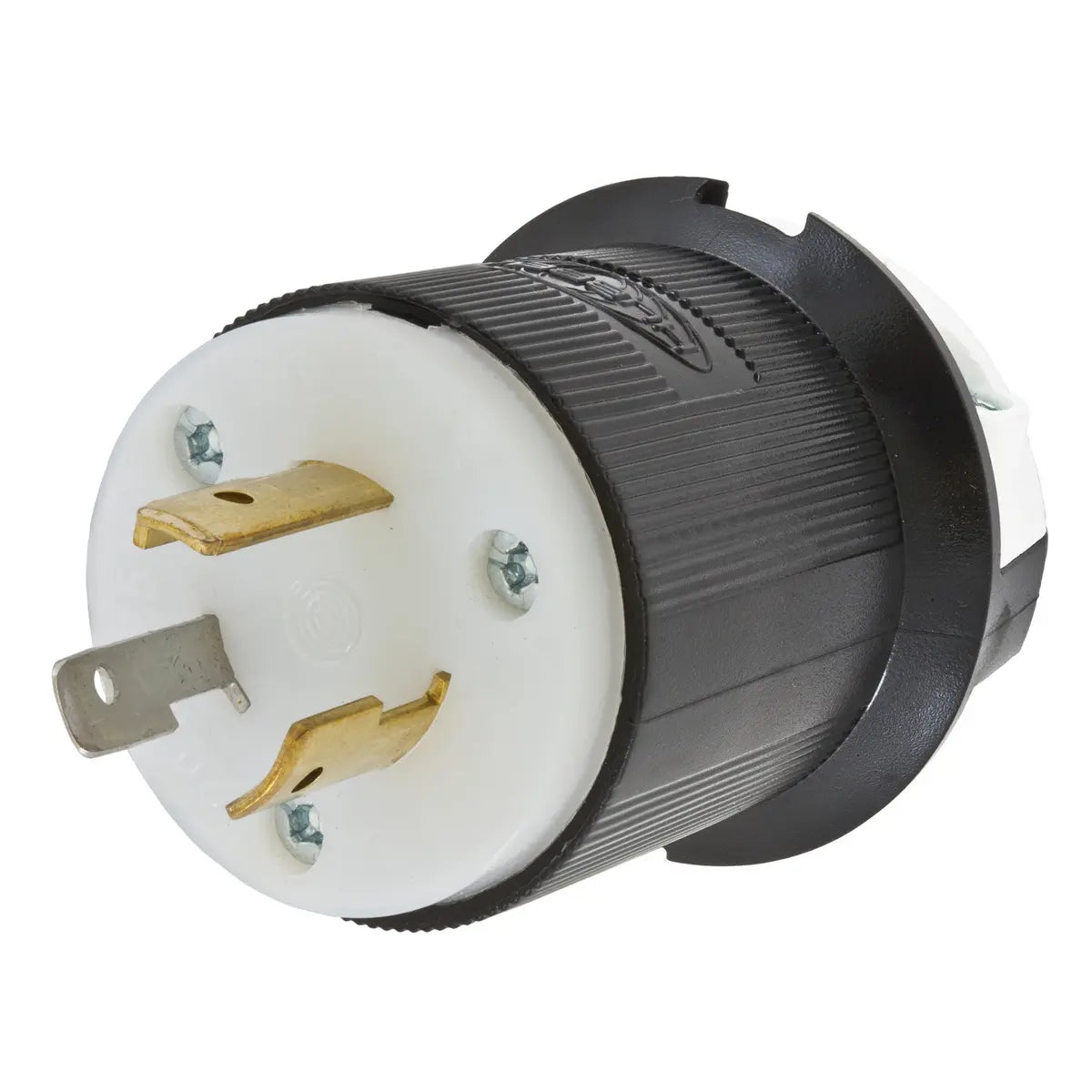

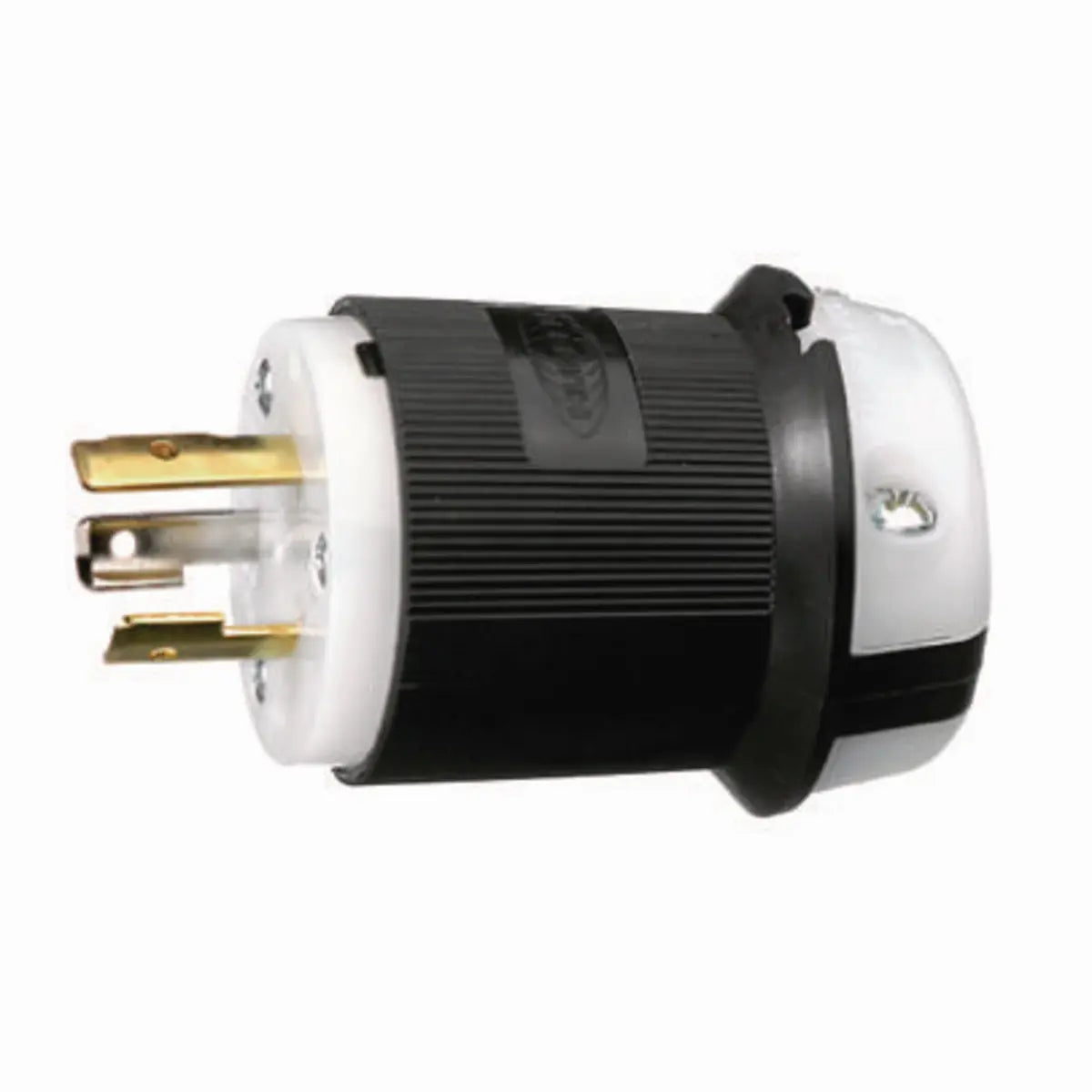

HBL2311 - Hubbell Wiring Device-Kellems - 20A 125V 2-Pole 3-Wire Grounding Twist-Lock Device with Male Plug
HBL2311 - Hubbell Wiring Device-Kellems - 20A 125V 2-Pole 3-Wire Grounding Twist-Lock Device with Male Plug
Roll over image to zoom in Click on image to zoom
HBL2311 - Hubbell Wiring Device-Kellems - 20A 125V 2-Pole 3-Wire Grounding Twist-Lock Device with Male PlugHBL2311 - Hubbell Wiring Device-Kellems - 20A 125V 2-Pole 3-Wire Grounding Twist-Lock Device with Male Plug

HBL2311 - Hubbell Wiring Device-Kellems - 20A 125V 2-Pole 3-Wire Grounding Twist-Lock Device with Male Plug

HubbellSKU: HUBHBL2311
Price:
$18.50
Stock:
Sold out

Description

HBL2311 - Hubbell Wiring Device-Kellems - 20A 125V 2-Pole 3-Wire Grounding Twist-Lock Device with Male Plug

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Black and White Nylon.

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Standard Product

GENERAL SPECIFICATIONS

Catalog Number HBL2311
Color Black, White
Cord Range 0.360"-0.930" (9-24)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 1
Item Type 20A Male Insulgrip® Plug
Material Nylon
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications
  • Assembly Screws - Steel - nickel plated
  • Blades - Brass
  • Housing / Cord Clamp - Nylon
  • Terminal Clamp - Cold rolled steel – nickel plated
  • Terminal Retainer - Clear polycarbonate
  • Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
Type Plugs
UPC 783585037707



Dimensions

Dimensions 2.26 in x 2.26 in x 2.75 in
Display Size Standard Sized
Height 2.75 in
Length 2.26 in
Weight 0.25 lb
Width 2.26 in



Electrical Classifications

Amperage Rating 20 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating 125 VAC
Voltage Rating Description 125 VAC



Conductor Related

Cable Range 0.360 - 0.930 in
Number Of Poles 2-Pole
Number Of Wires 3-Wire
 Wire Size #16 AWG to #8 AWG



Operational

Horsepower - Maximum  1
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498


Configuration

Cord Type  All Listed Portables

Logistics

Carton Quantity 10
Pallet Quantity 3060



PRODUCT DATASHEET

Wiring HBL2311 Specification Sheet
