Description

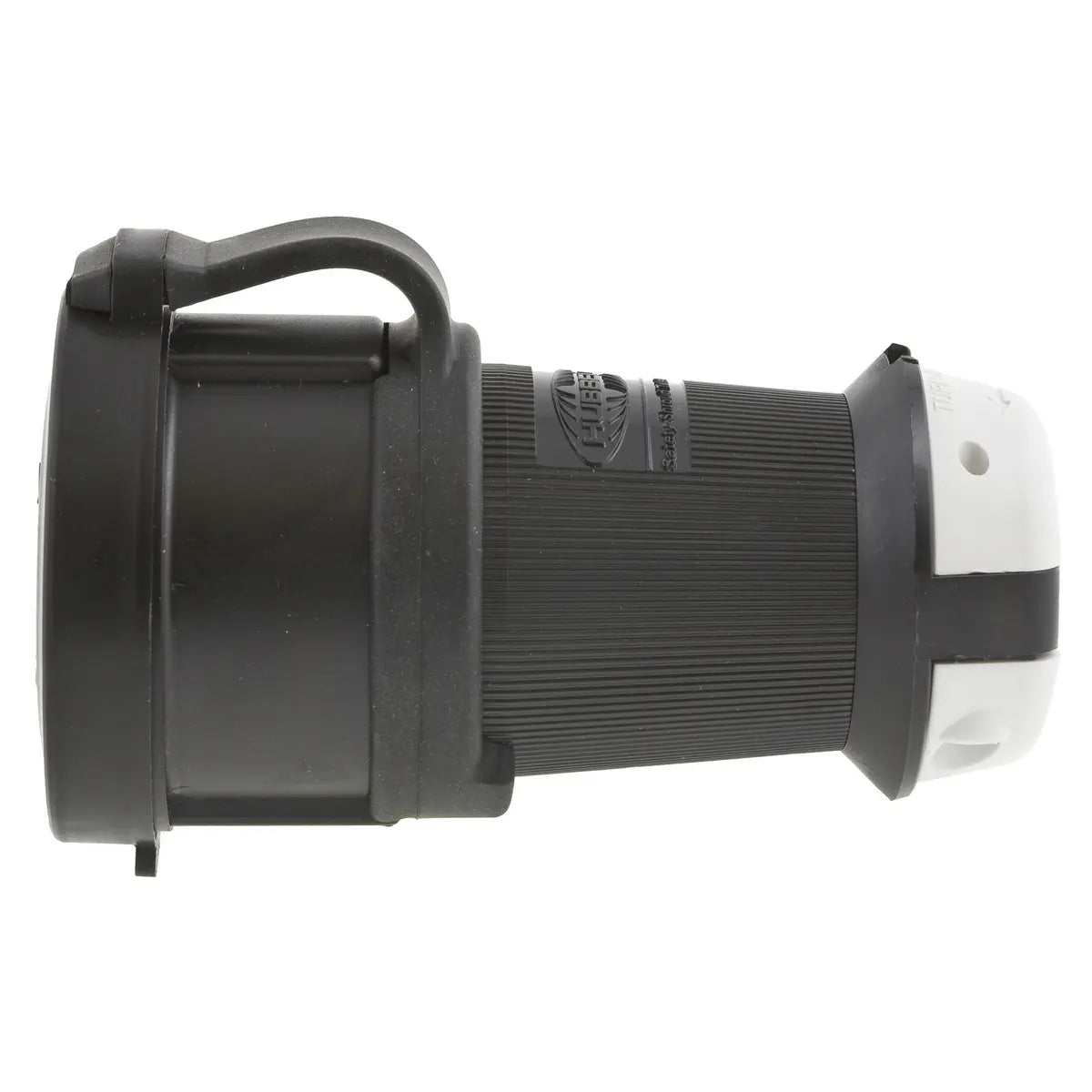

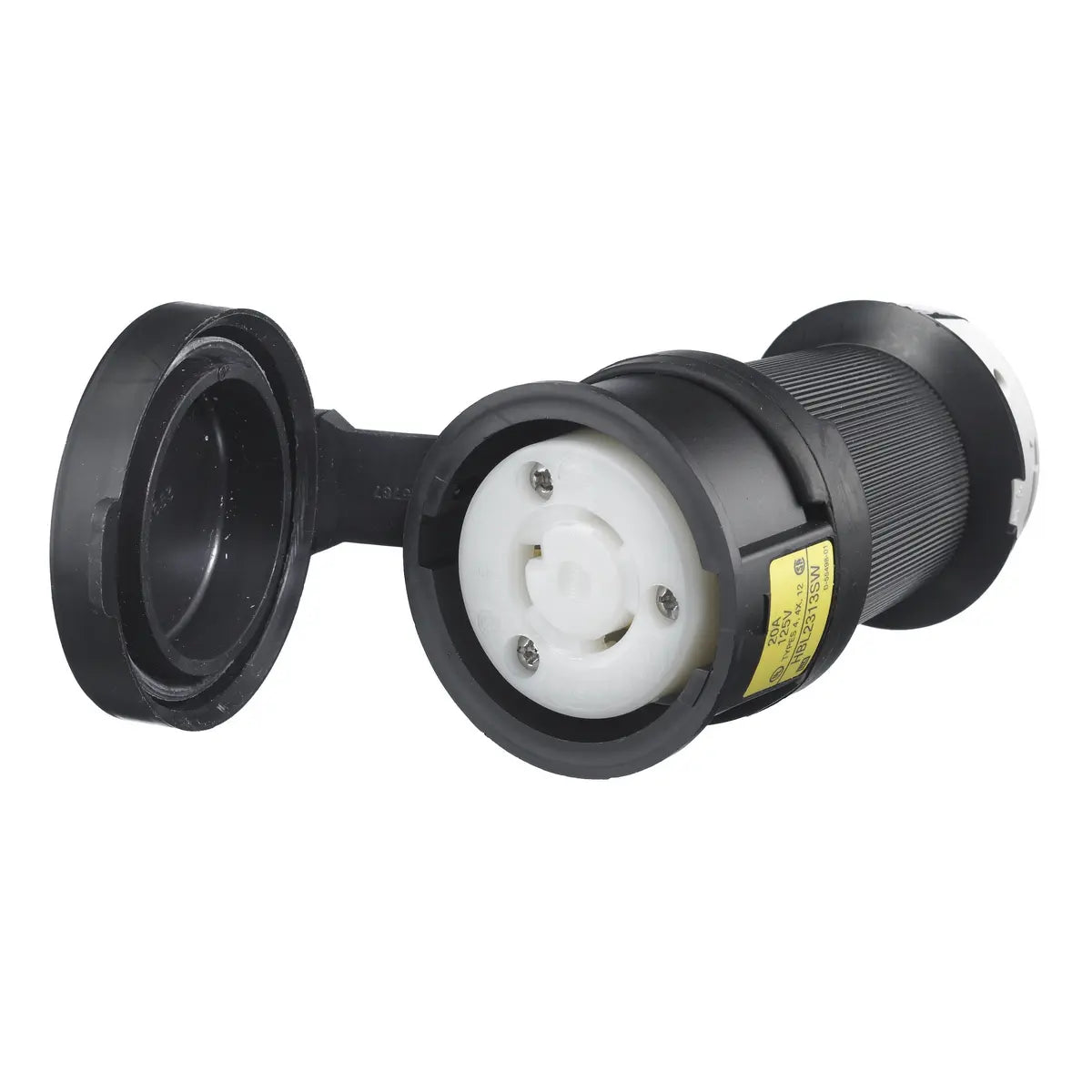

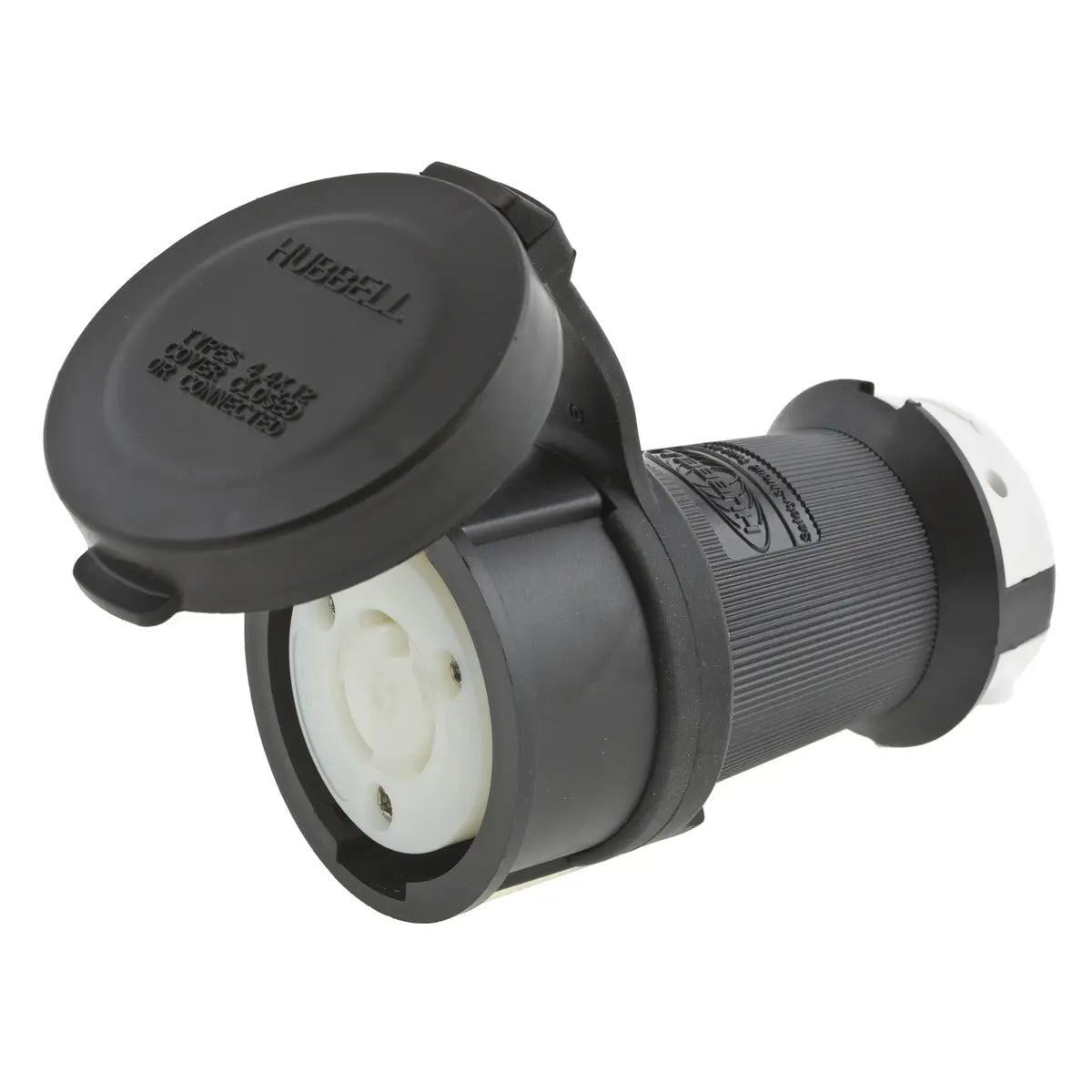

HBL2313SW - Hubbell Wiring Device-Kellems - 20A 125V 2 Pole 3 Wire with Grounding Twist-Lock Device with Female Connector Body
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Black PBT housing, White PBT clamps.

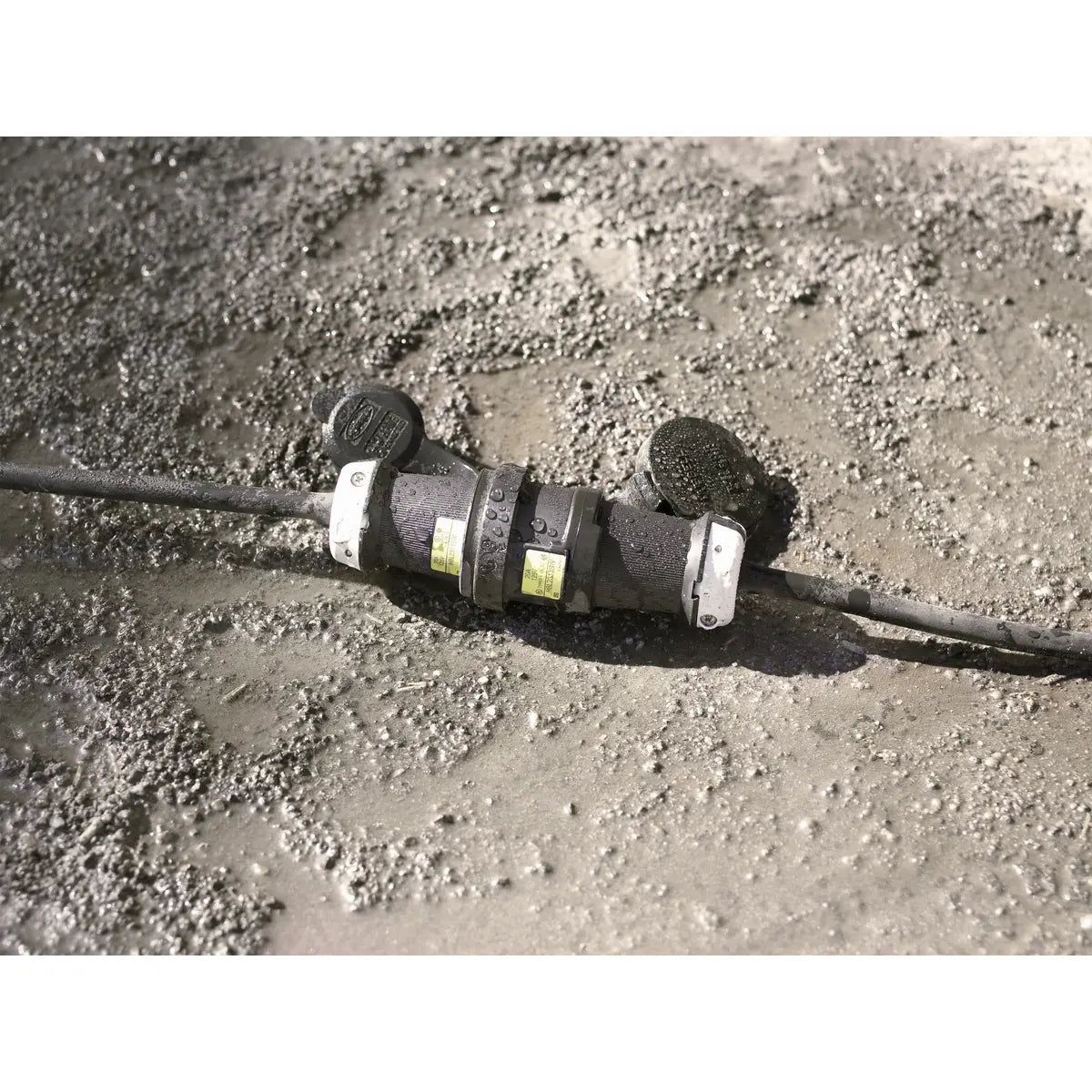

- UL Type 4X Environmental seal protects connection while in use.
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments

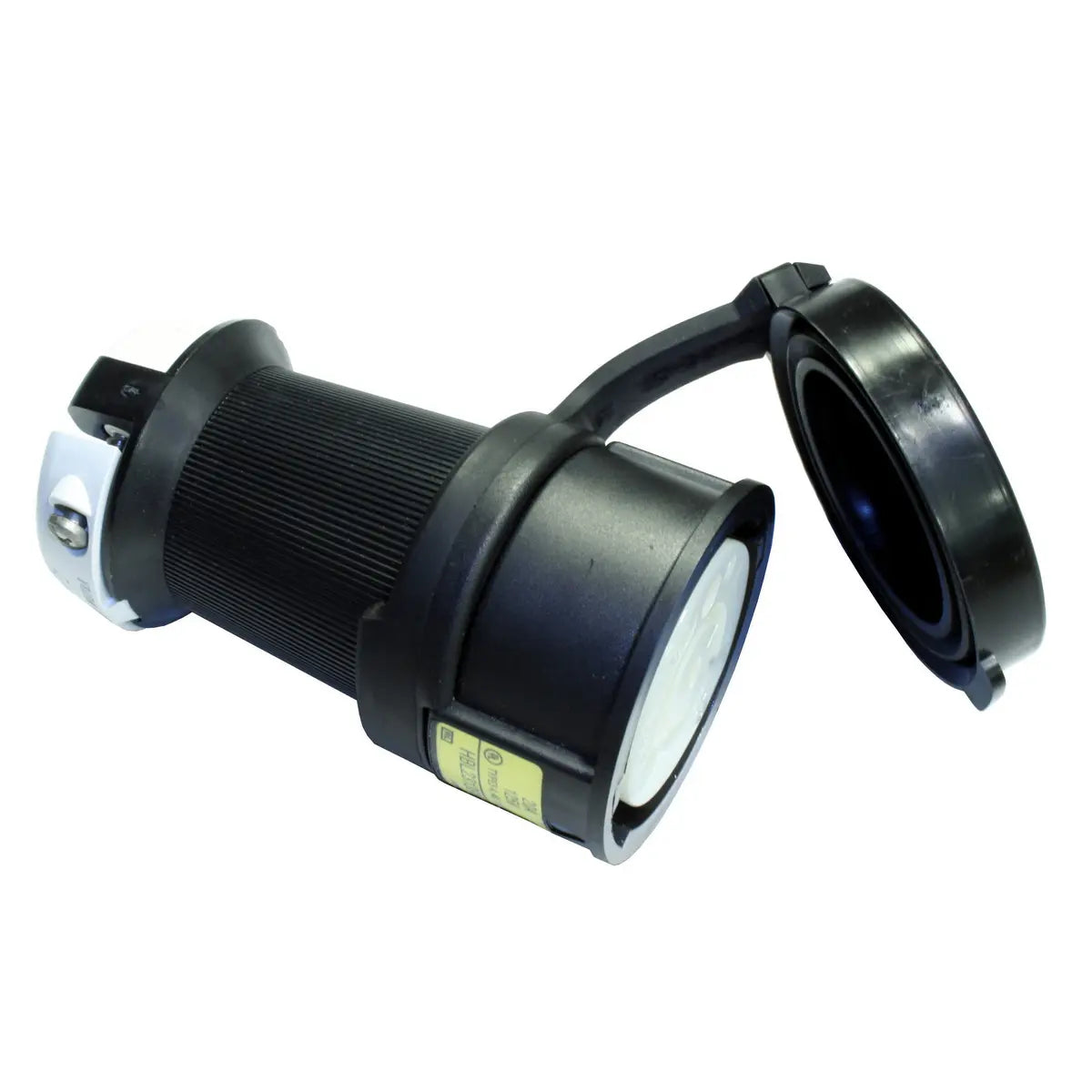

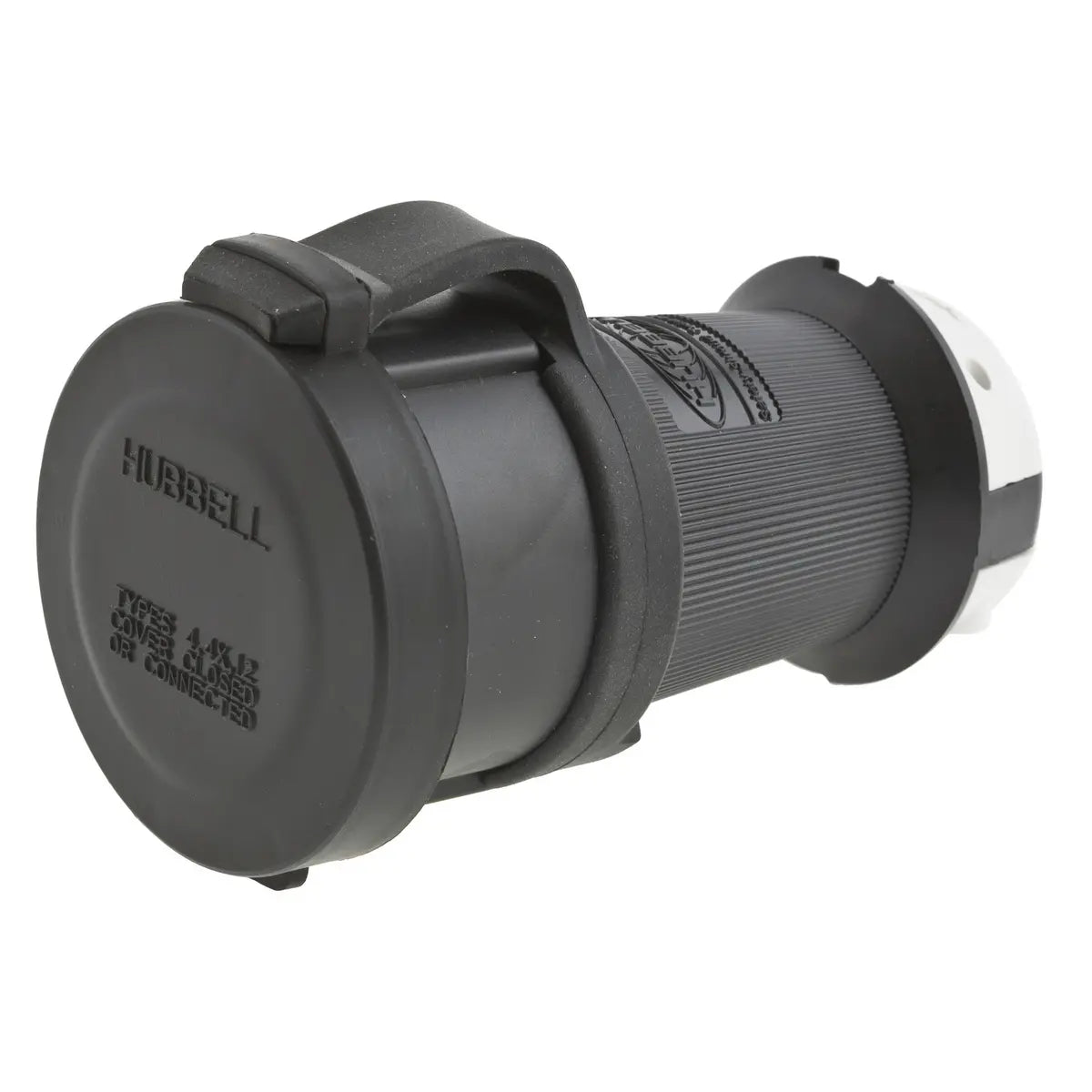

- Closure cap is included for environmental seal when device is not in use
- Superior cord grip design protects terminations from excess strain.
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number | HBL2313SW |
| Color | Black, White |
| Cord Range | 0.360"-0.930" (9-24) |
| Environmental Conditions | Watertight |
| EU RoHS Indicator | Yes |
| Horsepower - Maximum | 1 |
| Insulation | Insulated Body |
| Item Type | 20A Watertight Safety-Shroud® Connector |
| Material | Composite |
| Material - Mounting Hardware | Cord Mounted |
| Number Of Poles | 2-Pole |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Specifications |
|
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Type | Connector Body |
| UPC | 783585231044 |
Dimensions
| Dimensions | 2.57 in x 2.57 in x 4.40 in |
| Display Size | Standard |
| Height | 4.4 in |
| Length | 2.57 in |
| Weight | 0.6 lb |
| Width | 2.57 in |
Electrical Ratings
| Amperage Rating | 20 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 20 A |
| Current Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating | 125 VAC |
| Voltage Rating Description | 125 VAC |
Driver Related
| Cable Range | 0.360 - 0.930 in |
| Number Of Wires | 3-Wire |
| Wire Size | #16 AWG to #8 AWG |
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 960 |
