Description

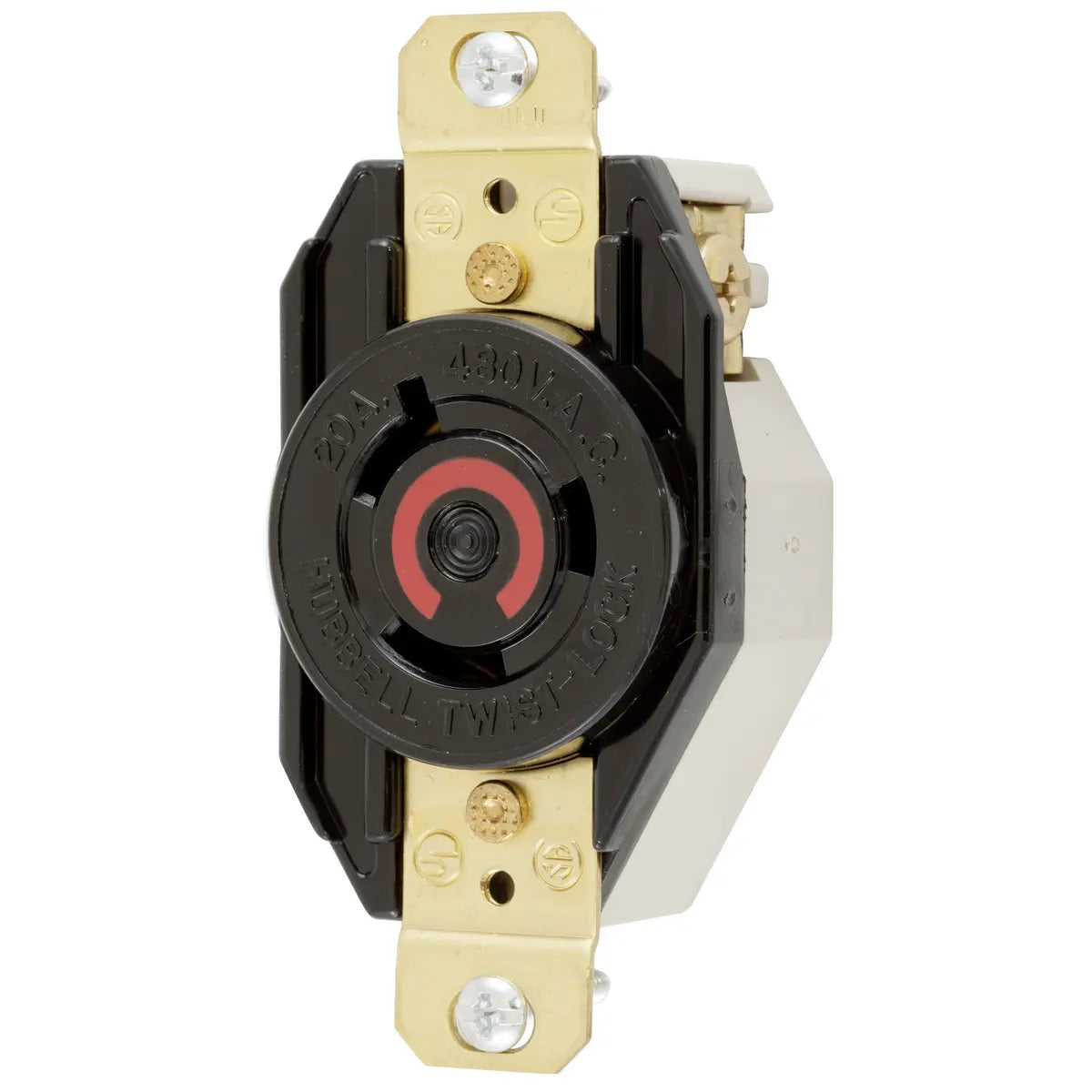

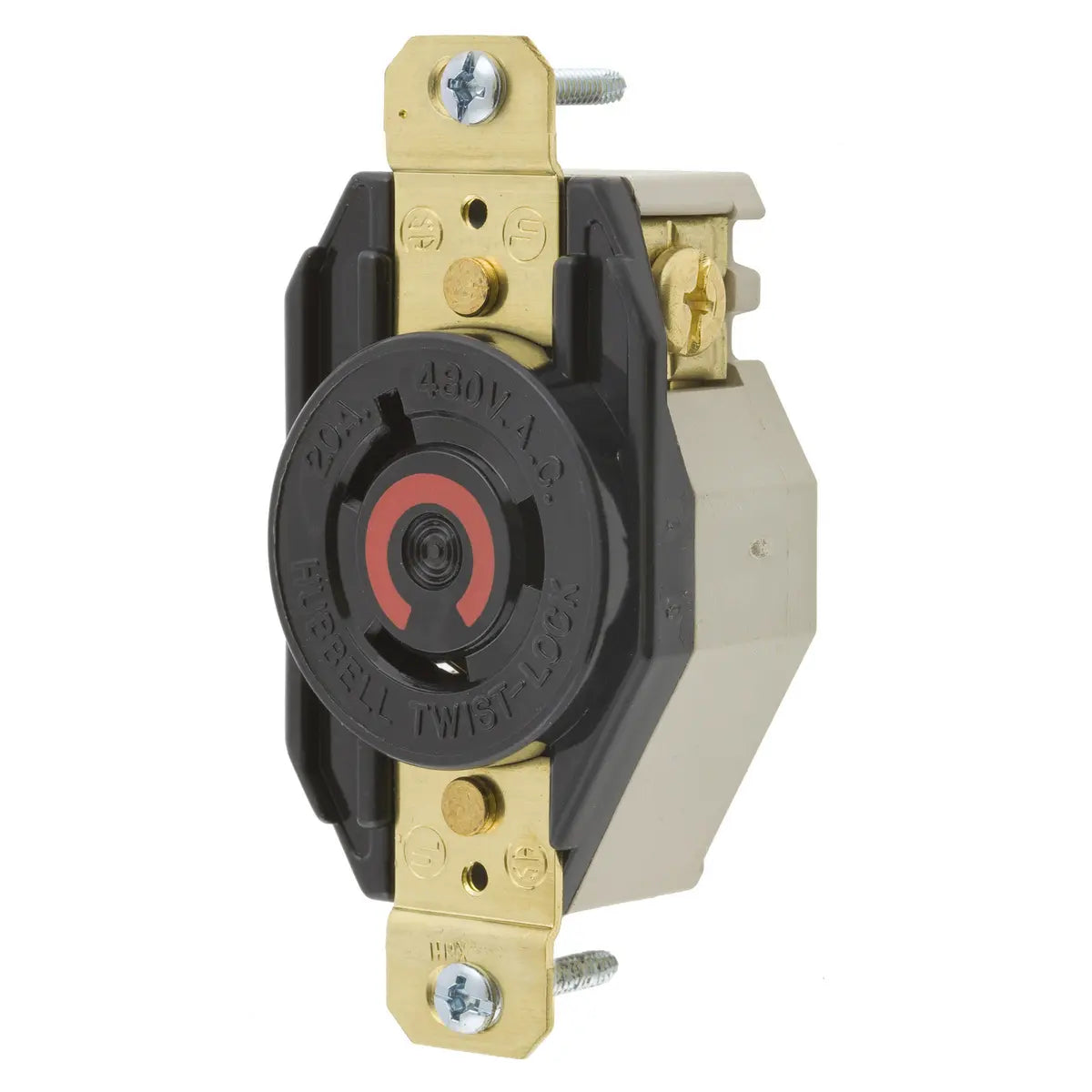

HBL2340 - Hubbell Wiring Device-Kellems - 20A 480V AC 2-Pole 3-Wire Grounding Twist-Lock Flush Receptacle
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 480V AC, 2-Pole 3-Wire Grounding, NEMA L8-20R, Screw Terminal, Nylon face, Back and side wire, Black.
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Standard
GENERAL SPECIFICATIONS
| Catalog Number | HBL2340 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Item Type | Single Flush Receptacles |
| Material | Nylon |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Specifications |
|
| Type | Single Flush Receptacle |
| UPC | 783585235691 |
Dimensions
| Dimensions | 3.28 in x 1.7 in x 1.23 in |
| Display Size | Standard Sized Product |
| Height | 1.23 in |
| Length | 3.28 in |
| Weight | 0.25 lb |
| Width | 1.7 in |
Electrical Ratings
| Amperage Rating | 20 A |
| Connectivity | Back and Side Wired Screw Terminals |
| Current / Amperage Rating | 20 A |
| Current Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Single Phase |
| Voltage Rating | 480 VAC |
| Voltage Rating Description | 480 VAC |
Conductor Related
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Wire Size | #16 AWG to #8 AWG |
Operational
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 2520 |
