HBL2433 - Hubbell Wiring Device-Kellems - 480V AC -3-Pole 4-Wire with ground Twist-Lock Locking devices
Roll over image to zoom in Click on image to zoom
HBL2433 - Hubbell Wiring Device-Kellems - 480V AC -3-Pole 4-Wire with ground Twist-Lock Locking devices

HBL2433 - Hubbell Wiring Device-Kellems - 480V AC -3-Pole 4-Wire with ground Twist-Lock Locking devices

HubbellSKU: HUBHBL2433
Price:
$36.23
Stock:
Sold out

Description

HBL2433 - Hubbell Wiring Device-Kellems - 480V AC -3-Pole 4-Wire with ground Twist-Lock Locking devices

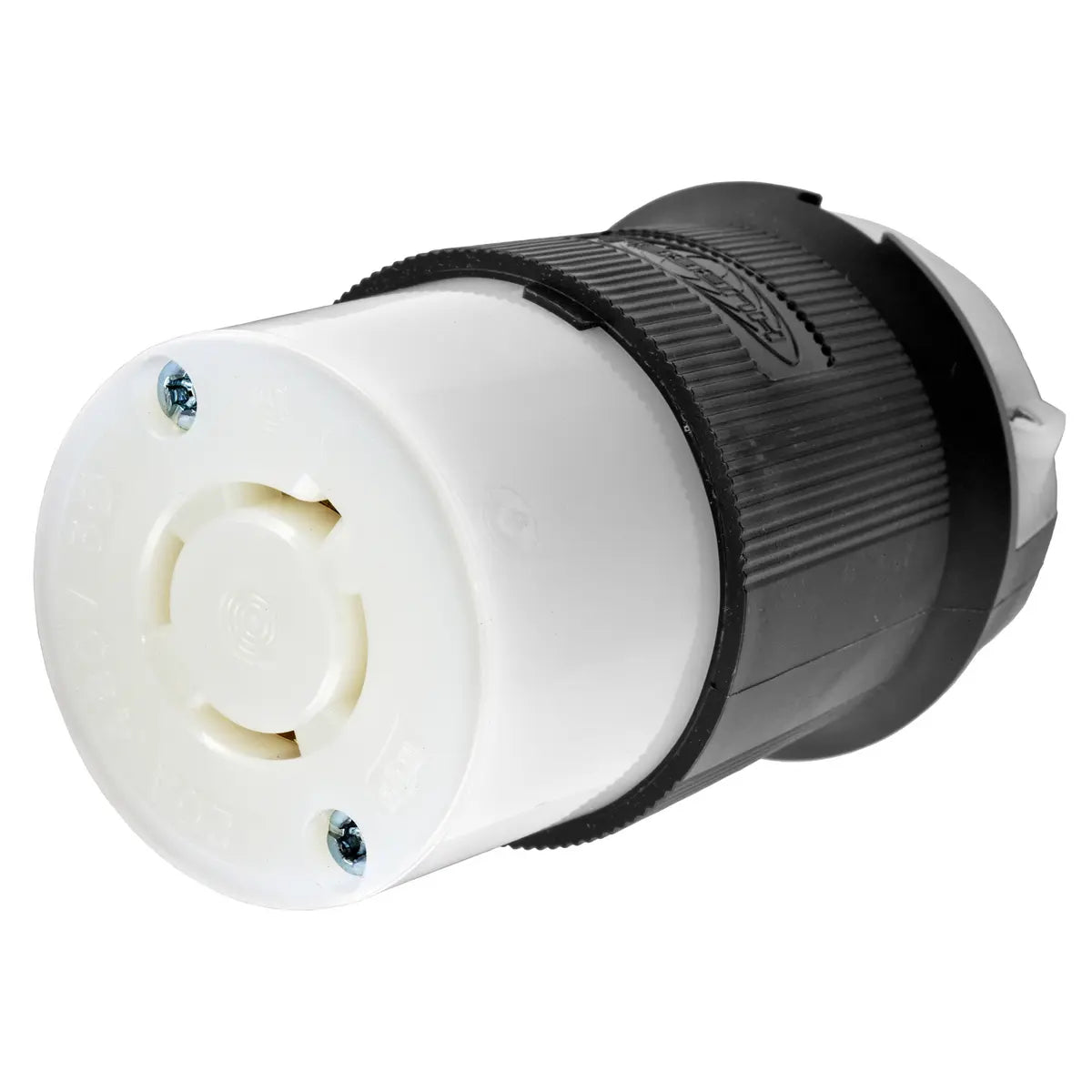

Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20R, Screw Terminal, Black and White Nylon.

  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Standard Product

GENERAL SPECIFICATIONS

Catalog Number HBL2433
Color Black, White
Cord Range 0.350"-1.150" (9-29)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 5
Insulation Insulated Body
Item Type 20A Insulgrip® Connector
Material Nylon
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications
  • Assembly Screws - Steel - nickel plated
  • Contacts - Brass
  • Housing / Cord Clamp - Nylon
  • Terminal Clamp - Cold rolled steel – nickel plated
  • Terminal Retainer - Clear polycarbonate
  • Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
Temperature Rating Maximum Continuous: 75°C; Minimum Continuous: -40°C w/o impact, -25°C with impact
Type Connector Body
UPC 783585038292



Dimensions

Dimensions  2.33 in × 2.33 in × 3.86 in
Display Size Standard
Height 3.86 in
Length 2.33 in
Weight 0.35 lb
Width 2.33 in



Electrical Ratings

Amperage Rating 20 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 2,000V minimum
Phase Three Phase
Voltage Rating

3 Phase 480 VAC
Voltage Rating Description

3 Phase 480 VAC


Conductor Related

Cable Range 0.350 – 1.150 in
Number Of Poles 3-Pole
Number of Wires 4-Wire
Wire Size #16 AWG to #8 AWG



Operational

Horsepower - Maximum  5
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.


Logistics

Carton Quantity 30
Pallet Quantity 2880



PRODUCT DATASHEET

Wiring HBL2433 Specification Sheet
