HBL2521 - Hubbell Wiring Device-Kellems - 20A Male Plug Twist-Lock Locking Devices

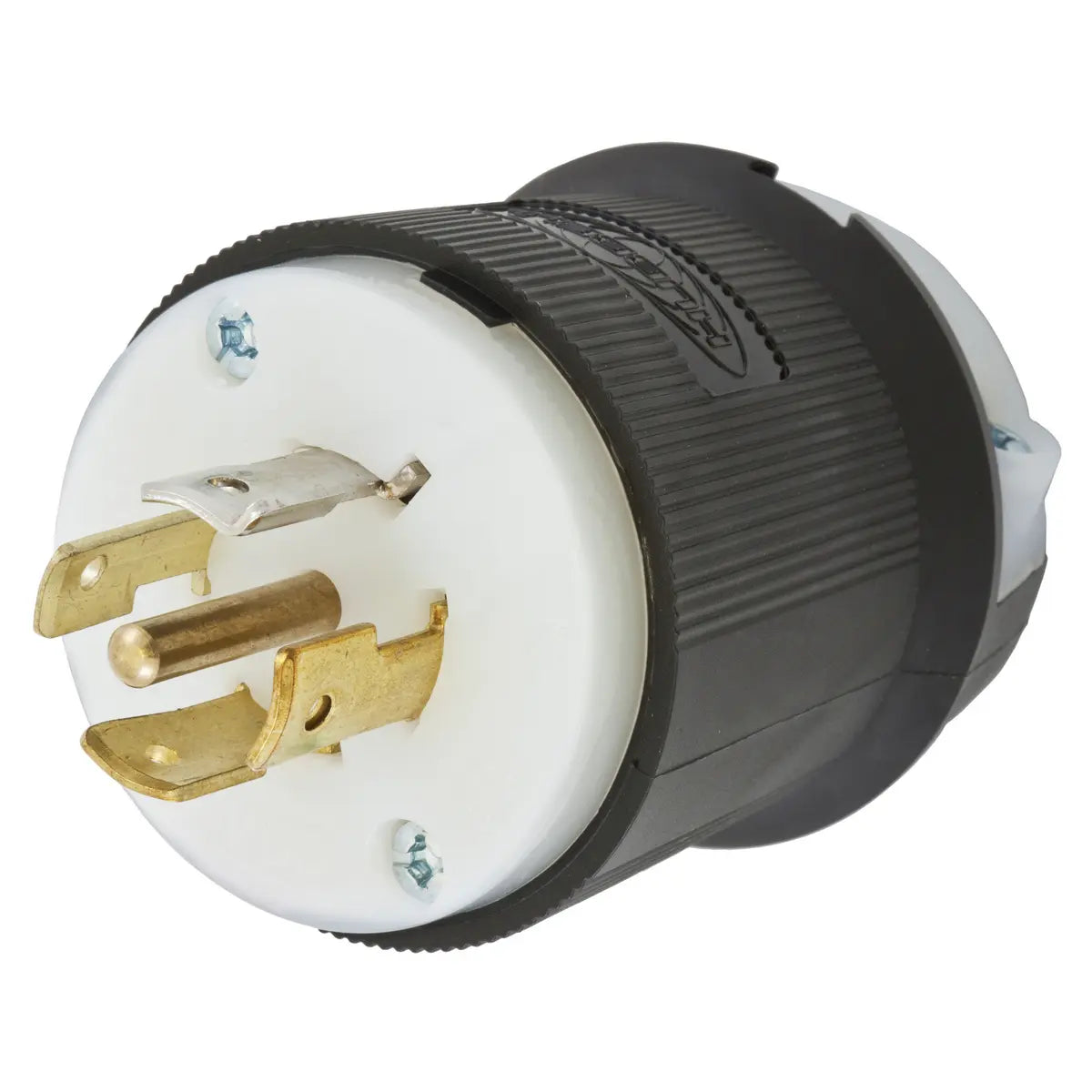

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 3-Phase WYE 277/480V AC, 4-Pole 5-Wire Grounding, NEMA L22-20R, Screw Terminal, Black and White Nylon.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
GENERAL SPECIFICATIONS
| Catalog Number |
HBL2521 |
| Color |
Black, White |
| Cord Range |
0.350"-1.150" (9-29) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Contact Manufacturer |
| Horsepower - Maximum |
5 |
| Item Type |
20A Male Insulgrip® Plug |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Assembly Screws - Steel - nickel plated
- Blades - Brass
- Housing / Cord Clamp - Nylon
- Terminal Clamp - Cold rolled steel – nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
|
| Type |
Plugs |
| UPC |
783585038599 |
Dimensions
| Dimensions |
2.33 in x 2.33 in x 2.75 in |
| Display Size |
Standard Size |
| Height |
2.75 in |
| Length |
2.33 in |
| Weight |
0.35 lb |
| Width |
2.33 in |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
3 Phase WYE |
| Voltage Rating |
3 Phase WYE 277/480 VAC |
| Voltage Rating Description |
3 Phase WYE 277/480 VAC |
Conductor Related
| Cable Range |
0.350 - 1.150 in |
| Number Of Poles |
4-Pole |
| Number of Wires |
5-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Operational
| Horsepower - Maximum |
5 |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Configuration
| Cord Type |
All Listed Portables
|
Logistics
| Carton Quantity |
30 |
| Pallet Quantity |
2880 |
PRODUCT DATASHEET
Wiring HBL2521 Specification Sheet
