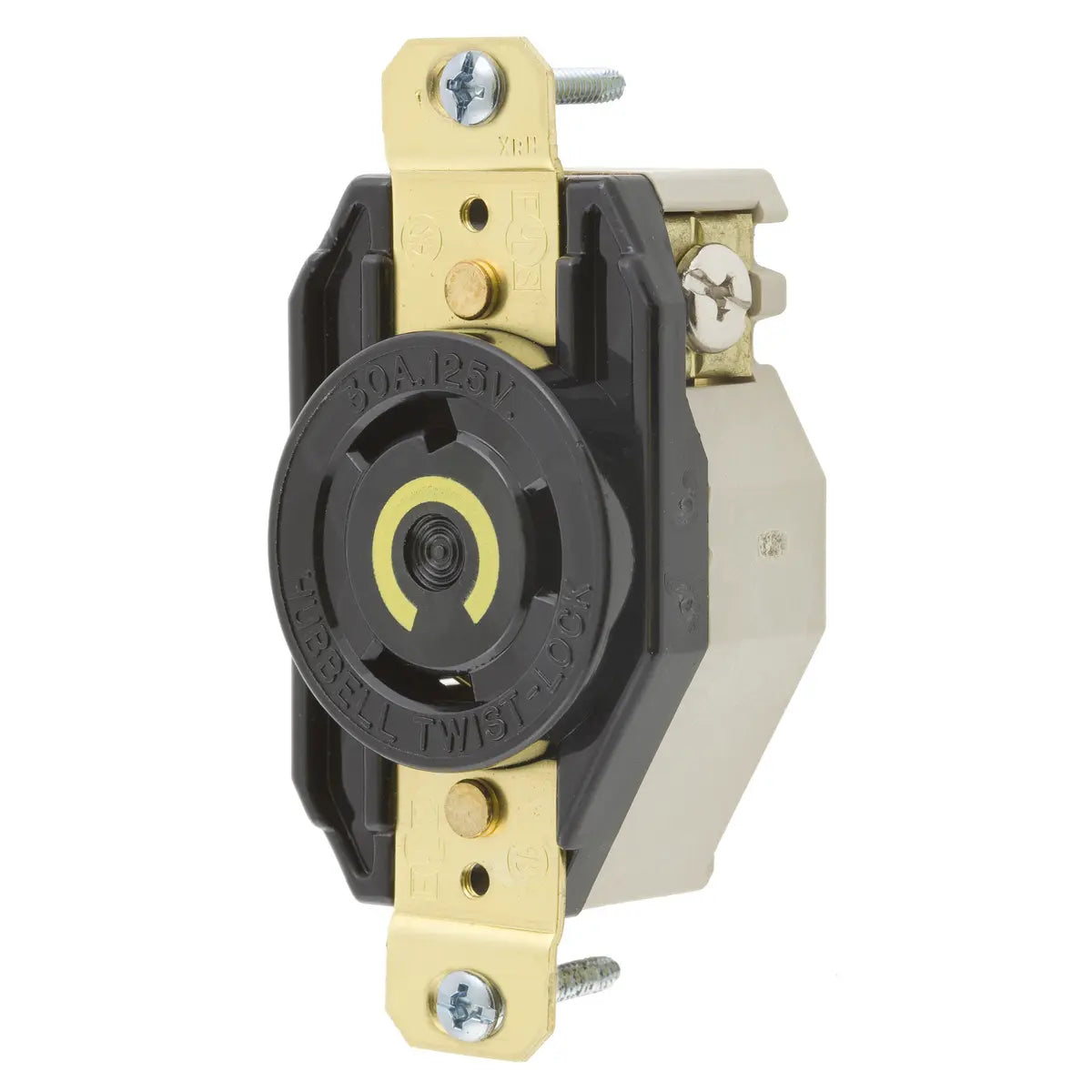

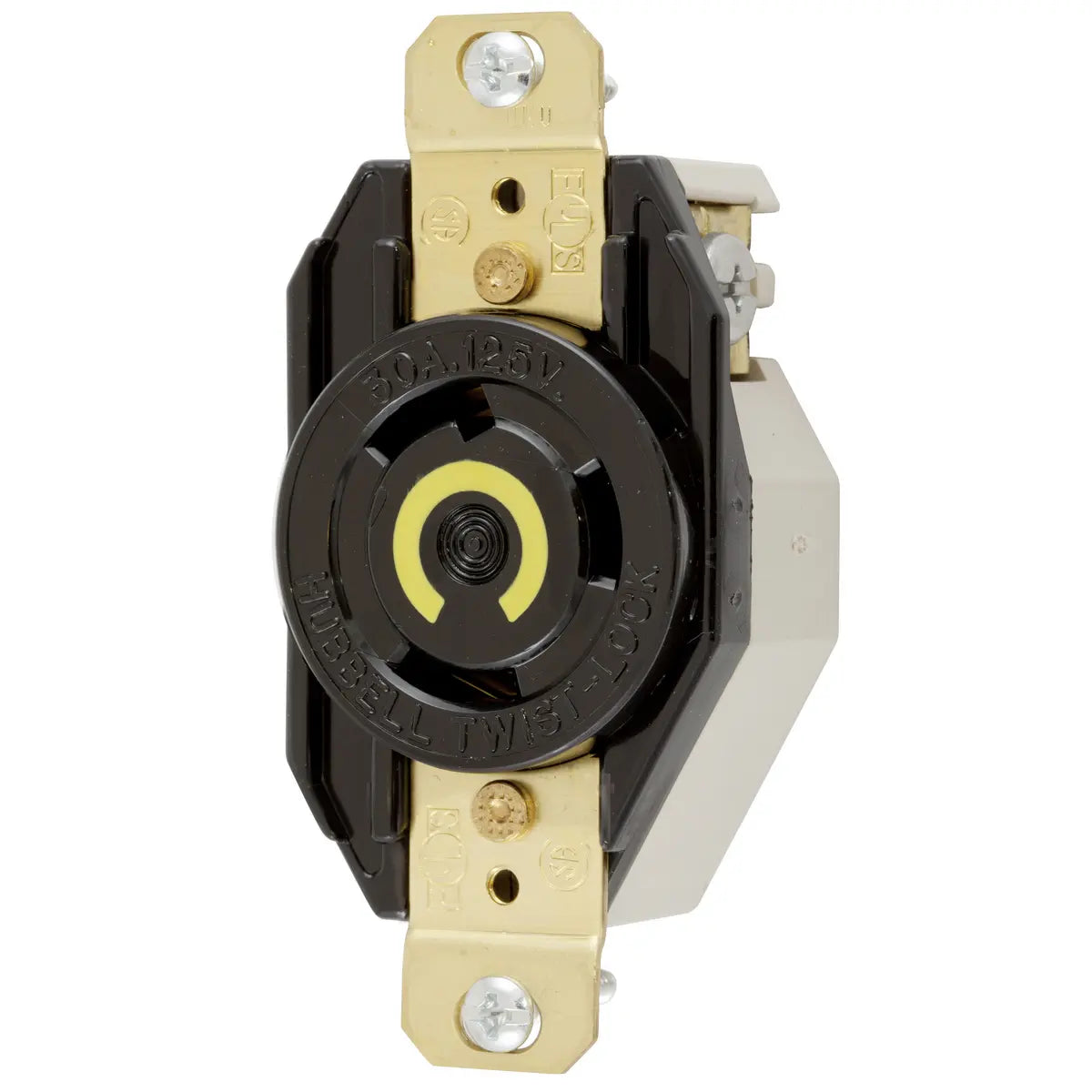

HBL2610 - Hubbell Wiring Device-Kellems - 30A Flush Receptacle Twist-Lock Locking Devices
Locking Devices, Twist-Lock(R), Industrial, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Black.
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Standard
GENERAL SPECIFICATIONS
| Catalog Number |
HBL2610 |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
2 |
| Item Type |
Single Flush Receptacles |
| Material |
Nylon |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Base - Glass-Reinforced thermoplastic polyester (RTP)
- Contacts - Brass
- Face - Nylon
- Mounting Strap - Brass
- Terminal Screws - #10 - 32 Brass
|
| Type |
Single Flush Receptacle |
| UPC |
783585235929 |
Dimensions
| Dimensions |
3.28 in x 1.70 in x 1.31 in |
| Display Size |
Standard Sized Product |
| Height |
1.31 in |
| Length |
3.28 in |
| Weight |
0.3 lb |
| Width |
1.7 in |
ElectricalRatings
| Amperage Rating |
30 A |
| Connectivity |
Back and Side Wired Screw Terminals |
| Current / Amperage Rating |
30 A |
| Current Rating |
30 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
SinglePhase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 VAC |
ConductorRelated
| Number Of Poles |
2-Pole |
| Number of Wires |
3-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Operational
| Horsepower - Maximum |
2 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
2730 |
