Description

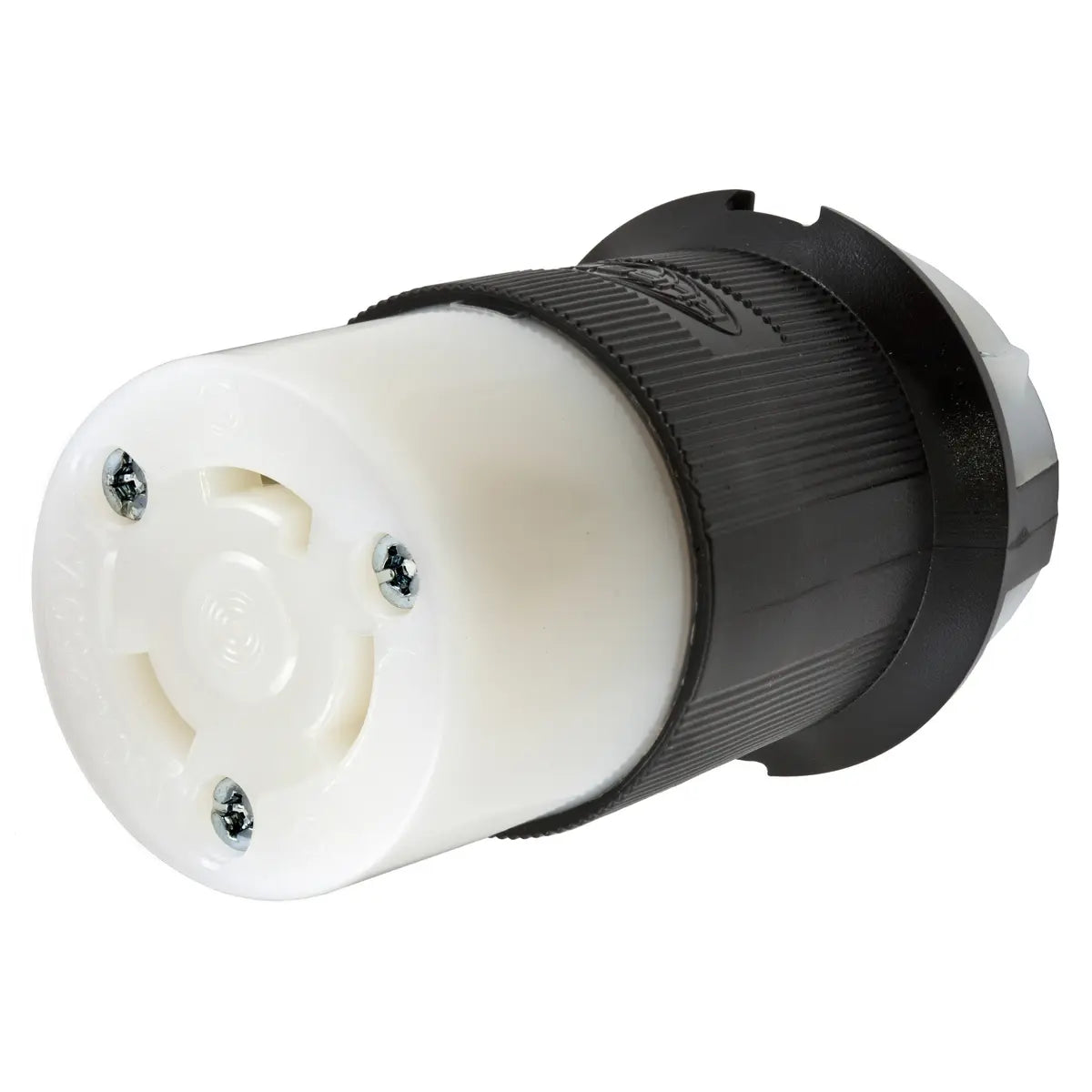

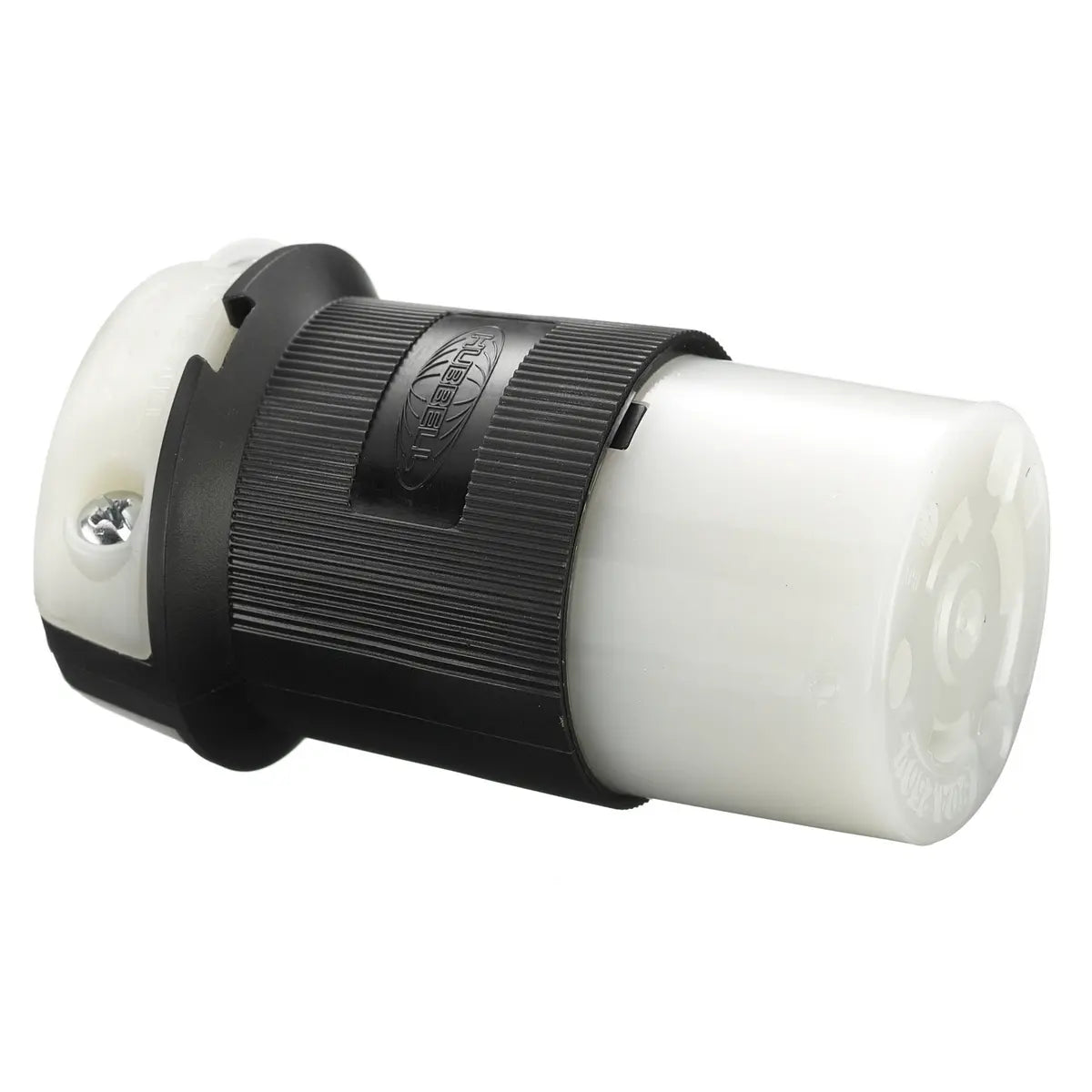

HBL2623 - Hubbell Wiring Device-Kellems - 30A Female Connector Body Twist-Lock Locking Devices
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, Black and White.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number | HBL2623 |
| Color | Black, White |
| Cord Range | 0.360"-0.930" (9-24) |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Insulation | Insulated Body |
| Item Type | 30A Grounding Insulgrip® Connector |
| Material | Nylon |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Specifications |
|
| Type | Connector Body |
| UPC | 783585038865 |
Dimensions
| Dimensions | 2.26 in x 2.26 in x 3.86 in |
| Display Size | Standard |
| Height | 3.86 in |
| Length | 2.26 in |
| Weight | 0.25 lb |
| Width | 2.26 in |
Electrical Ratings
| Amperage Rating | 30 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 30 A |
| Current Rating | 30 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Single Phase |
| Voltage Rating | 250 VAC |
| Voltage Rating Description | 250 VAC |
Conductor Related
| Cable Range | 0.360 - 0.930 in |
| Number Of Poles | 2-Pole |
| Number of Wires | 3-Wire |
| Wire Size | #16 AWG to #8 AWG |
Operational
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 30 |
| Pallet Quantity | 3060 |
