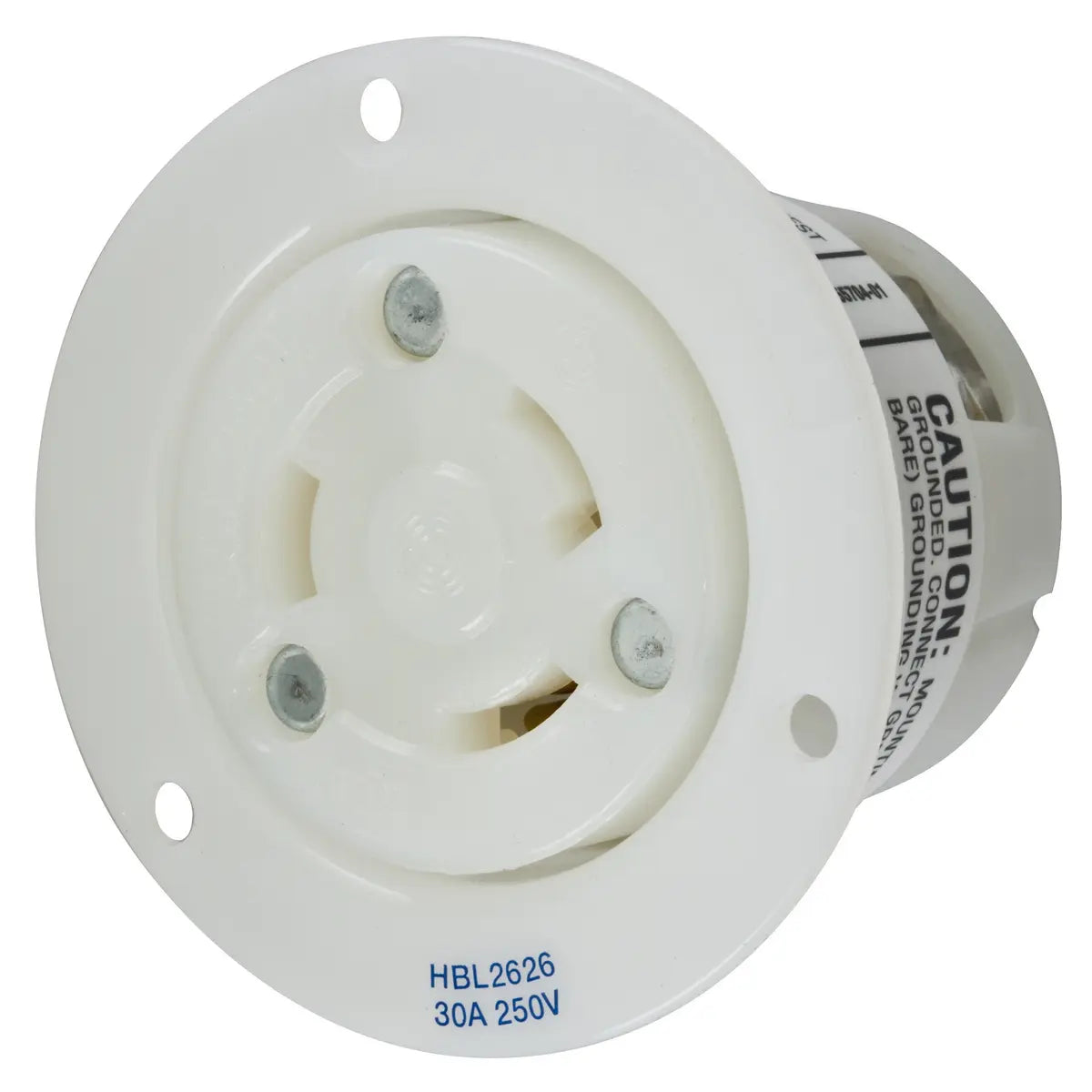

HBL2626 - Hubbell Wiring Device-Kellems - 30A Flanged Receptacle Twist-Lock Locking Devices
Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, White.
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
GENERAL SPECIFICATIONS
| Catalog Number |
HBL2626 |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
2 |
| Item Type |
30A Grounding Insulgrip® Flanged Receptacle |
| Material |
Nylon |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Assembly Screws - Steel - nickel plated
- Contacts - Brass
- Housing - Nylon
- Mounting Screw - Nickel plated brass
- Terminal Clamp - Cold rolled steel – nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
|
| Type |
Flanged Receptacle |
| UPC |
783585038933 |
Dimensions
| Dimensions |
2.88 in x 2.88 in x 2.09 in |
| Display Size |
Standard Sized Product |
| Height |
2.09 in |
| Length |
2.88 in |
| Weight |
0.25 lb |
| Width |
2.88 in |
Electrical Ratings
| Amperage Rating |
30 A |
| Connectivity |
Back Wired Screw Terminals |
| Current / Amperage Rating |
30 A |
| Current Rating |
30 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
250 VAC |
| Voltage Rating Description |
250 VAC |
Conductor Related
| Number Of Poles |
2-Pole |
| Number of Wires |
3-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Operational
| Horsepower - Maximum |
2 |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
2160 |
PRODUCT DATASHEET
Wiring HBL2626 Specification Sheet
