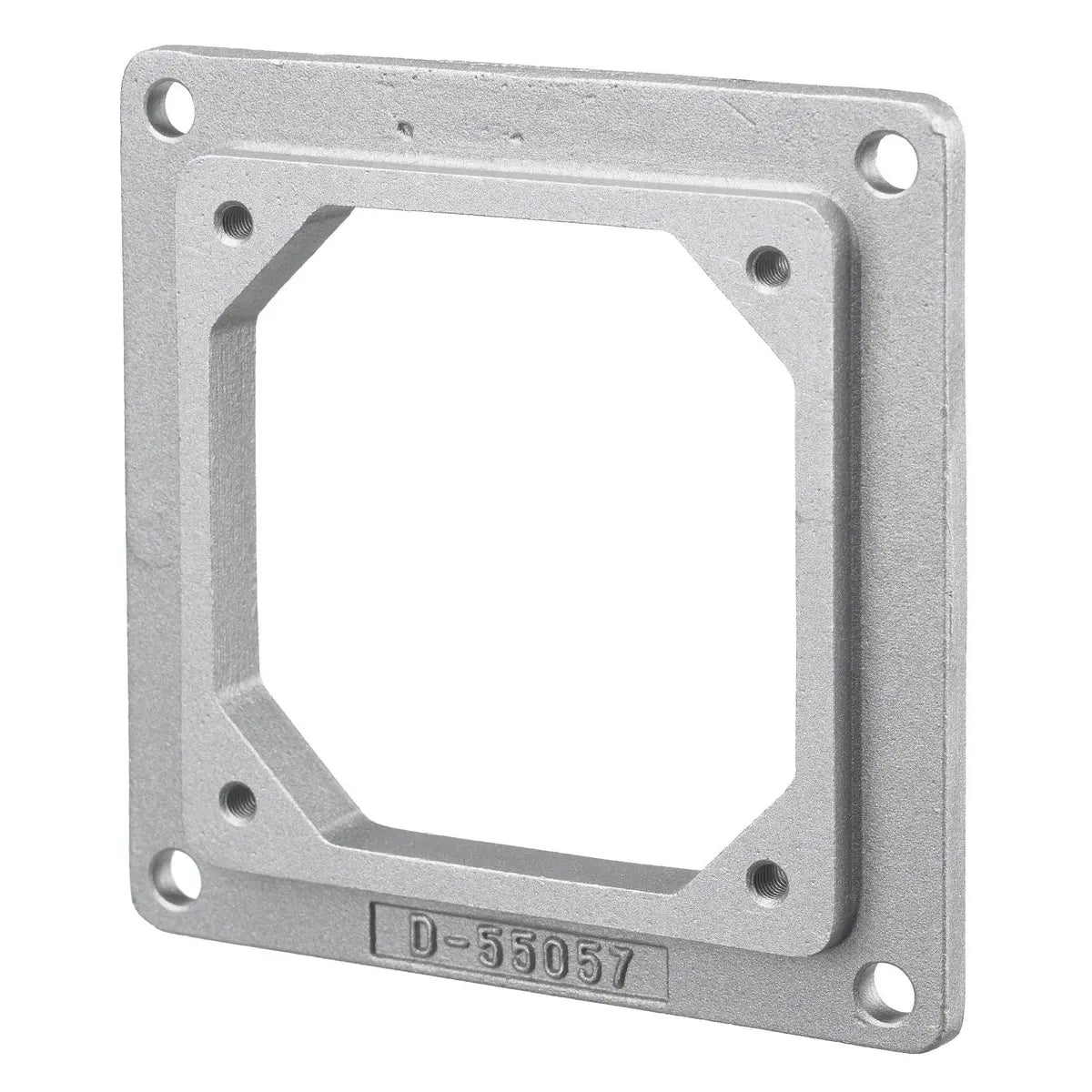

HBL26402 - Hubbell Wiring Device-Kellems - 60A Straight Adapter Plate Hubbellock Locking Devices
Hubbellock® Industrial Straight Adapter Plate 60A Metallic
The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing to a longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications.
- Rugged cast aluminum construction provides maximum strength and abuse resistance in harsh environments
Standard Product
GENERAL SPECIFICATION
| Catalog Number | HBL26402 |
| Construction | Cast |
| EU RoHS Indicator | No |
| Item Type | Straight Adapter Plate |
| Material - Mounting Hardware | Mounting Screws |
| Number Of Outlets | Accepts 1-Device |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Environmental - Moisture Resistance - IP44 Suitability |
| Specifications |
|
| Type | Adapter Plate |
| UPC | 783585017341 |
Dimensions
| Dimensions | 4.50 in x 0.41 in x 4.50 in |
| Display Size | For 60 Amp Devices |
| Height | 4.5 in |
| Length | 4.5 in |
| Weight | 0.35 lb |
| Width | 0.41 in |
Operational
| Performance | Environmental - Moisture Resistance - IP44 Suitability |
| Temperature Range | Limited By Device |
Configuration
| Number Of Outlets | Accepts 1-Device |
Logistics
| Carton Quantity | 5 |
