Description

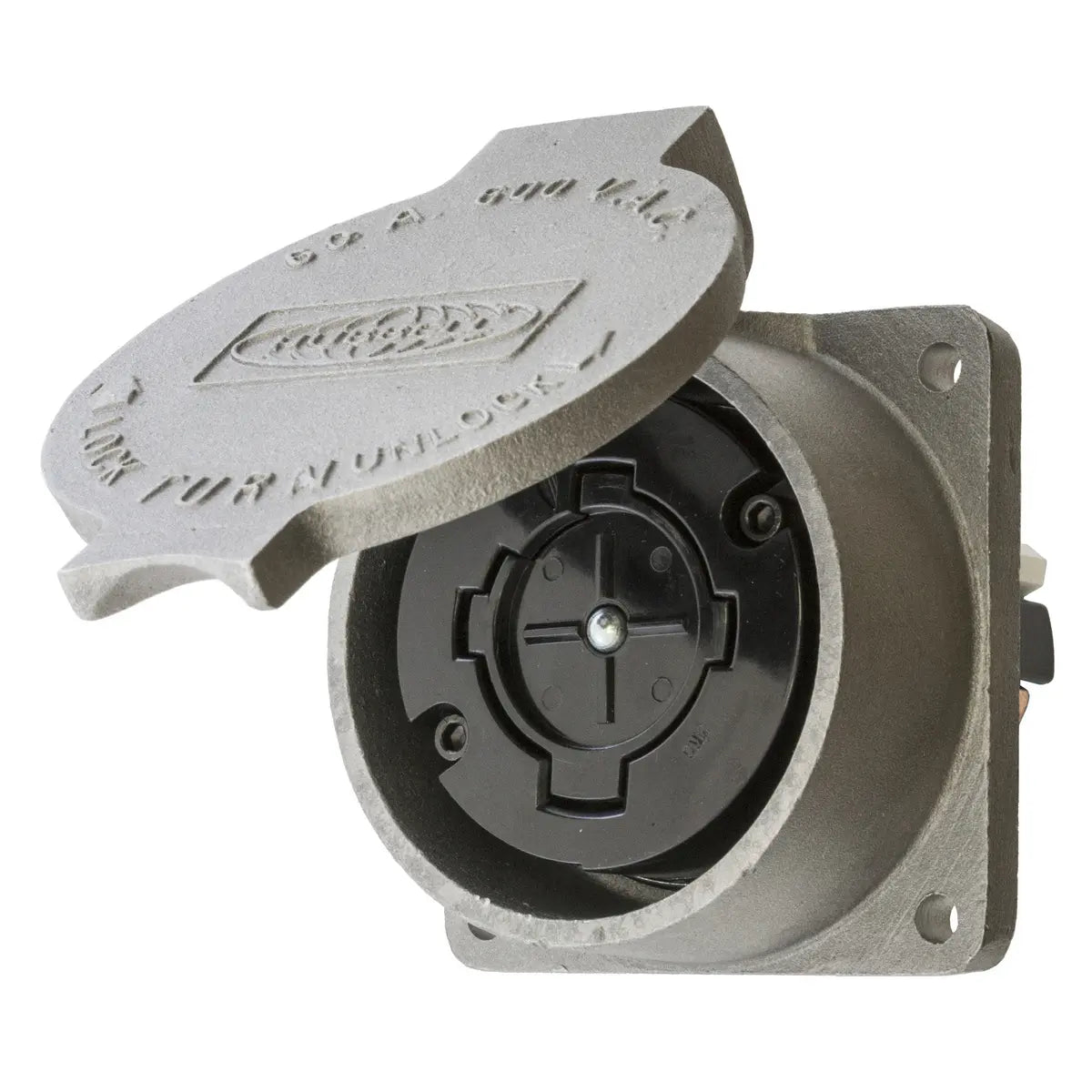

HBL26410 - Hubbell Wiring Device-Kellems - 60A Receptacle Hubbellock Locking Devices
Locking Devices, Hubbellock®, Industrial, Receptacle, 60A 600V AC, 3-Pole 4-Wire Grounding, Black phenolic interior with short aluminum housing and lift cover, Non NEMA, Screw Terminal, Metallic
The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing to a longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications.
- Spring loaded safety shutter contains arcing when mating or un-mating devices under load
- Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
- Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability
- Metallic weather protective spring loaded cover provides protection from moisture and dust
GENERAL SPECIFICATION
| Catalog Number | HBL26410 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | No |
| Item Type | 60A Hubbellock® Grounding Receptacle |
| Material | Aluminum, Cast |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Specifications |
|
| Type | Receptacle |
| UPC | 783585017303 |
Dimensions
| Dimensions | 3.5 in x 4.62 in x 3.58 in |
| Display Size | Standard Sized Product |
| Height | 3.58 in |
| Length | 3.5 in |
| Weight | 1.7 lb |
| Width | 4.62 in |
Electrical Ratings
| Amperage Rating | 60 A |
| Connectivity | Screw Terminals |
| Current / Amperage Rating | 60 A |
| Current Rating | 60 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Multi Phase |
| Voltage Rating | 600 V |
| Voltage Rating Description | 600 V |
Conductor Related
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Wire Size | #8 AWG to #4 AWG |
Operational
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 5 |
| Pallet Quantity | 560 |
