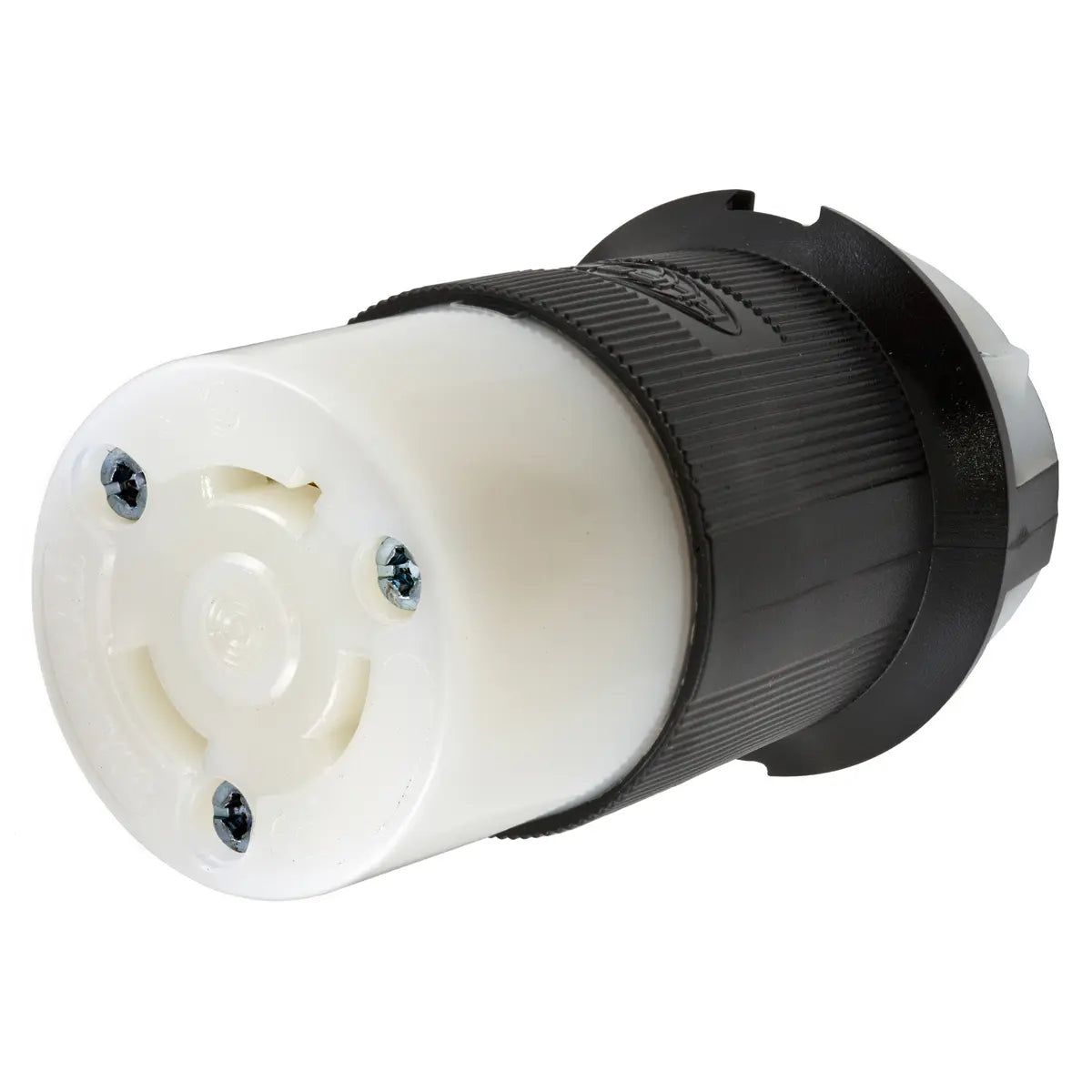

HBL2643 - Hubbell Wiring Device-Kellems - 30A Female Connector Body Twist-Lock Locking Devices
Locking Devices, Twist-Lock(R), Industrial, Female Connector Body, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30R, Screw Terminal, Black and White.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Standard Product
GENERAL SPECIFICATION
| Application |
Heavy Duty Industrial |
| Catalog Number |
HBL2643 |
| Color |
Black, White |
| Cord Range |
0.325" - 0.930" |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Insulation |
Insulated Body |
| Item Type |
30A Grounding Insulgrip(R) Connector |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Assembly Screws - Steel - nickel plated
- Contacts - Brass
- Housing / Cord Clamp - Nylon
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
|
| Temperature Rating |
Maximum Continuous: 75 deg C; Minimum Continuous: -40 deg C w/o impact, -25 deg with impact. |
| Type |
Connector Body |
| UPC |
783585039015 |
Dimensions
| Dimensions |
2.26 in x 2.26 in x 3.86 in |
| Display Size |
Standard |
| Height |
3.86 in |
| Length |
2.26 |
| Weight |
0.85 lb |
| Width |
2.26 in |
Electrical Ratings
| Amperage Rating |
30 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
30 A |
| Current Rating |
30 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
480 VAC |
| Voltage Rating Description |
480 VAC |
Conductor Related
| Cable Range |
0.325 - 0.930 in |
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Operational
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact
|
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Temperature Rating |
Maximum Continuous: 75 deg C; Minimum Continuous: -40 deg C w/o impact, -25 deg with impact. |
Logistics
| Carton Quantity |
30 |
| Pallet Quantity |
2400 |
PRODUCT DATASHEET
Wiring HBL2643 Specification Sheet
