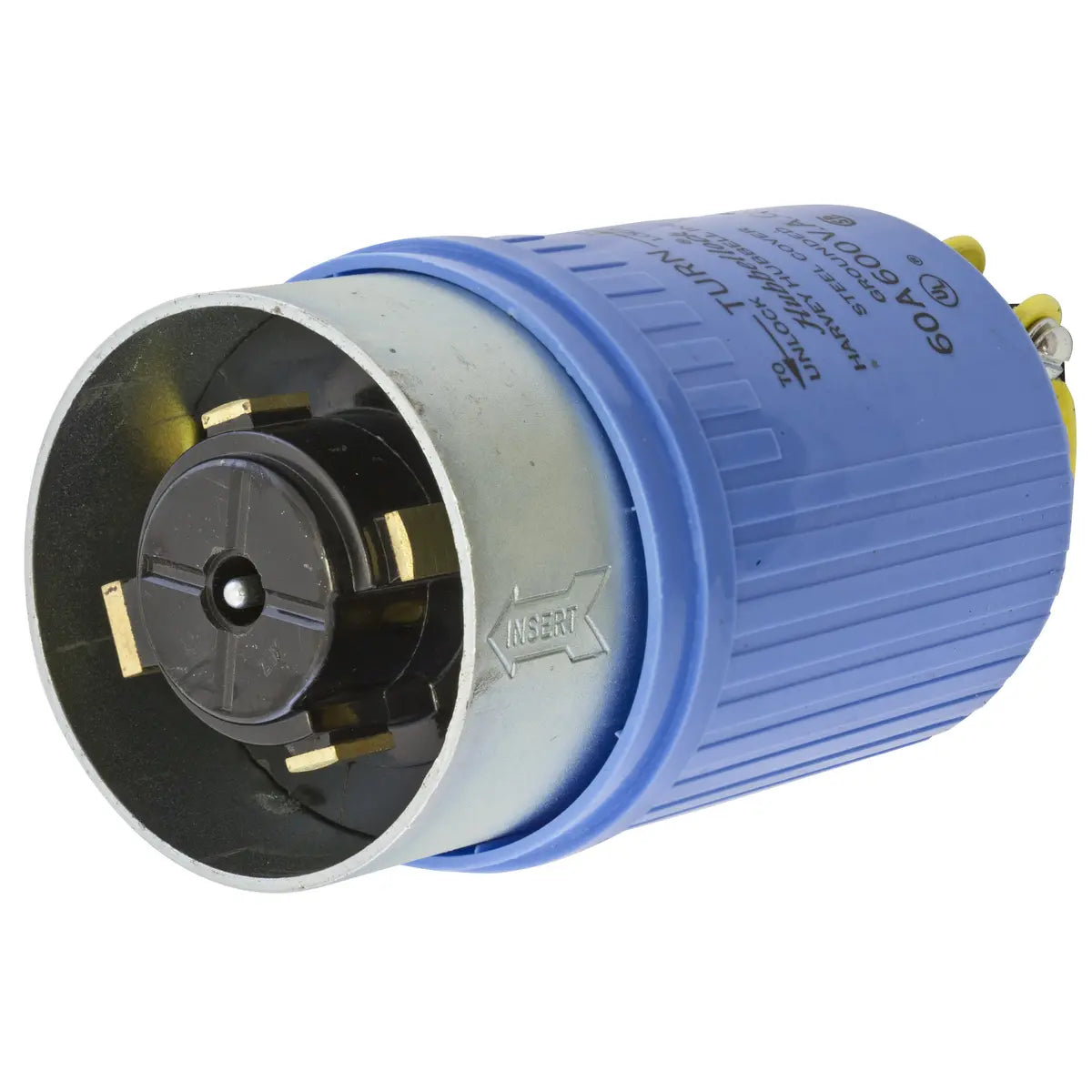

HBL26519 - Hubbell Wiring Device-Kellems - 60A Male Plug Hubbellock Locking Devices
Locking Devices, Hubbellock®, Industrial, Male Plug, 60A 600V AC, 4-Pole 5-Wire Grounding Hubbellock® Plug, Black phenolic interior with Blue thermoplastic sleeve and steel housing, Non NEMA, Screw Terminal
The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing to a longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications.
- Molded-in male contacts are resistant to damage and provide a consistently positive connection
- Insulated, color coded metallic housing enhances safety and abuse resistance
- Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability
GENERAL SPECIFICATION
| Catalog Number | HBL26519 |
| Color | Blue |
| Cord Range | 0.920" – 1.450" (23.36 – 36.83 mm) |
| EU RoHS Indicator | Contact Manufacturer |
| Item Type | 60A Hubbellock® Plug |
| Material | Nylon |
| Number Of Poles | 4-Pole |
| Operating Temperature | Max. 75°C, Min. -40°C (without impact) |
| Performance |
|
| Specifications |
|
| Type | Plugs |
| UPC | 783585017334 |
Dimensions
| Dimensions | 3.03 in x 3.03 in x 5.90 in |
| Height | 5.9 in |
| Length | 3.03 in |
| Weight | 2.1 lb |
| Width | 3.03 in |
Electrical Ratings
| Amperage Rating | 60 A |
| Current / Amperage Rating | 60 A |
| Current Rating | 60 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating | 600 VAC |
| Voltage Rating Description | 600 VAC |
Conductor Related
| Cable Range | 1.000 - 1.50 in |
| Number Of Wires | 5-Wire |
| Wire Size | #8 AWG to #4 AWG |
Logistics
| Carton Quantity | 5 |
| Pallet Quantity | 770 |
