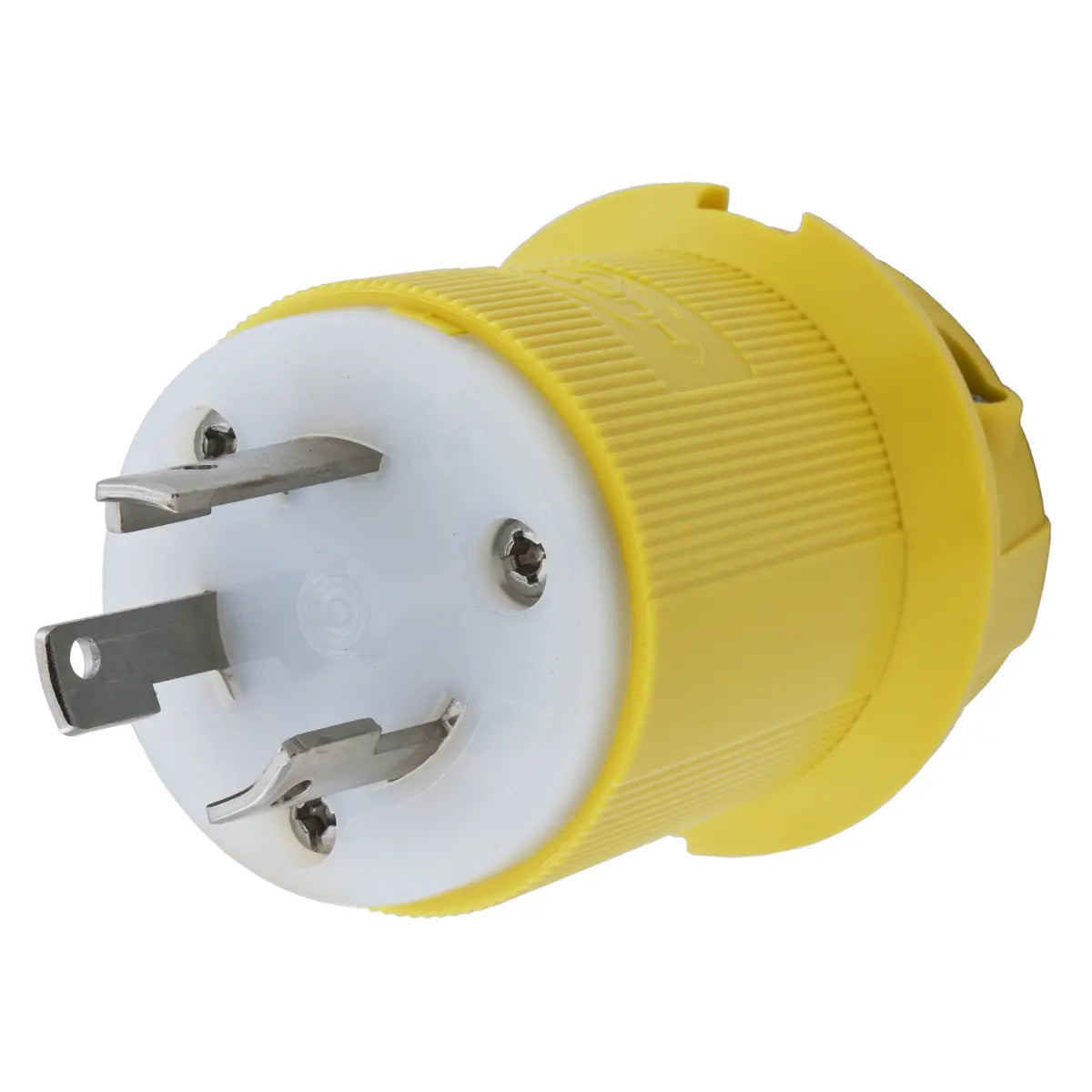

HBL26CM11 - Hubbell Wiring Device-Kellems - 30A Wire Grounding Male Plug Twist-Lock Locking Devices
Twist-Lock(R) Marine Grade Male Insulgrip(R) Plug, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5,Screw Terminal, Corrosion resistant Nylon
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Integral dust shield protects wiring chamber from dust or contaminants
GENERAL SPECIFICATION
| Catalog Number |
HBL26CM11 |
| Color |
Yellow |
| Cord Range |
0.360"-0.930" (9-24) |
| Environmental Conditions |
Corrosion Resistant |
| EU RoHS Indicator |
Contact Manufacturer |
| Horsepower - Maximum |
2 |
| Item Type |
30A Corrosion Resistant Insulgrip(R) Plug |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| Number Of Poles |
2-Pole |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Assembly Screws - Stainless Steel
- Blades - Nickel Plated Brass
- Housing / Cord Clamp - Nylon
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #10-32 Bronze (Phillips / Slotted / Robertson)
|
| Type |
Plugs |
| UPC |
783585039084 |
Dimensions
| Dimensions |
2.26 in x 2.26 in x 2.75 in |
| Display Size |
Standard Size |
| Height |
2.75 in |
| Length |
2.26 in |
| Weight |
0.3 lb |
| Width |
2.26 in |
Electrical Ratings
| Amperage Rating |
30 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
30 A |
| Current Rating |
30 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 VAC |
Conductor Related
| Cable Range |
0.360 - 0.930 in |
| Cord Type |
All Listed Portables |
| Number Of Wires |
3-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
720 |
