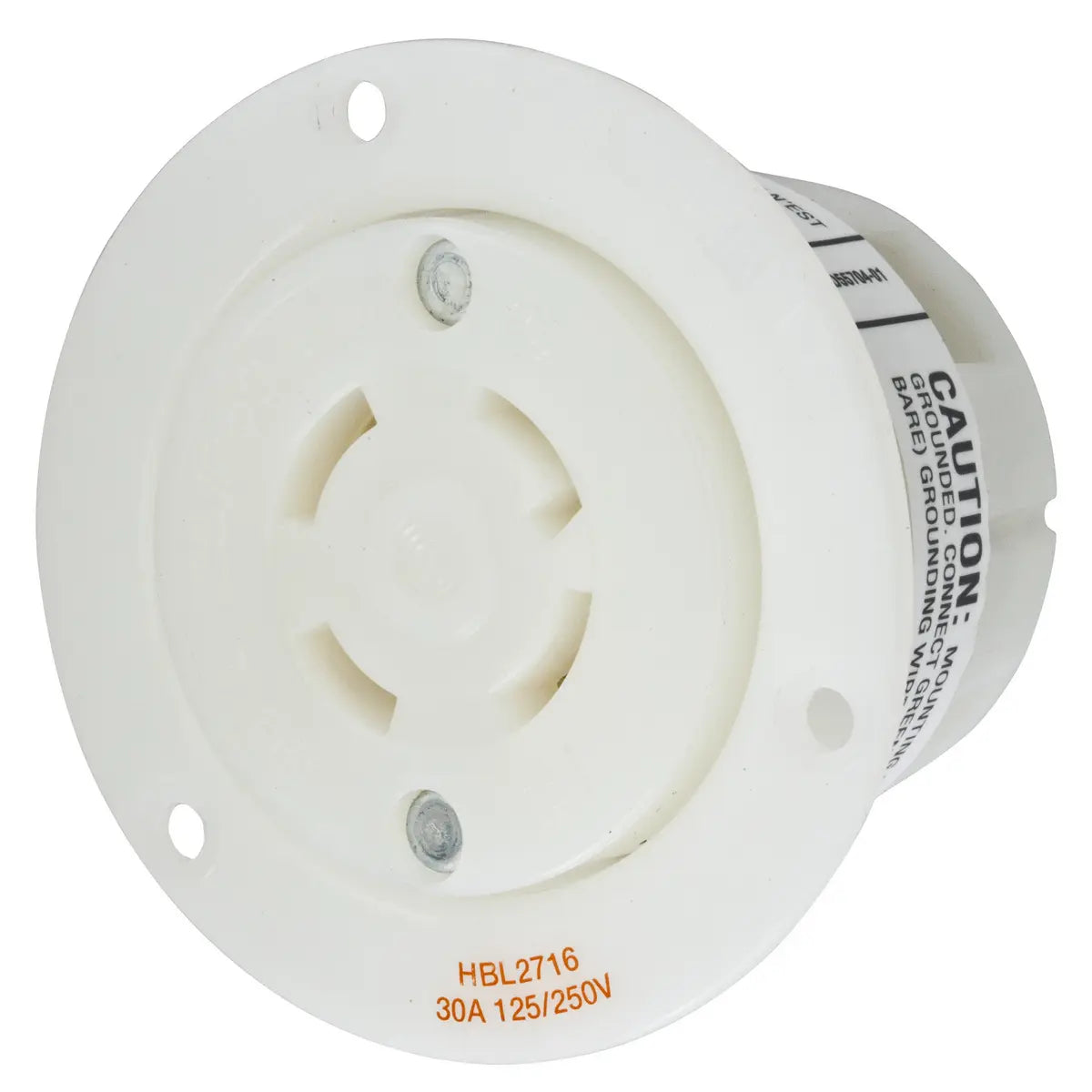

HBL2716 - Hubbell Wiring Device-Kellems - 30A Flanged Receptacle Twist-Lock Locking Devices
Roll over image to zoom in Click on image to zoom
HBL2716 - Hubbell Wiring Device-Kellems - 30A Flanged Receptacle Twist-Lock Locking Devices

HBL2716 - Hubbell Wiring Device-Kellems - 30A Flanged Receptacle Twist-Lock Locking Devices

HubbellSKU: HUBHBL2716
Price:
$82.98
Stock:
Sold out

Description

HBL2716 - Hubbell Wiring Device-Kellems - 30A Flanged Receptacle Twist-Lock Locking Devices

Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, White

  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included

Standard

GENERAL SPECIFICATIONS

Catalog Number HBL2716
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 2(2)
Item Type 30A Grounding Insulgrip® Flanged Receptacle
Material Nylon
Material - Mounting Hardware Screw Mounting
OEM Brand Name Hubbell Wiring Device-Kellems
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications
  • Assembly Screws - Steel - nickel plated
  • Contacts - Brass
  • Housing - Nylon
  • Mounting Screw - Nickel plated brass
  • Terminal Clamp - Cold rolled steel – nickel plated
  • Terminal Retainer - Clear polycarbonate
  • Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
Type Flanged Receptacle
UPC 783585039213



Dimensions

Dimensions 3.06 in x 3.06 in x 2.27 in
Display Size Standard Sized Product
Height 2.27 in
Length 3.06 in
Weight 0.35 lb
Width 3.06 in



Electrical Ratings

Amperage Rating 30 A
Connectivity Back Wired Screw Terminals
Current / Amperage Rating 30 A
Current Rating 30 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating 125/250 VAC
Voltage Rating Description 125/250 VAC



Conductor Related

Number Of Poles 3-Pole
Number Of Wires 4-Wire
Wire Size #16 AWG to #8 AWG



Operational

Horsepower - Maximum  2(2)
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Logistics

Carton Quantity 10
Pallet Quantity 1610



PRODUCT DATASHEET

Wiring HBL2716 Specification Sheet
