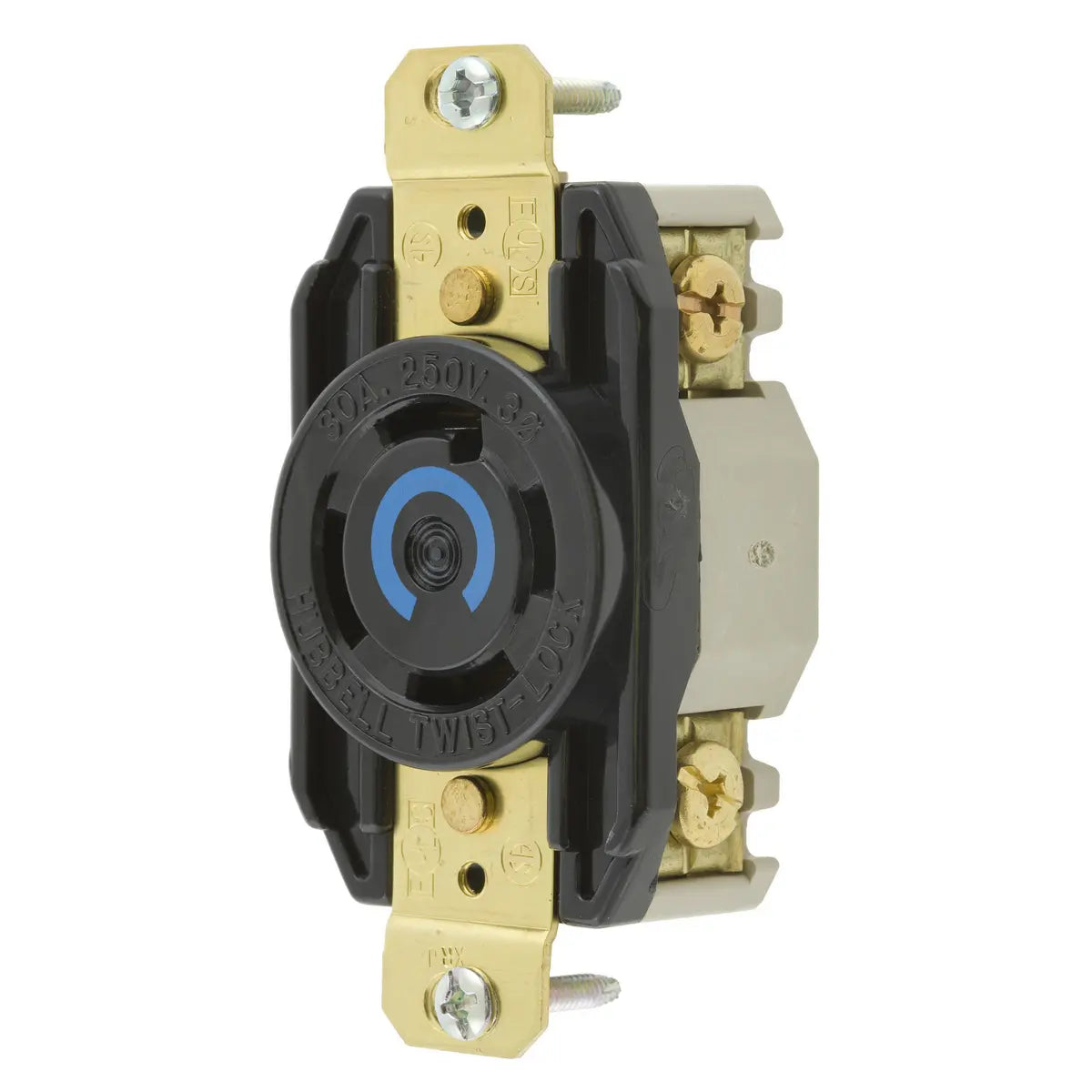

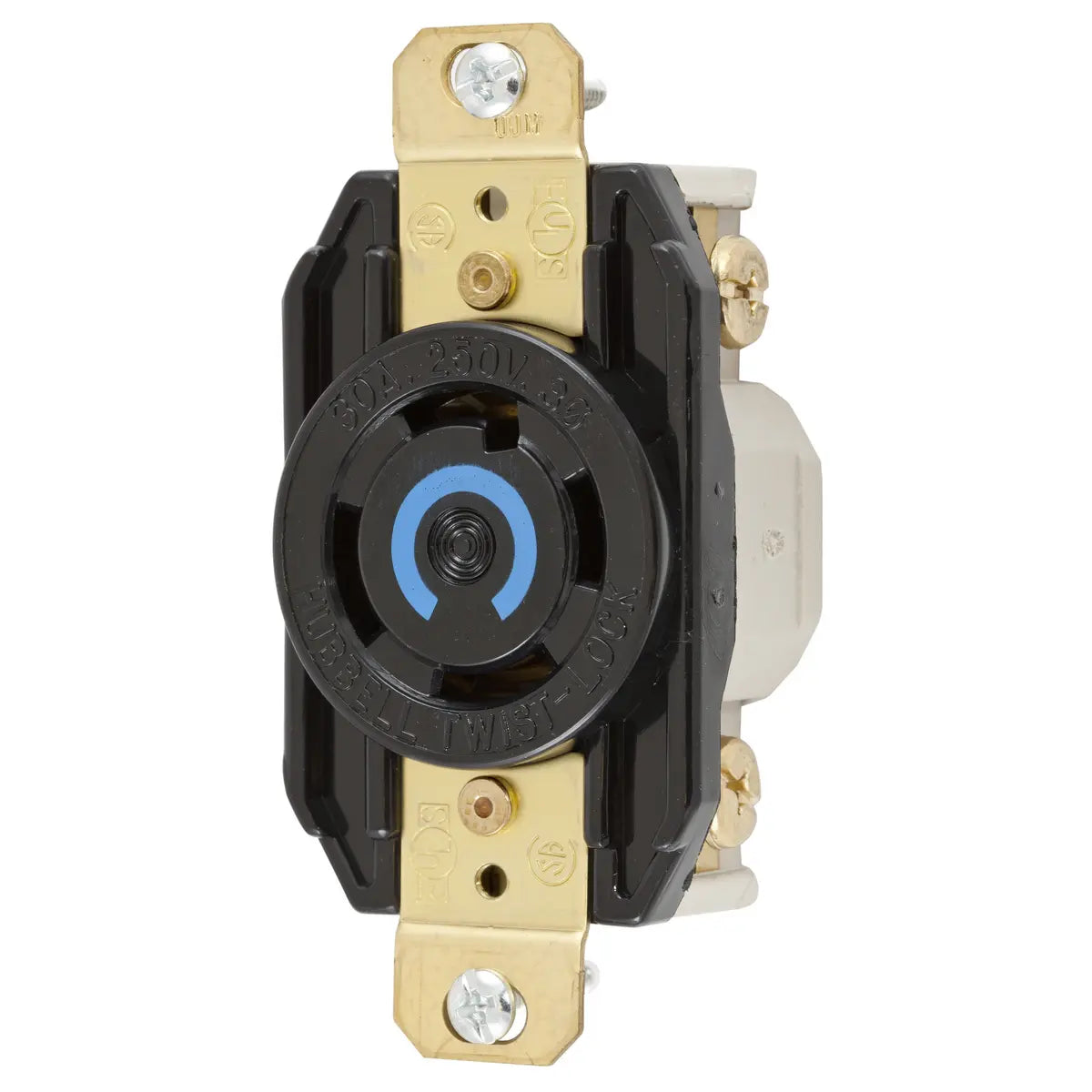

HBL2720 - Hubbell Wiring Device-Kellems - 30A Switched Twist-Lock Enclosure Industrial Grade
Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Twist-Lock Enclosure With pre-wired HBL2720 Receptacle, 30A Twist-Lock(R), 3 Phase 240 V AC, NEMA L15-30R, Terminal Screws, Gray.
The Switched Twist-Lock(R) and Hubbellock(R) Enclosures integrate a receptacle and a switch to produce distinct advantages for the user. This enclosure replaces box, switch, cover and all in a compact design that meets Type 3R Rainproof or 12K Dust-tight requirements. The receptacle is angled downward for a low profile, and it maintains a low profile while accommodating either a 20 or 30 Amp Twist-Lock receptacle or 30 Amp, 4 wire Hubbellock receptacle. The enclosure can be used in top, bottom or back feed applications. The handle is designed to be locked in the OFF position for lockout protection. Hubbell has developed the Switched Safety Enclosure because users want to be able to disconnect higher voltage devices confidently. Hubbell responded with a line of Switched Safety Enclosures for Twist-Lock and Hubbellock receptacles. The provision of the integral switch and the receptacle in a compact, non-metallic enclosure encourages the safe operating practice of disconnecting at the switch rather than the plug and receptacle. For plants and factories in a wide variety of industries, as well as light industrial facilities, Hubbell's Switched Enclosures offer an upgrade that's convenient, compact and easy to install.
- Lockable handle provides lockout protection for greater safety and complies with OSHA lockout requirements
- Horsepower rated switch
- Large receptacle gasketless door and hinge assembly
- Heavy-duty internal frame bonds conduit and all grounds and has a DIN rail to accommodate the switch
GENERAL SPECIFICATIONS
| Catalog Number |
HBL2720 |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
3 |
| Item Type |
Single Flush Receptacles |
| Material |
Nylon |
| Material - Mounting Hardware |
Screw Mounting |
| Number Of Poles |
3-Pole |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Base - Glass-Reinforced thermoplastic polyester (RTP)
- Contacts - Brass
- Face - Stainless steel
- Mounting Strap - Brass
- Terminal Screws - #10 - 32 Brass
|
| Type |
Single Flush Receptacle |
| UPC |
783585236131 |
Dimensions
| Dimensions |
3.28 in x 1.7 in x 1.31 in |
| Display Size |
Standard Sized Product |
| Height |
1.31 in |
| Length |
3.28 in |
| Weight |
0.3 lb |
| Width |
1.7 in |
Electrical Ratings
| Amperage Rating |
30 A |
| Connectivity |
Back and Side Wired Screw Terminals |
| Current / Amperage Rating |
30 A |
| Current Rating |
30 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Three Phase |
| Voltage Rating |
3 Phase 250 VAC |
| Voltage Rating Description |
3 Phase 250 VAC |
Conductor Related
| Number Of Wires |
4-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
2520 |
PRODUCT DATASHEET
Wiring HBL2720 Specification Sheet
