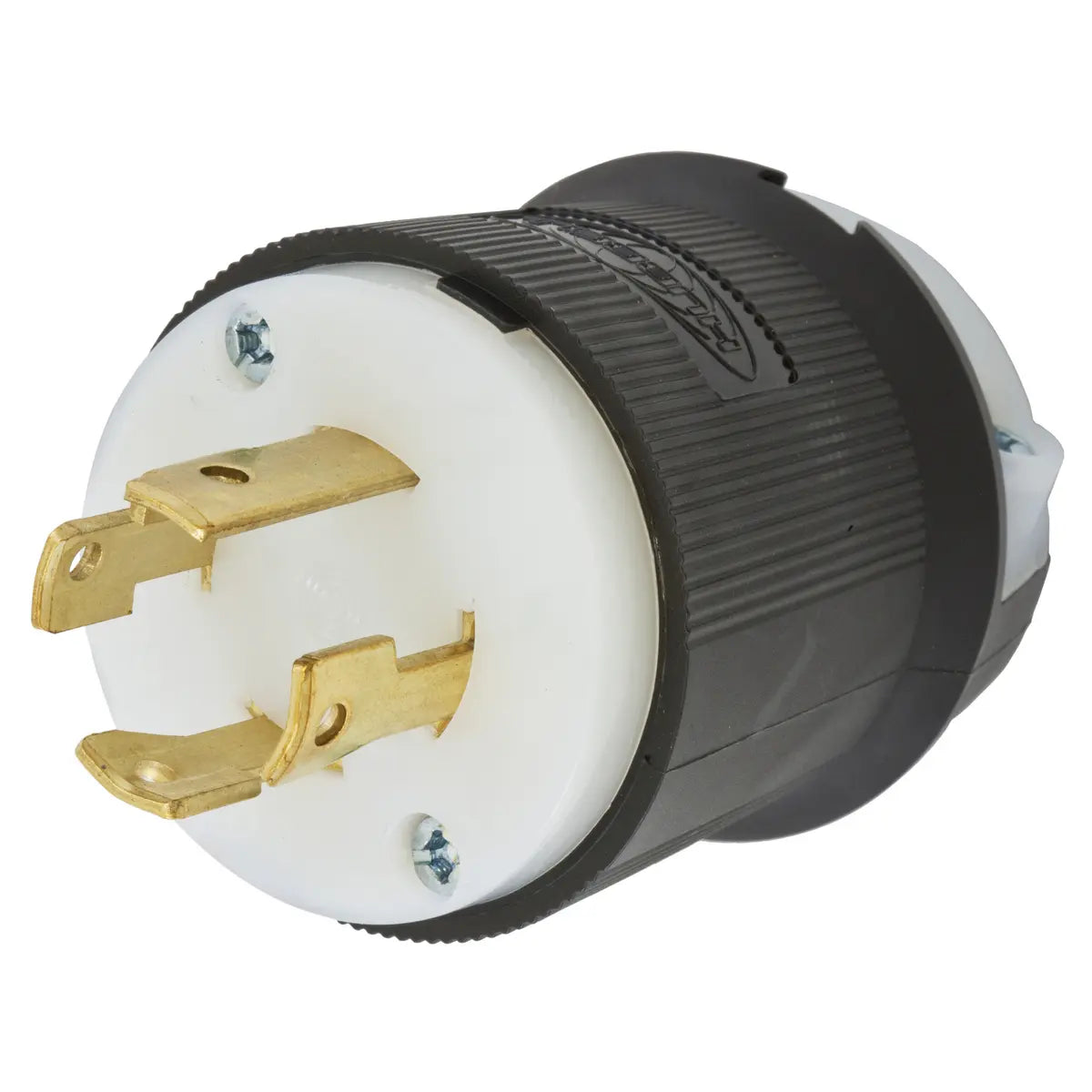

HBL2721 - Hubbell Wiring Device-Kellems - 30A Male Plug Twist-Lock Locking Devices
Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, L15-30P, Screw Terminal, Black and White.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number | HBL2721 |
| Color | Black, White |
| Cord Range | 0.350"-1.150" (9-29) |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Horsepower - Maximum | 3 |
| Item Type | 30A Grounding Insulgrip® Plug |
| Material | Nylon |
| Material - Mounting Hardware | Cord Mounted |
| Number Of Poles | 3-Pole |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Specifications |
|
| Type | Plugs |
| UPC | 783585039220 |
Dimensions
| Dimensions | 2.33 in x 2.33 in x 2.75 in |
| Display Size | Standard Sized |
| Height | 2.75 in |
| Length | 2.33 in |
| Weight | 0.25 lb |
| Width | 2.33 in |
Electrical Ratings
| Amperage Rating | 30 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 30 A |
| Current Rating | 30 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Three Phase |
| Voltage Rating | 3 Phase 250 VAC |
| Voltage Rating Description | 3 Phase 250 VAC |
Conductor Related
| Cable Range | 0.350 - 1.150 in |
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Wire Size | #16 AWG to #8 AWG |
Operational
| Horsepower - Maximum | 3 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Configuration
| Cord Type | All Listed Portables |
Logistics
| Carton Quantity | 30 |
| Pallet Quantity | 3060 |
