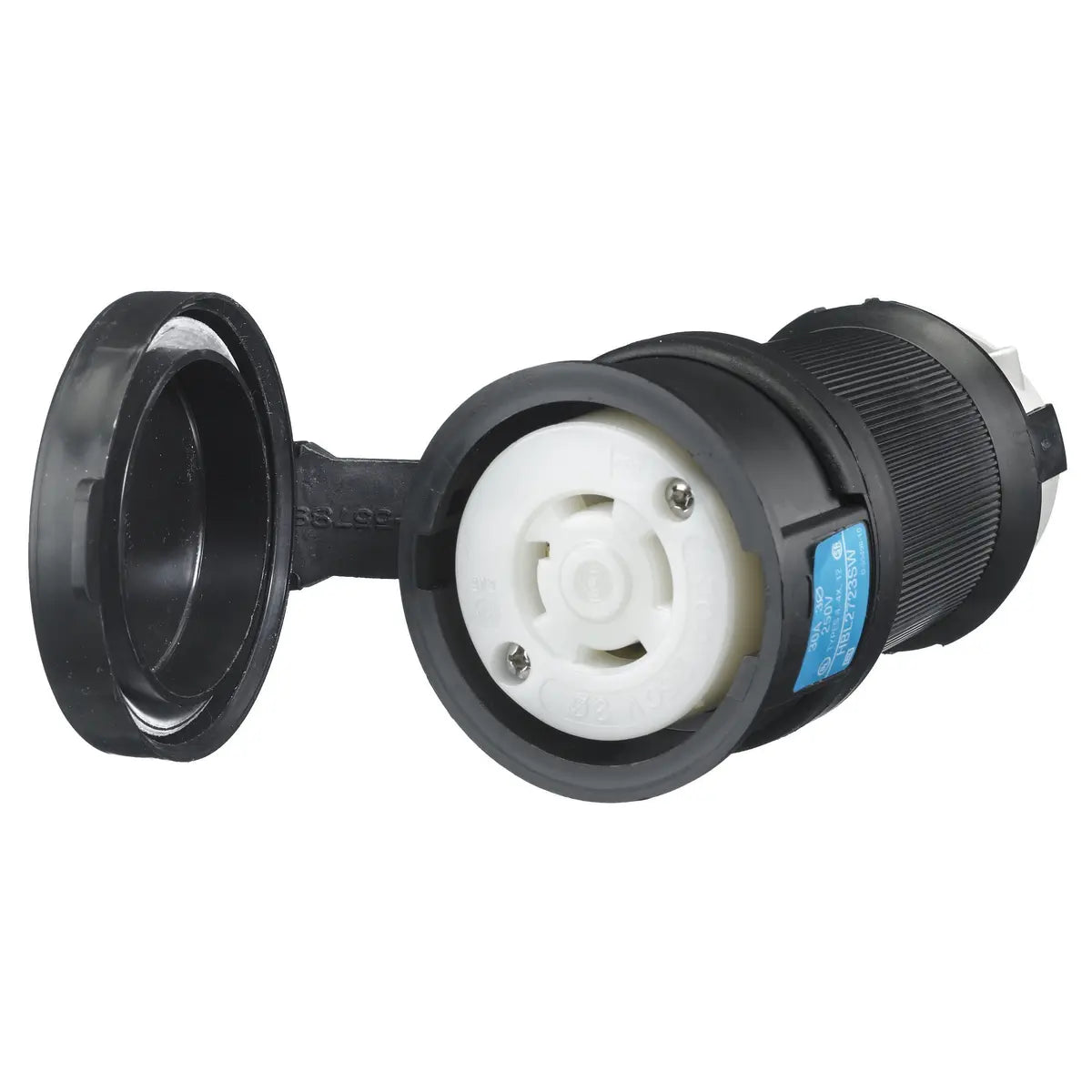

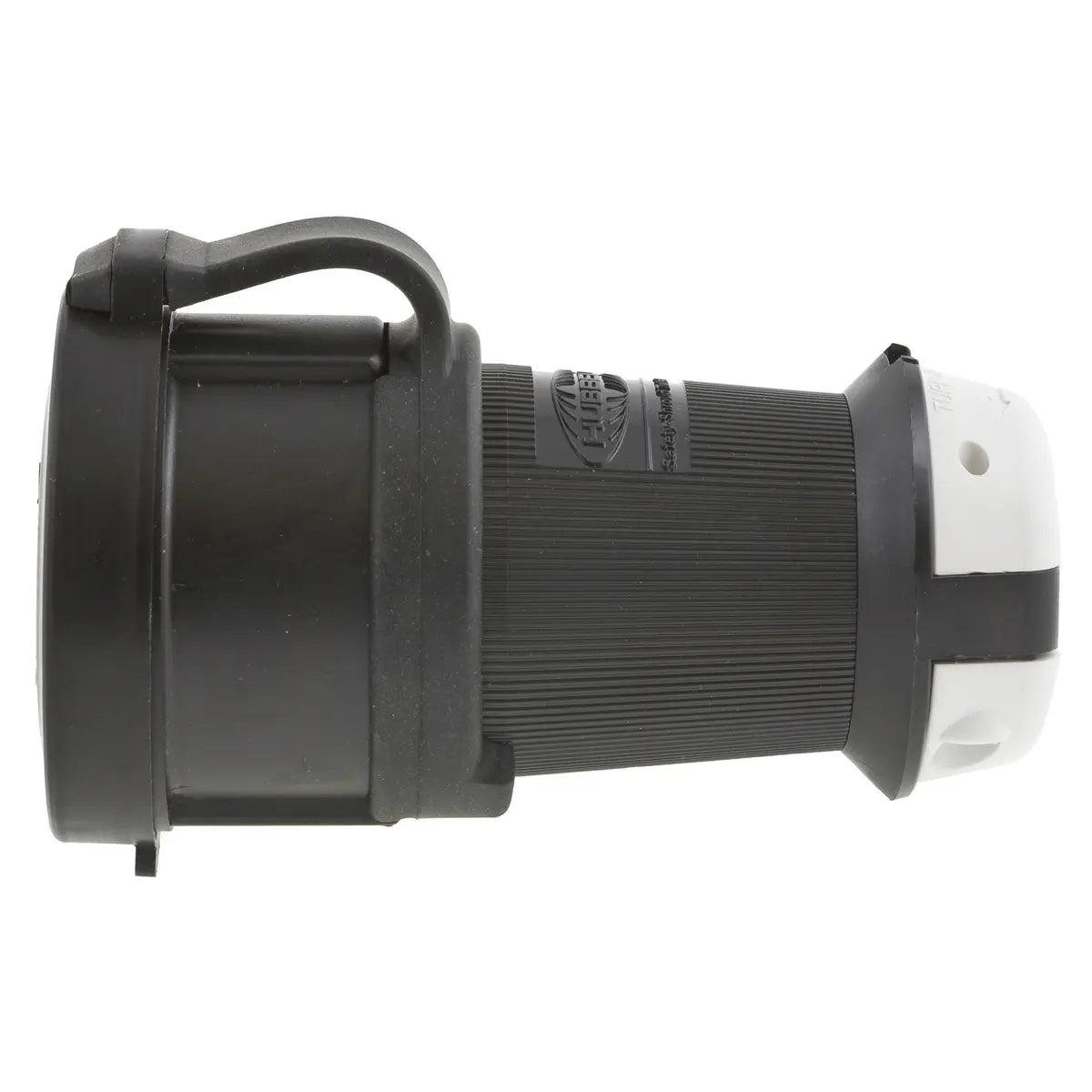

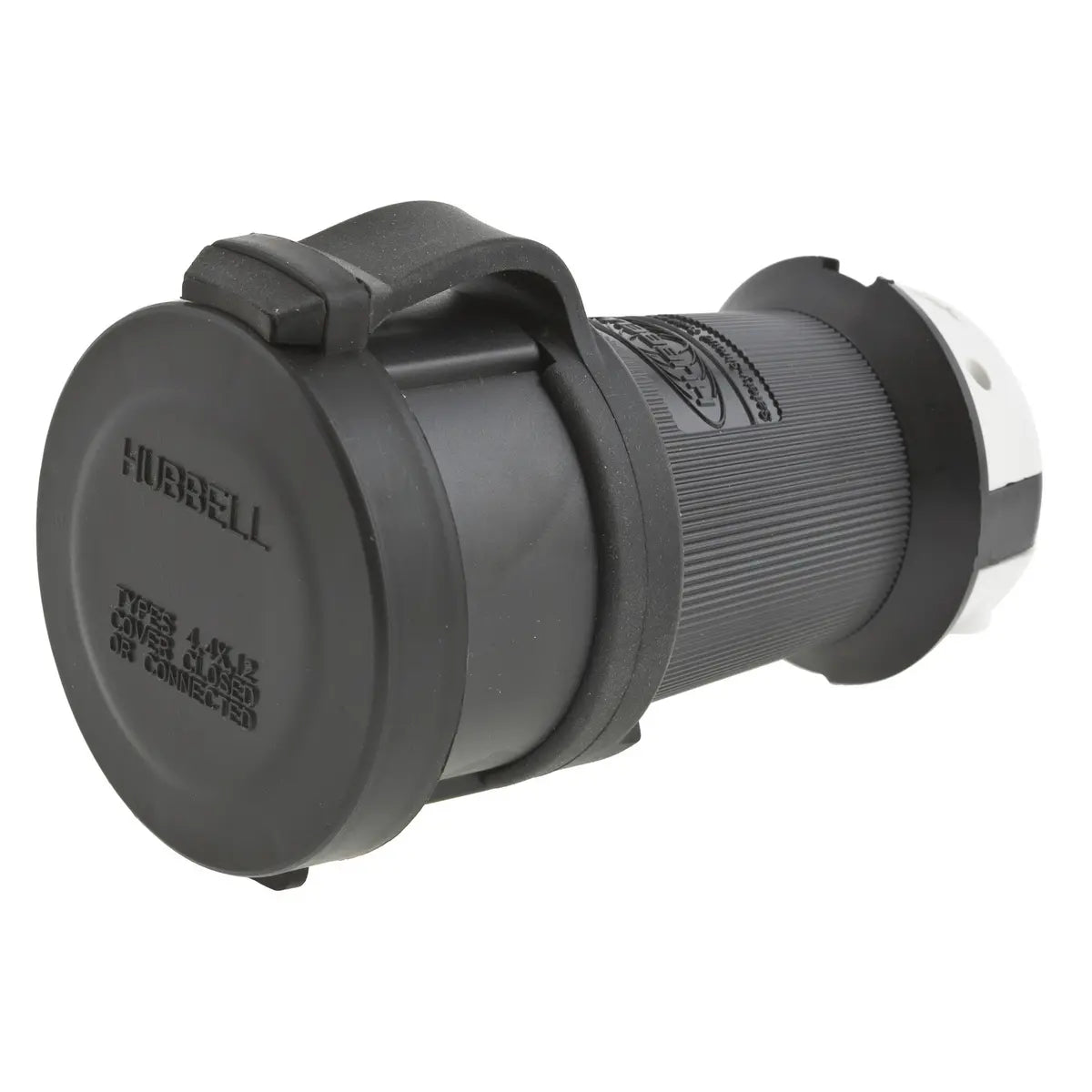

HBL2723SW - Hubbell Wiring Device-Kellems - 20A Female Connector Twist-Lock Locking Device
Locking Devices, Twist-Lock(R), Watertight Safety-Shroud(R), Female Connector Body, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-30R, Screw Terminal, Black PBT housing, White PBT clamps.
- UL Type 4X Environmental seal protects connection while in use.
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Closure cap is included for environmental seal when device is not in use
- Superior cord grip design protects terminations from excess strain.
Shrouded Watertight Construction
GENERAL SPECIFICATIONS
| Catalog Number |
HBL2723SW |
| Color |
Black, White |
| Cord Range |
0.350"-1.150" (9-29) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Insulation |
Insulated Body |
| Item Type |
30A Watertight Safety-Shroud(R) Connector |
| Material |
Nylon |
| Material - Mounting Hardware |
Composite |
| Number Of Poles |
3-Pole |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17
- Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Assembly Screws - Stainless Steel
- Closure Plug - Santoprene
- Contacts - Brass
- Housing / Cord Clamp - PBT
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
- Watertight Gland - Neoprene
|
| Type |
Connector Body |
| UPC |
783585231860 |
Dimensions
| Dimensions |
2.75 in x 2.75 in x 4.40 in |
| Display Size |
Standard |
| Height |
4.4 in |
| Length |
2.75in |
| Weight |
0.65 lb |
| Width |
2.75in |
Electrical Ratings
| Amperage Rating |
30 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
30 A |
| Current Rating |
30 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Three Phase |
| Voltage Rating |
250 V |
| Voltage Rating Description |
250 V |
Driver Related
| Cable Range |
0.350 - 1.150 in |
| Number Of Wires |
4-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
960 |
PRODUCT DATASHEET
Wiring HBL2723SW Specification Sheet
