Description

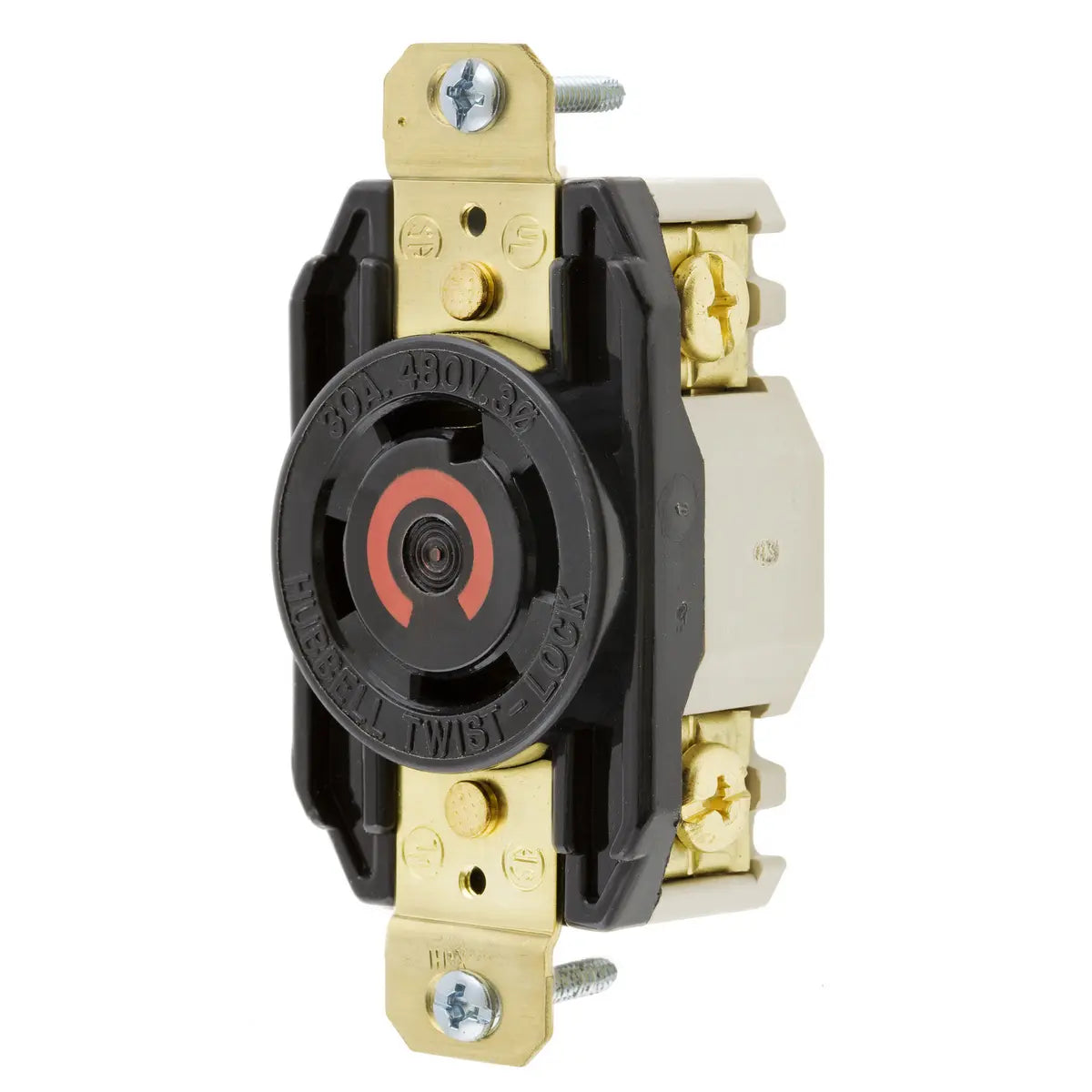

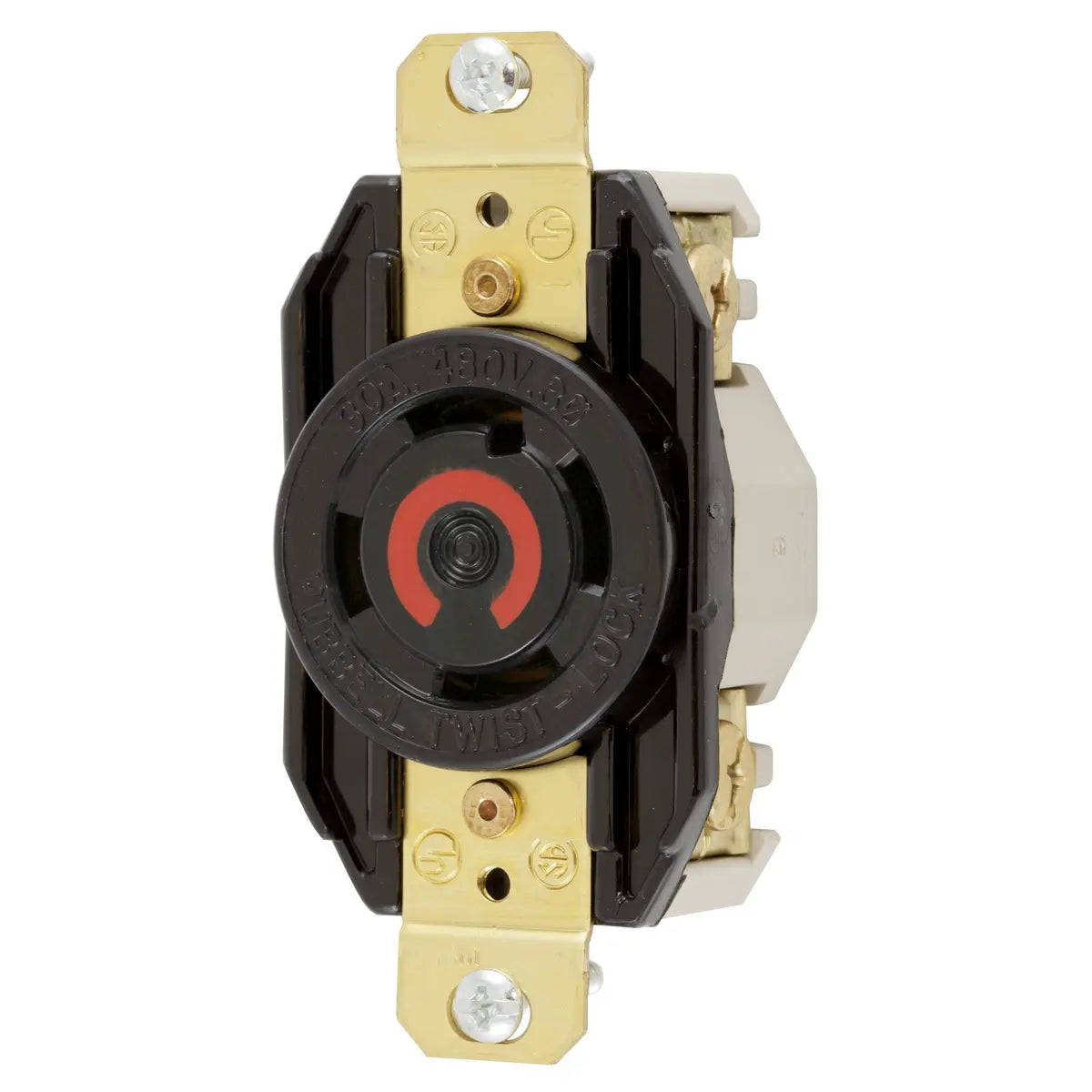

HBL2730 - Hubbell Wiring Device-Kellems - 30A Receptacle Twist-Lock Locking Device
Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-30R, Screw Terminal, Black
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Standard
GENERAL SPECIFICATIONS
| Application | Heavy Duty Industrial |
| Catalog Number | HBL2730 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Horsepower - Maximum | 10 |
| Item Type | Single Flush Receptacles |
| Material | Nylon |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | -40°C to 85°C |
| Performance |
|
| Specifications |
|
| Type | Single Flush Receptacle |
| UPC | 783585236155 |
Dimensions
| Dimensions | 3.28 in x 1.7 in x 1.31 in |
| Display Size | Standard Sized Product |
| Height | 1.31 in |
| Length | 3.28 in |
| Weight | 0.25 lb |
| Width | 1.7 in |
Electrical Ratings
| Amperage Rating | 30 A |
| Connectivity | Back and Side Wired Screw Terminals |
| Current / Amperage Rating | 30 A |
| Current Rating | 30 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Three Phase |
| Voltage Rating | 3 Phase 480 VAC |
| Voltage Rating Description | 3 Phase 480 VAC |
Conductor Related
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Wire Size | #16 AWG to #8 AWG |
Operational
| Horsepower - Maximum | 10 |
| Operating Temperature | -40°C to 85 °C |
| Performance |
|
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 2520 |
