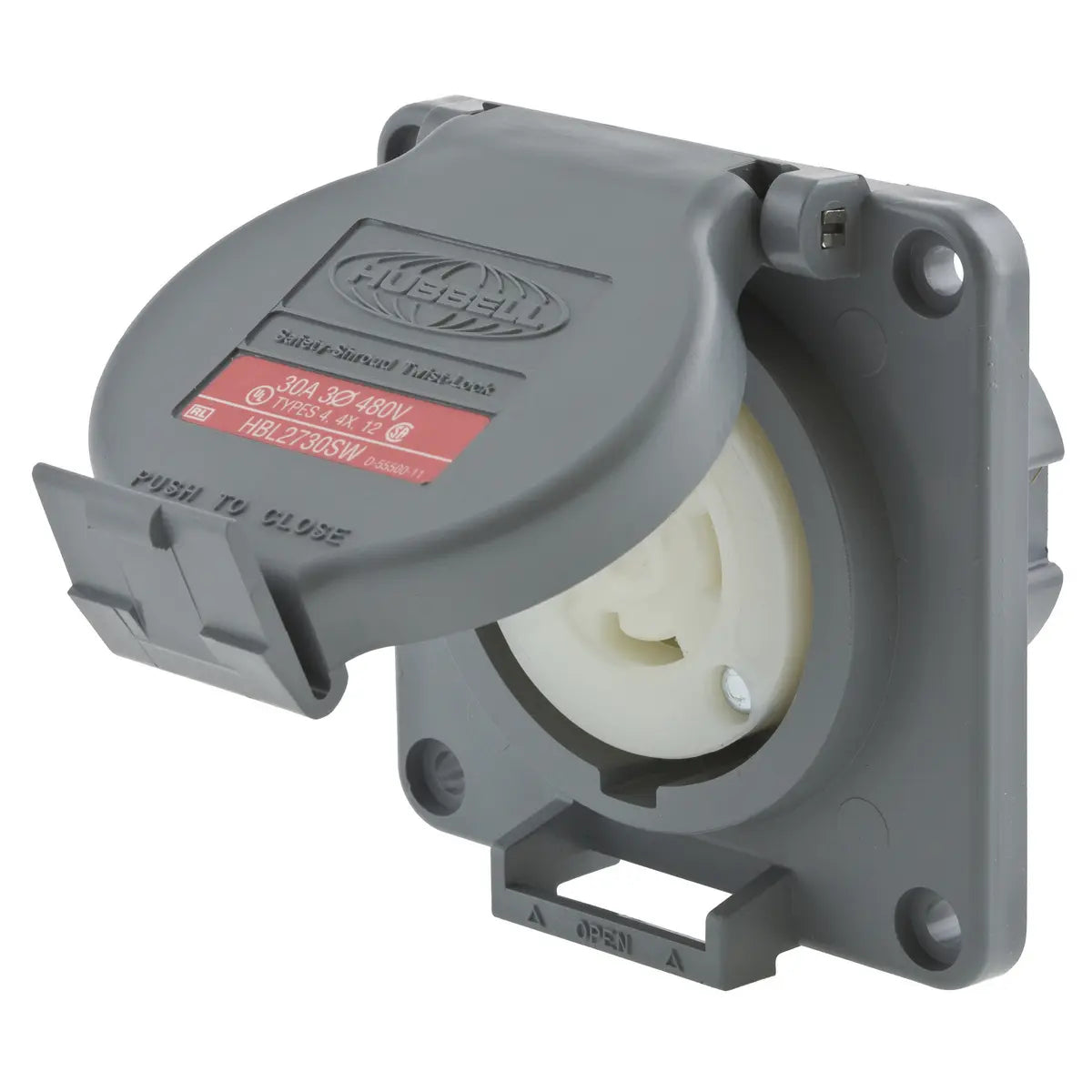

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-30R, Screw Terminal, PBT housing and flange, Gray

• UL type 4X environmental seal while in use and when closed
• High impact, thermoplastic housing for heavy-duty industrial environments
• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use

Shrouded Watertight Construction

GENERAL SPECIFICATIONS

Catalog Number	HBL2730SW
Environmental Conditions	Watertight
EU RoHS Indicator	Yes
Horsepower - Maximum	15
Item Type	30A Watertight Safety-Shroud® Receptacle
Material	Valox
Material - Mounting Hardware	Screw Mounting
OEM Brand Name	Hubbell Wiring Device-Kellems
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Performance	Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications	Body Contact Carrier - Natural (white) nylon Contacts - Brass Drive Screws - Steel, zinc plated Housing / Cover - Gray RPT Lift-Cover Spring & Pin - Stainless Steel Terminal Retainer - Clear polycarbonate
Type	Receptacle
UPC	783585231907



Dimensions

Dimensions	3.75 in x 3.75 in x 2.9 in
Display Size	Standard Sized Product
Height	2.9 in
Length	3.75 in
Weight	0.65 lb
Width	3.75 in



Electrical Ratings

Amperage Rating	30 A
Connectivity	Back Wired Screw Terminals
Current / Amperage Rating	30 A
Current Rating	30 A
Dielectric Strength	Withstands 2,000V minimum
Phase	Three Phase
Voltage Rating	480 V
Voltage Rating Description	3 Phase 480 VAC



Conductor Related

Number Of Poles	3-Pole
Number Of Wires	4-Wire
Wire Size	#16 AWG to #8 AWG



Logistics

Horsepower - Maximum	15
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Performance	Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Enclosure Rating-enclosure ratings of Types 4, 4X, and/or 12 Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498



Configuration

Number of Gang(s)

1-Gang

Logistics

Carton Quantity	5
Pallet Quantity	1000



PRODUCT DATASHEET

Wiring HBL2730SW Specification Sheet
