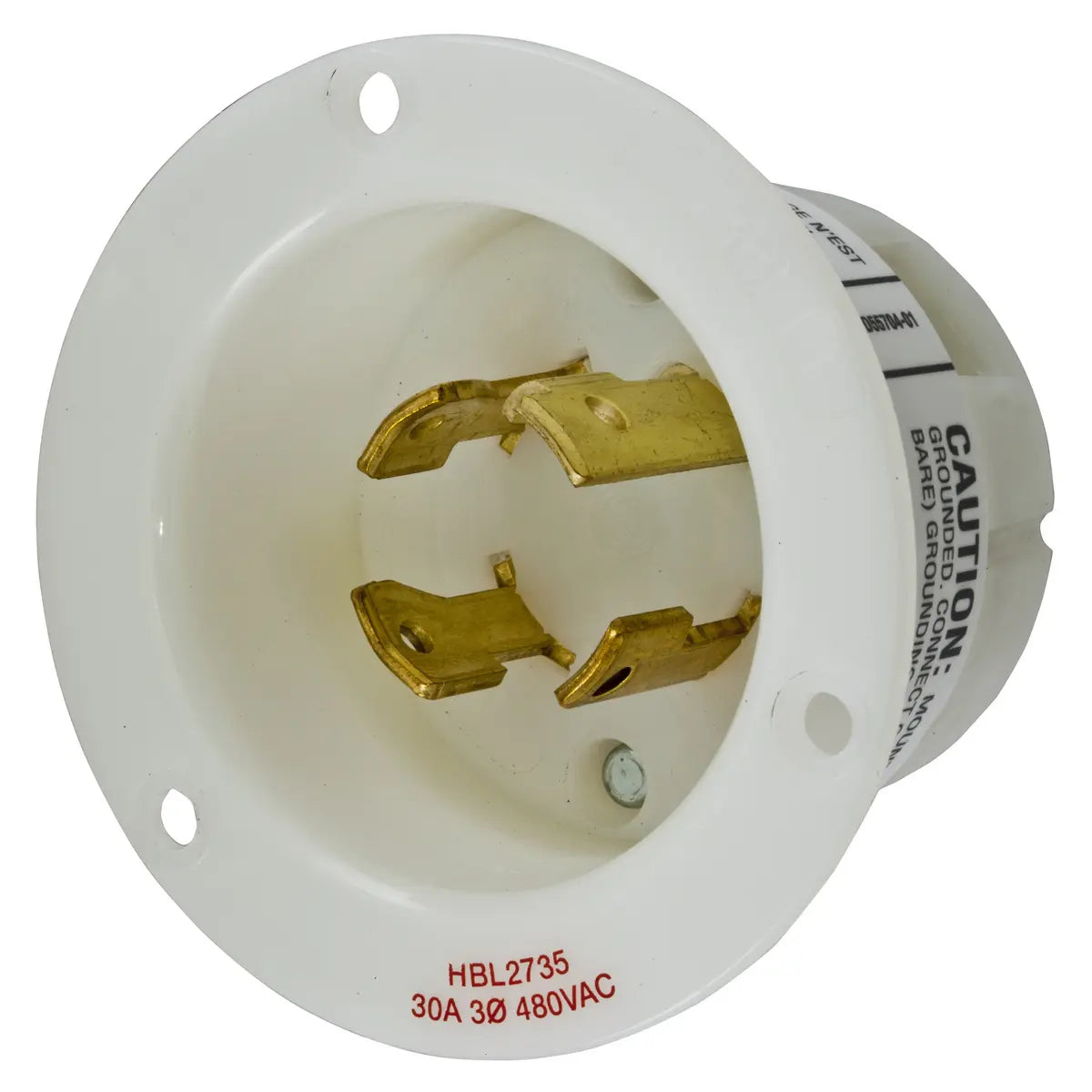

HBL2735 - Hubbell Wiring Device-Kellems - 30A Flanged Inlet Twist-Lock Locking Device
Roll over image to zoom in Click on image to zoom
HBL2735 - Hubbell Wiring Device-Kellems - 30A Flanged Inlet Twist-Lock Locking Device

HBL2735 - Hubbell Wiring Device-Kellems - 30A Flanged Inlet Twist-Lock Locking Device

HubbellSKU: HUBHBL2735
Price:
$128.99
Stock:
Sold out

Description

HBL2735 - Hubbell Wiring Device-Kellems - 30A Flanged Inlet Twist-Lock Locking Device

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16- 30P, Screw Terminal, White

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included

Standard Product

GENERAL SPECIFICATIONS

Catalog Number

HBL2735
Color White
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Insulation Insulated Body
Item Type 30A Grounding Insulgrip® Flanged Inlet
Material Nylon
Material - Mounting Hardware Screw Mounting
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications
  • Assembly Screws - Steel - nickel plated
  • Blades - Brass
  • Housing / Flange - Nylon
  • Mounting Screw - Nickel plated brass
  • Terminal Clamp - Cold rolled steel – nickel plated
  • Terminal Retainer - Clear polycarbonate
  • Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
Type Flanged Inlet
UPC 783585039350



Dimensions

Dimensions 3.06 in x 3.06 in x 2.27 in
Display Size Standard
Height 2.27 in
Length 3.06 in
Weight 0.25 lb
Width 3.06 in



Electrical Ratings

Amperage Rating 30 A
Connectivity Back Wired Screw Terminals
Current / Amperage Rating 30 A
Current Rating 30 A
Dielectric Strength Withstands 2,000V minimum
Phase Three Phase
Voltage Rating 3 Phase 480 VAC
Voltage Rating Description 3 Phase 480 VAC



Conductor Related

Number Of Poles 3-Pole
Number Of Wires 4-Wire
Wire Size #16 AWG to #8 AWG


Operational

 Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498



Logistics

Carton Quantity 10
Pallet Quantity 1320



PRODUCT DATASHEET

Wiring HBL2735 Specification Sheet
