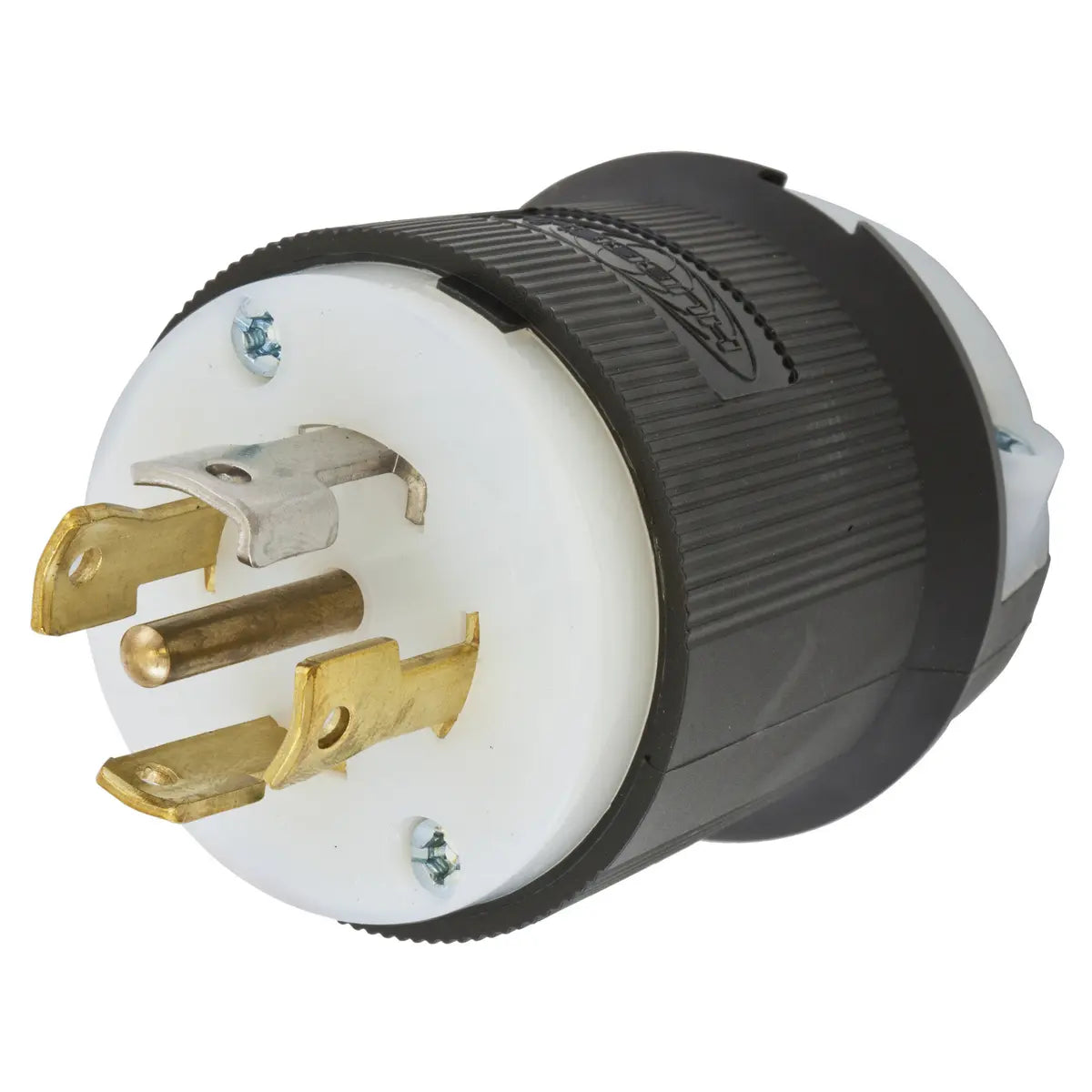

HBL2811 - Hubbell Wiring Device Kellems - 30A Male Plug Twist Lock Locking Device
Roll over image to zoom in Click on image to zoom
HBL2811 - Hubbell Wiring Device Kellems - 30A Male Plug Twist Lock Locking Device

HBL2811 - Hubbell Wiring Device Kellems - 30A Male Plug Twist Lock Locking Device

HubbellSKU: HUBHBL2811
Price:
$37.89
Stock:
Sold out

Description

HBL2811 - Hubbell Wiring Device Kellems - 30A Male Plug Twist Lock Locking Device

Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30P, Screw Terminal, Black and White.

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Standard Product

GENERAL SPECIFICATIONS

Catalog Number HBL2811
Color Black, White
Cord Range 0.350"-1.150" (9-29)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Item Type 30A Grounding Insulgrip® Plug
Material Nylon
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications
  • Assembly Screws - Steel - nickel plated
  • Blades - Brass
  • Housing / Cord Clamp - Nylon
  • Terminal Clamp - Cold rolled steel – nickel plated
  • Terminal Retainer - Clear polycarbonate
  • Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
Type Plugs
UPC 783585039633



Dimensions

Dimensions 2.33 in x 2.33 in x 2.75 in
Display Size Standard
Height 2.75 in
Length 2.33 in
Weight 0.35 lb
Width 2.33 in



Electrical Ratings

Amperage Rating 30 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 30 A
Current Rating 30 A
Dielectric Strength Withstands 2,000V minimum
Phase Three Phase
Voltage Rating 3 Phase WYE 120/208 VAC
Voltage Rating Description 3 Phase WYE 120/208 VAC



Conductor Related

Cable Range 0.350 - 1.150 in
Number Of Poles 4-Pole
Number Of Wires 5-Wire
Wire Size #16 AWG to #8 AWG



Operational

Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498



Configuration

Cord Type All Listed Portables

Logistics

Carton Quantity 30
Pallet Quantity 2880



PRODUCT DATASHEET

Wiring HBL2811 Specification Sheet
