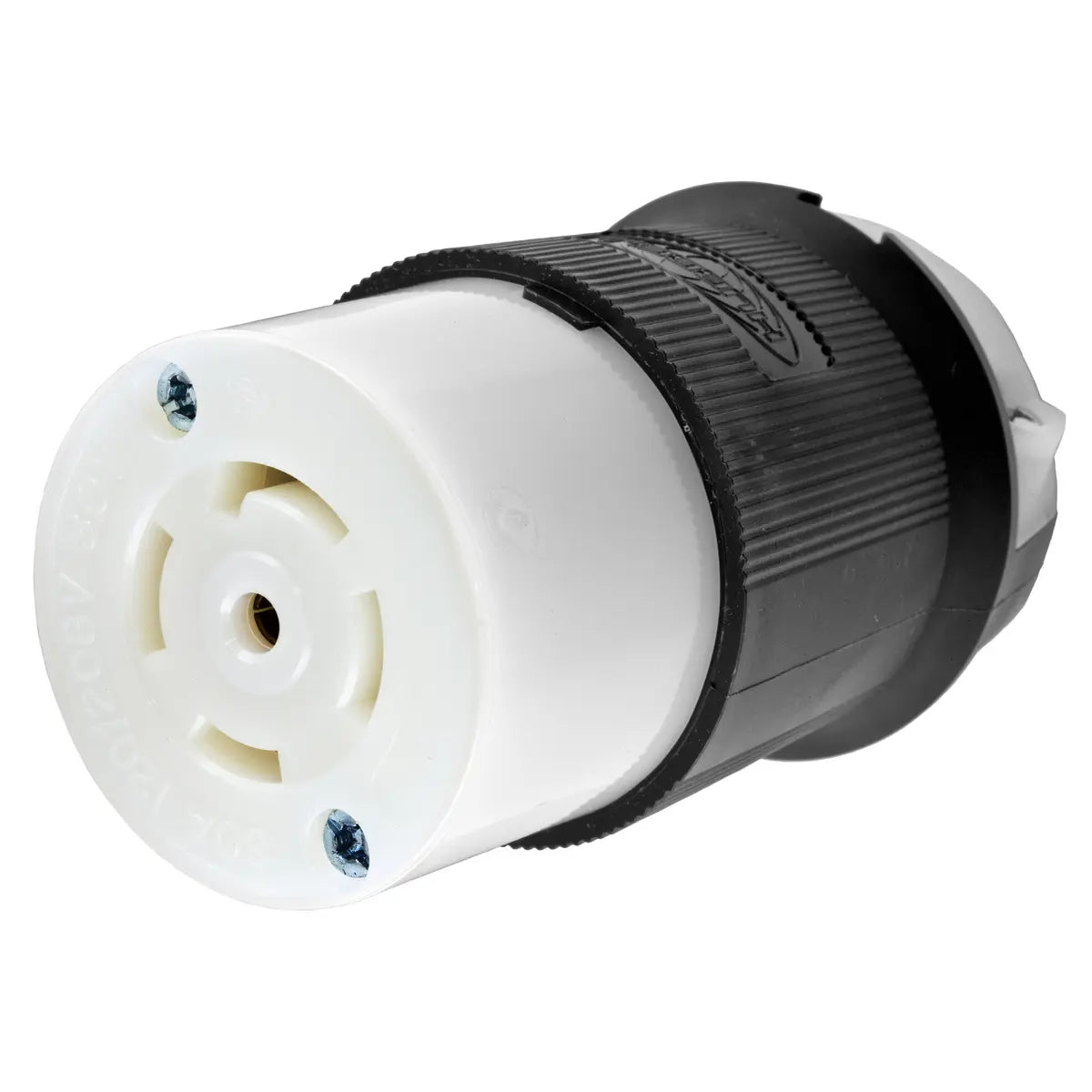

Locking Devices, Twist-Lock®, Insulgrip® Connector, 30A, 3 Phase Y 120/208V AC; 4 Pole, 5 Wire Grounding, NEMA L21-30R, Black and white nylon

GENERAL SPECIFICATIONS

Catalog Number	HBL2813
Color	Black, White
Cord Range	0.350"-1.150" (9-29)
Environmental Conditions	Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator	Yes
Insulation	Insulated Body
Item Type	30A Insulgrip® Connector
Listings	UL 498; Fed.Spec. W-C-596; CSA C22.2 No.42
Material	Nylon
Material - Mounting Hardware	Cord Mounted
OEM Brand Name	Hubbell Wiring Device-Kellems
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Performance	Electrical-Current Interrupting - Certified at full rated current Electrical - Dielectric Voltage - 2,000V minimum Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
Specifications	Assembly Screws - Steel - nickel plated Contacts - Brass Housing / Cord Clamp - Nylon Terminal Clamp - Cold rolled steel – nickel plated Terminal Retainer - Clear polycarbonate Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
UPC	783585039657



Dimensions

Dimensions	2.33 in x 2.33 in x 3.86 in
Display Size	Standard
Height	3.86 in
Length	2.33 in
Weight	0.4 lb
Width	2.33 in



Electrical Ratings

Amperage Rating	30 A
Connectivity	Pressure Terminal Screws
Current / Amperage Rating	30 A
Current Rating	30 A
Dielectric Strength	Withstands 2,000V minimum
Phase	3 Phase WYE
Voltage Rating	120/208 VAC
Voltage Rating Description	120/208 VAC



Conductor Related

Number Of Poles	4-Pole
Number Of Wires	5-Wire Grounding
Wire Size	#16 AWG to #8 AWG



Operational

Operating Temperature

Maximum continuous 75°C and minimum -40°C without Impact

Performance

Electrical-Current Interrupting - Certified at full rated current Electrical - Dielectric Voltage - 2,000V minimum Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)

Logistics

Carton Quantity	30
Pallet Quantity	2880
