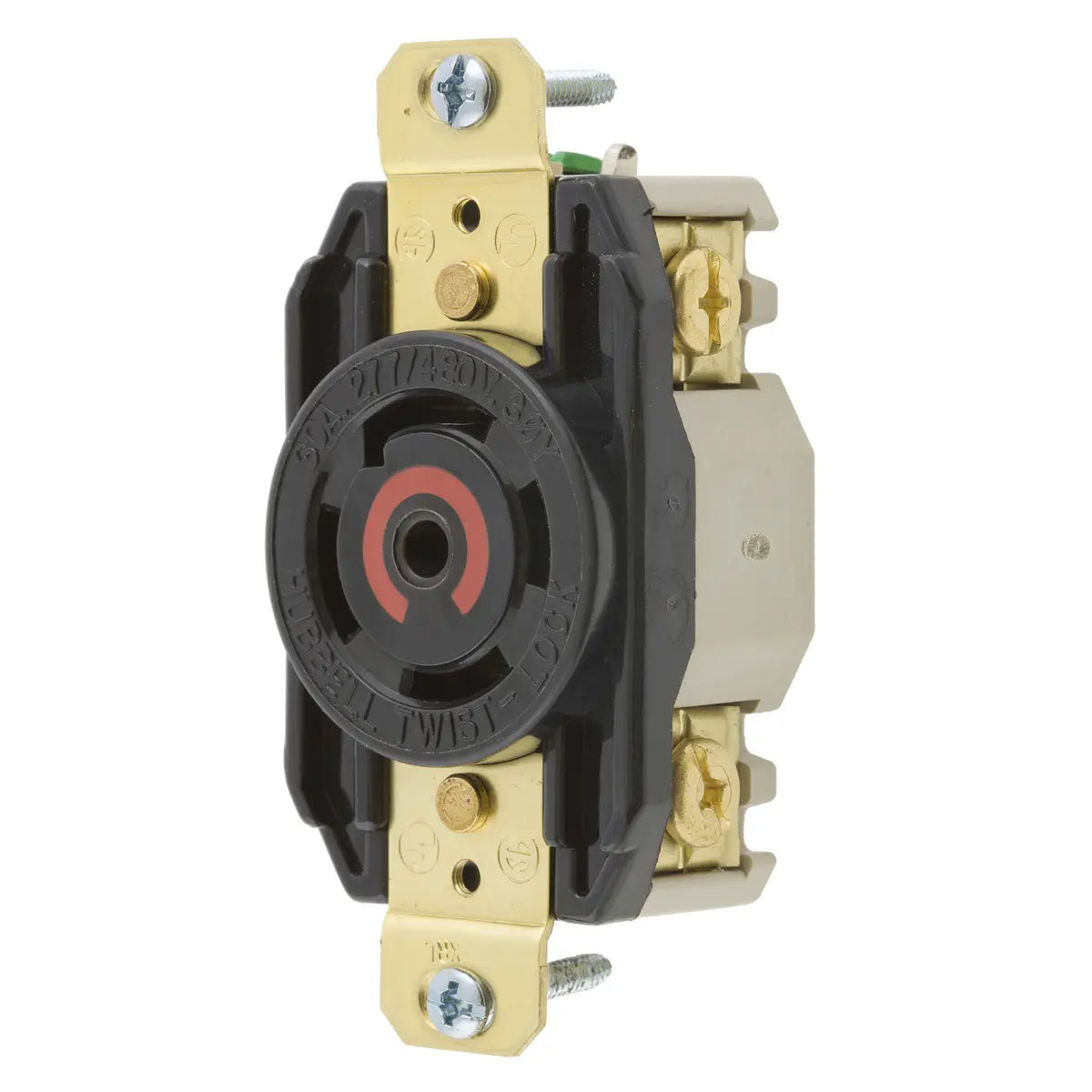

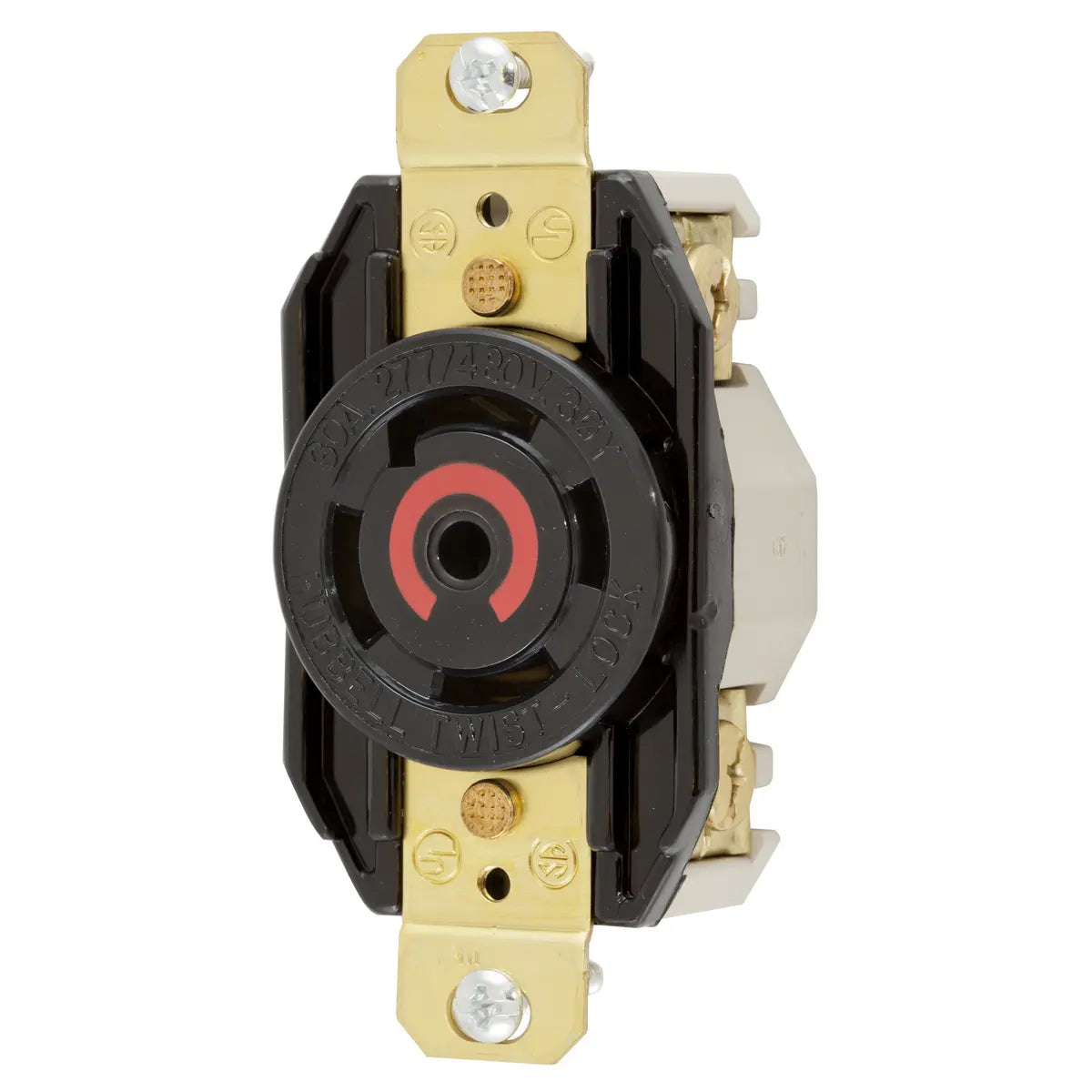

HBL2820 - Hubbell Wiring Device Kellems - 30A Receptacle Twist Lock Locking Device
Locking Devices, Twist-Lock(R), Industrial, Flush Receptacle, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, L22-30R, Screw Terminal, Black
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Standard
GENERAL SPECIFICATIONS
| Catalog Number |
HBL2820 |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
10 |
| Item Type |
Single Flush Receptacles |
| Material |
Nylon |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Base - Glass-Reinforced thermoplastic polyester (RTP)
- Contacts - Brass
- Housing / Flange - Nylon
- Mounting Strap - Brass
- Terminal Screws - #10 - 32 Brass
|
| Type |
Single Flush Receptacle |
| UPC |
783585236261 |
Dimensions
| Dimensions |
3.28 in x 1.7 in x 1.23 in |
| Display Size |
Standard Sized Product |
| Height |
1.23 in |
| Length |
3.28 in |
| Weight |
0.3 lb |
| Width |
1.7 in |
Electrical Ratings
| Amperage Rating |
30 A |
| Connectivity |
Back and Side Wired Screw Terminals |
| Current / Amperage Rating |
30 A |
| Current Rating |
30 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
3 Phase WYE |
| Voltage Rating |
3 Phase WYE 277/480 VAC |
| Voltage Rating Description |
3 Phase WYE 277/480 VAC |
Conductor Related
| Number Of Poles |
4-Pole |
| Number Of Wires |
5-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Operational
| Horsepower - Maximum |
10 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
2520 |
PRODUCT DATASHEET
Wiring HBL2820 Specification Sheet
