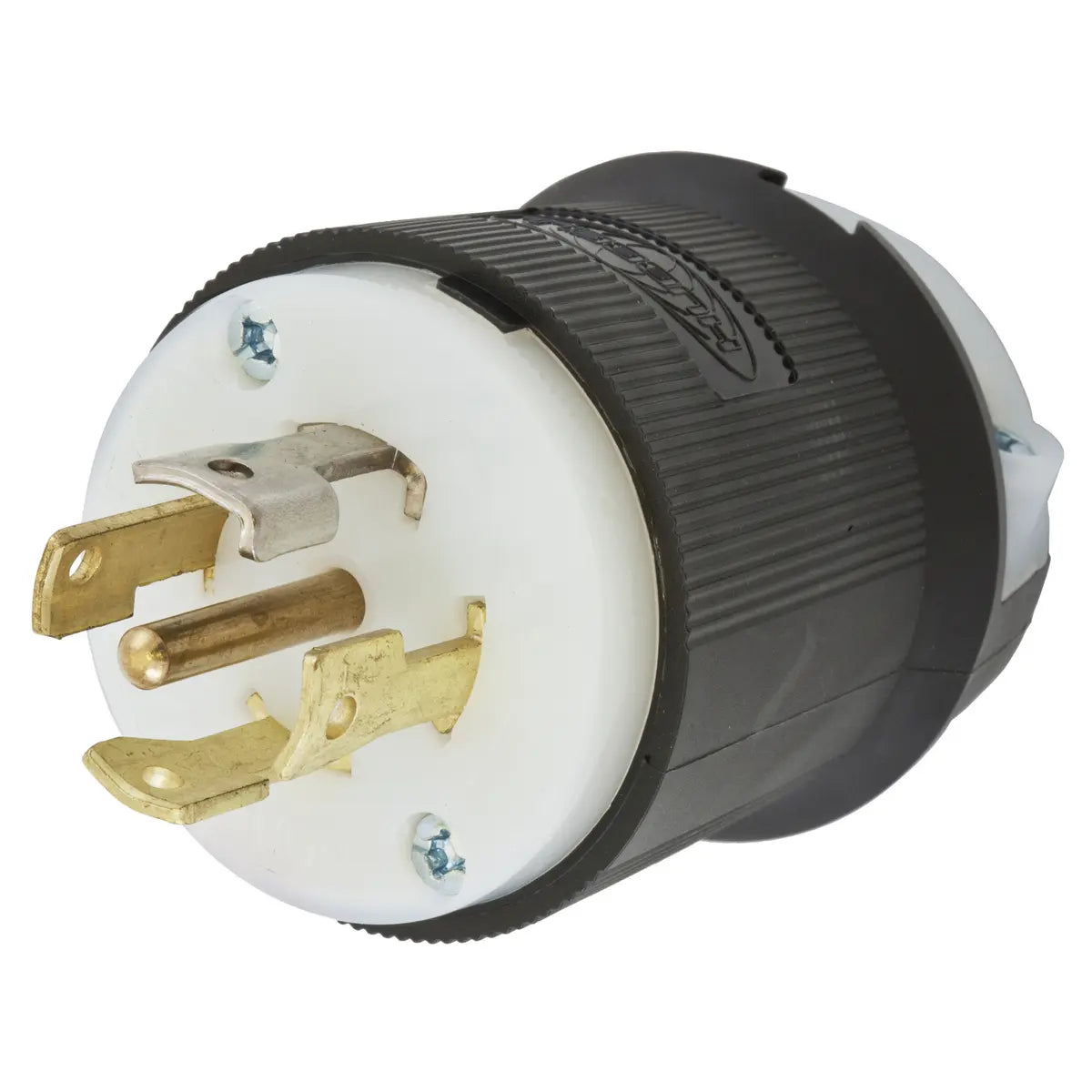

HBL2821 - Hubbell Wiring Device-Kellems - 30A Male Plug Twist Lock Locking Device

HBL2821 - Hubbell Wiring Device-Kellems - 30A Male Plug Twist Lock Locking Device

Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 3-Phase 277/480V AC, 4-Pole 5-Wire Grounding, L22-30P, Screw Terminal, Black and White

GENERAL SPECIFICATIONS

Catalog Number	HBL2821
Color	Black, White
Cord Range	0.350"-1.150" (9-29)
Environmental Conditions	Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator	Yes
Horsepower - Maximum	10
Item Type	30A Grounding Insulgrip® Plug
Material	Nylon
Material - Mounting Hardware	Cord Mounted
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Performance	Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications	Assembly Screws - Steel - nickel plated Blades - Brass Housing / Cord Clamp - Nylon Terminal Clamp - Cold rolled steel – nickel plated Terminal Retainer - Clear polycarbonate Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
Type	Plugs
UPC	783585039695



Dimensions

Dimensions	2.33 in x 2.33 in x 2.75 in
Display Size	Standard Sized
Height	2.75 in
Length	2.33 in
Weight	0.35 lb
Width	2.33 in



Electrical Ratings

Amperage Rating	30 A
Connectivity	Pressure Terminal Screws
Current / Amperage Rating	30 A
Current Rating	30 A
Dielectric Strength	Withstands 2,000V minimum
Phase	3 Phase WYE
Voltage Rating	3 Phase WYE 277/480 VAC
Voltage Rating Description	3 Phase WYE 277/480 VAC



Conductor Related

Cable Range	0.350 - 1.150 in
Number Of Poles	4-Pole
Number Of Wires	5-Wire
Wire Size	#16 AWG to #8 AWG



Operational

Horsepower - Maximum	10
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Performance	Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498



Configuration

Cord Type

All Listed Portables



Logistics

Carton Quantity	30
Pallet Quantity	2880



PRODUCT DATASHEET

Wiring HBL2821  Specification Sheet
