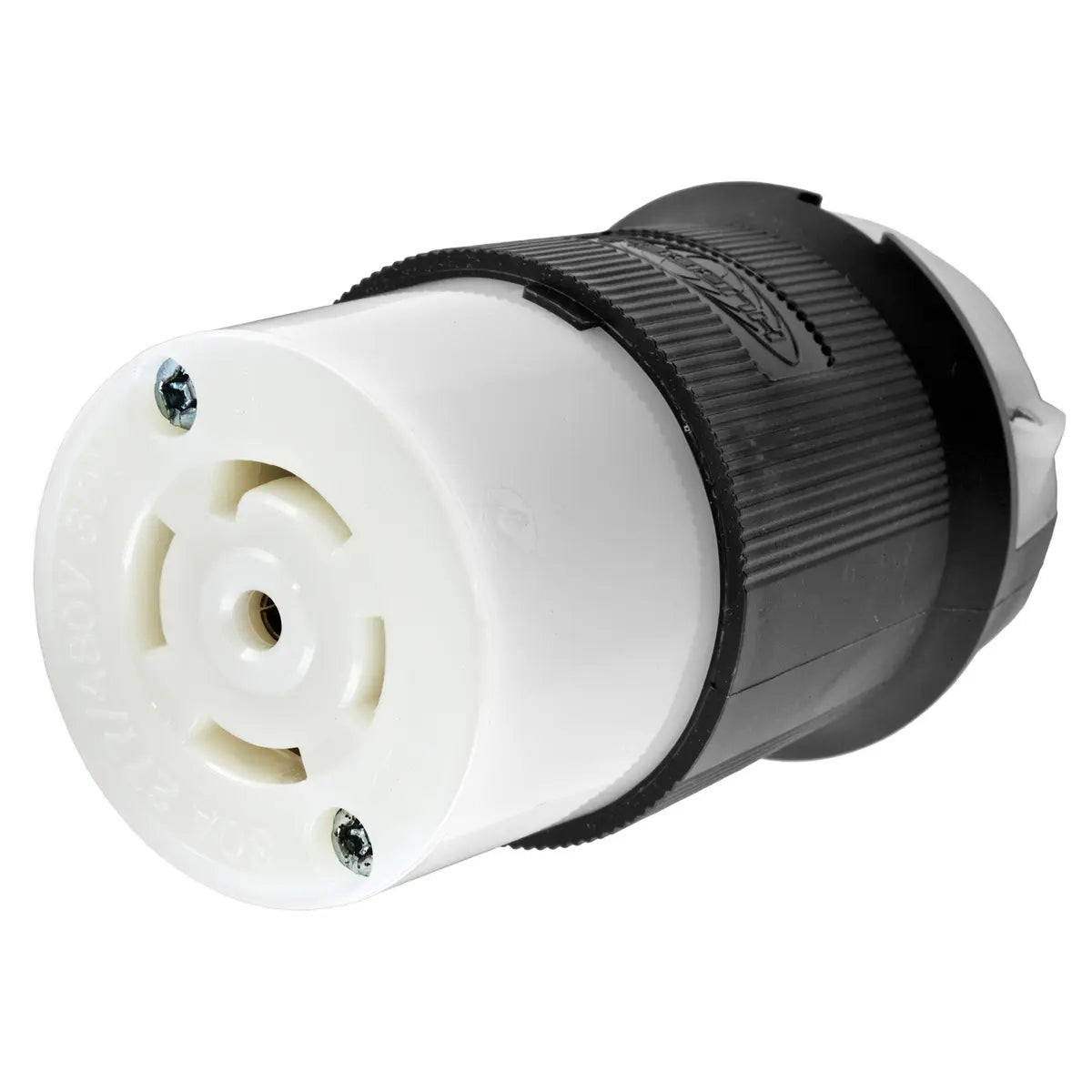

HBL2823 - Hubbell Wiring Device Kellems - 30A Female Connector Twist Lock Locking Device
Locking Devices, Twist-Lock(R), Industrial, Female Connector Body, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, L22-30R, Screw Terminal, Black and White
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL2823 |
| Color |
Black, White |
| Cord Range |
0.350"-1.150" (9-29) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Insulation |
Insulated Body |
| Item Type |
30A Grounding Insulgrip(R) Connector |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Assembly Screws - Steel - nickel plated
- Contacts - Brass
- Housing / Cord Clamp - Nylon
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
|
| Type |
Connector Body |
| UPC |
783585039701 |
Dimensions
| Dimensions |
2.33 in x 2.33 in x 3.86 in |
| Display Size |
Standard |
| Height |
3.86 in |
| Length |
2.33 in |
| Weight |
0.4 lb |
| Width |
2.33 in |
Electrical Ratings
| Amperage Rating |
30 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
30 A |
| Current Rating |
30 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
3 Phase WYE |
| Voltage Rating |
3 Phase WYE 277/480 VAC |
| Voltage Rating Description |
3 Phase WYE 277/480 VAC |
Conductor Related
| Cable Range |
0.350 - 1.150 in |
| Number Of Poles |
4-Pole |
| Number Of Wires |
5-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Operational
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Logistics
| Carton Quantity |
30 |
| Pallet Quantity |
2880 |
