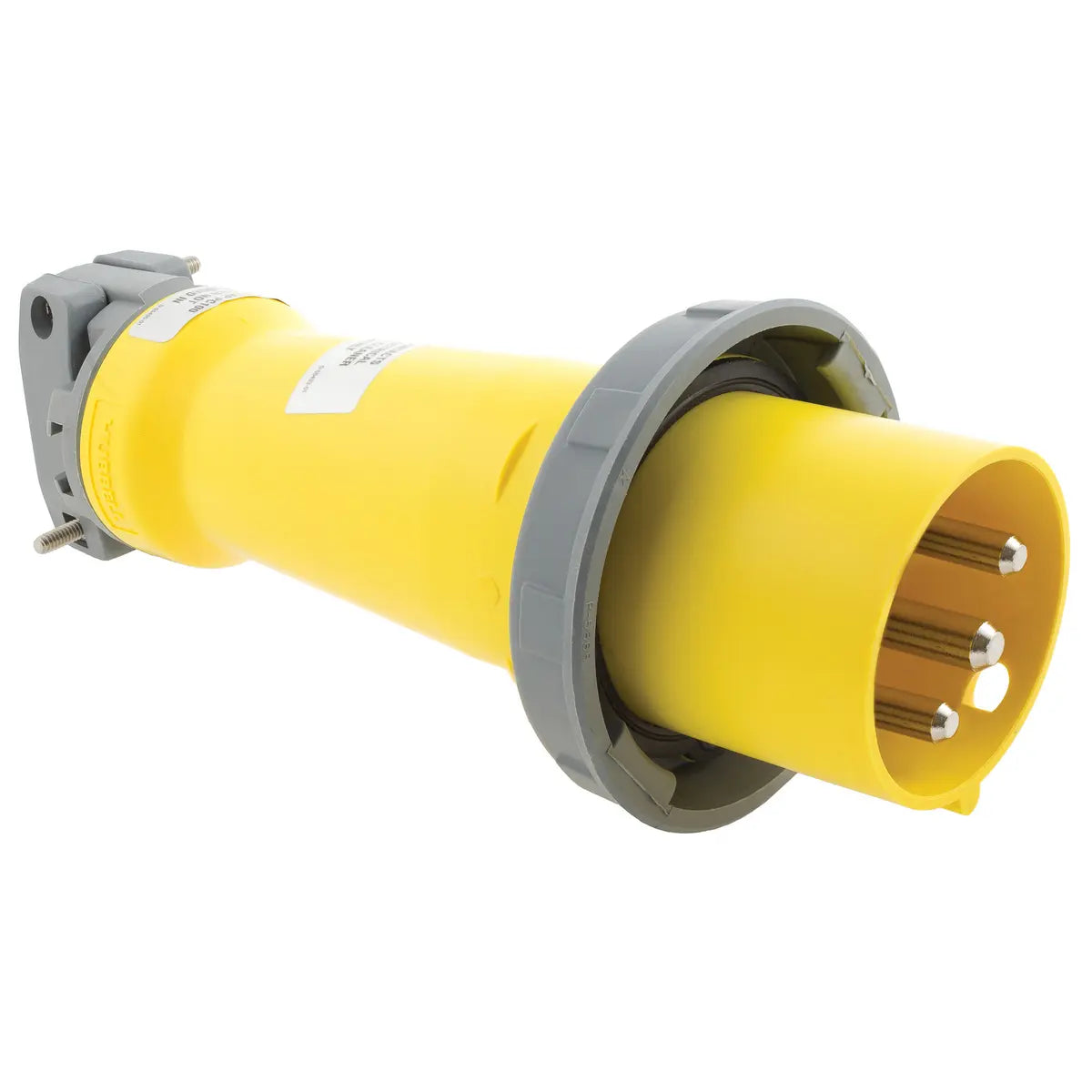

HBL320P4W - Hubbell Wiring Device-Kellems - 20A Connector Twist Lock Locking Device
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 20A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Yellow , Watertight
Watertight Devices - Hubbell's IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL(R) series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell's horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting "line of sight" disconnecting means.
- Solid one-piece pins machined from solid brass
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
Watertight
GENERAL SPECIFICATIONS
| Application |
High Ampacity Connections |
| Catalog Number |
HBL320P4W |
| Color |
Yellow |
| Environmental Conditions |
Watertight |
| EU RoHS Indicator |
Yes |
| Item Type |
Male Plug |
| Material |
Composite |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - 3000V AC
- Electrical - Max. Working Voltage - 600V RMS
- Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17
- Environmental - Ingress Protection - IP67 Suitability
- Environmental - Moisture Resistance - Watertight per IEC 60309-1
- Environmental - Operating Temperatures - Maximum Continuous 75 degC
- Minimum - 40 degC w/o impact
- Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682
- Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing
- Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
|
| Series |
HBL Heavy Duty |
| Specifications |
- Cord Clamp - Reinforced Thermoplastic Polyester
- Housing - Zytel(R) ST801 Nylon
- Locking Ring - Reinforced Thermoplastic Polyester
- Retainer - High-Impact Thermoset
- Sealing Gasket - Solid Neoprene
|
| Style |
Standard Service |
| Type |
Watertight Plug |
| UPC |
783585403366 |
Dimensions
| Display Size |
Standard Size |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 VAC |
Conductor Related
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#14 AWG to #10 AWG |
Operational
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - 3000V AC
- Electrical - Max. Working Voltage - 600V RMS
- Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17
- Environmental - Ingress Protection - IP67 Suitability
- Environmental - Moisture Resistance - Watertight per IEC 60309-1
- Environmental - Operating Temperatures - Maximum Continuous 75 degC
- Minimum - 40 degC w/o impact
- Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682
- Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing
- Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
|
Configuration
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
550 |
PRODUCT DATASHEET
Wiring HBL320P4W Specification Sheet
