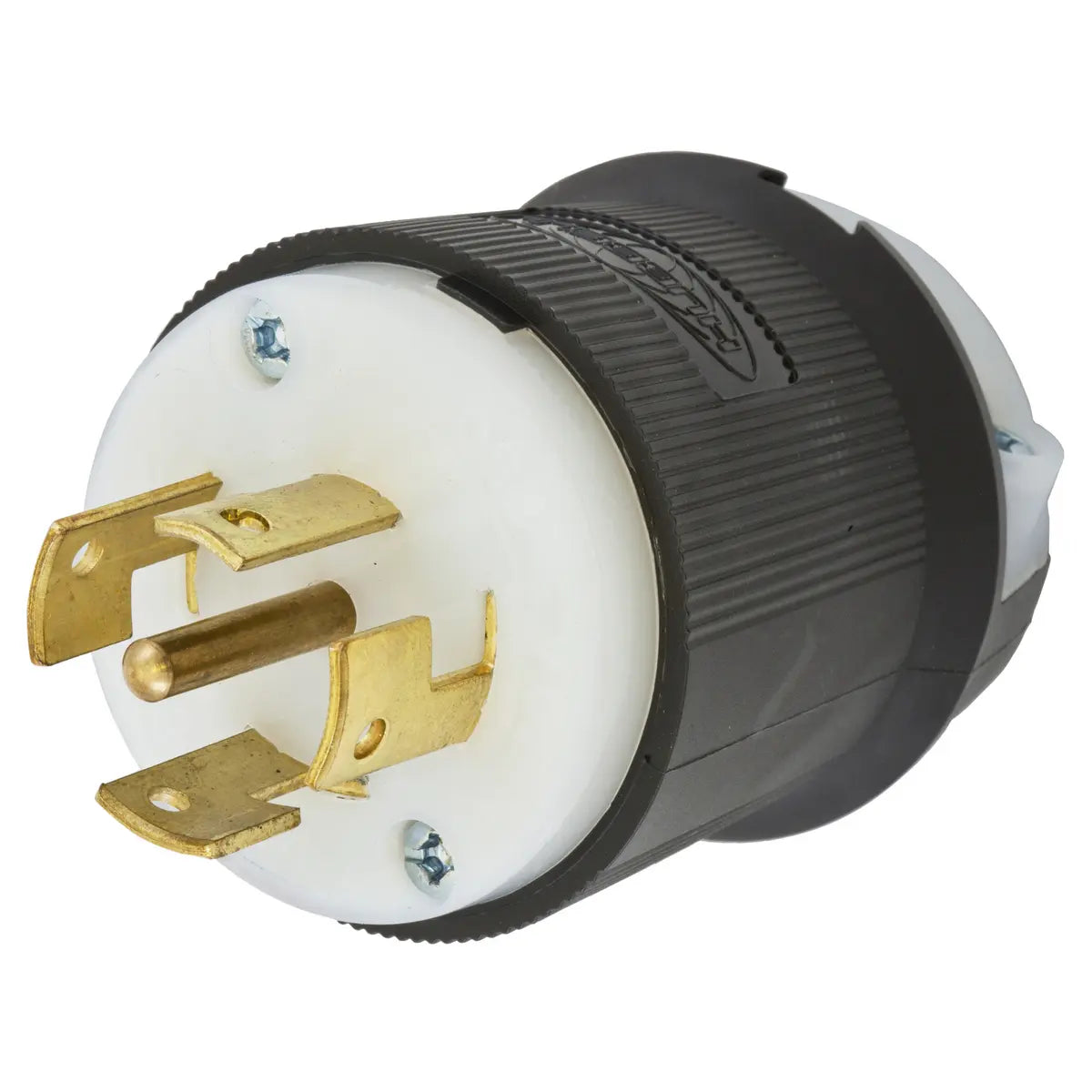

HBL3521C Hubbell Wiring Device-Kellems - 20A Male Plug Twist Lock Locking Device
Locking Devices, Twist-Lock(R), Industrial, Male Insulgrip(R) Plug, 20A 250V/10A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black and White nylon.
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL3521C |
| Color |
Black, White |
| Cord Range |
0.350"-1.150" (9-29) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Contact Manufacturer |
| Item Type |
20A/10A Male Insulgrip(R) Plug |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Assembly Screws - Steel - nickel plated
- Blades - Brass
- Housing / Cord Clamp - Nylon
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
|
| Type |
Plugs |
| UPC |
783585039916 |
Dimensions
| Dimensions |
2.33 in x 2.33 in x 2.75 in |
| Display Size |
Standard Sized
|
| Height |
2.75 in |
| Length |
2.33 in |
| Weight |
0.3 lb |
| Width |
2.33 in |
Electrical Ratings
| Amperage Rating |
20/10 A |
| Connectivity |
Screw Terminal |
| Current / Amperage Rating |
20/10 A |
| Current Rating |
10 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Three Phase |
| Voltage Rating |
250/600 VAC |
| Voltage Rating Description |
250/600 VAC |
Conductor Related
| Cable Range |
0.350 - 1.150 in |
| Number Of Poles |
4-Pole |
| Number Of Wires |
5-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Operational
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Configuration
| Cord Type |
All Listed Portables |
Logistics
| Carton Quantity |
30 |
| Pallet Quantity |
3060 |
PRODUCT DATASHEET
Wiring HBL3521C Specification Sheet
